Bidi 1000base SFP Transceiver Module SMF LC DDM 1310nm/1550nm 3km 1.25G
Bidi 1000base SFP SMF LC DDM 1310nm/1550nm 3km 1.25G SFP Module
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .
Features
- Single LC receptacle optical interface compliant
- Hot-pluggable SFP footprint
- 1310nm FP laser transmitter
- RoHS compliant and Lead Free
- Up to 3km on 9/125um SMF
- Metal enclosure for lower EMI
- Single 3.3V power supply
- Low power dissipation <600mW
- Commercial operating temperature range: 0°C to 70°C
Applications
- Gigabit Ethernet
- 1.06 Gb/s Fibre Channel
Electrical Characteristics
| IV. Optical Characteristics (TOP=25°C, Vcc=3.3 Volts) | |||||||
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. | |
| Transmitter | |||||||
| Output Opt. Power | PO | -13 | - | -7 | dBm | 1 | |
| Optical Wavelength | λ | 1290 | 1310 | 1330 | nm | 2 | |
| Spectral Width | σ | - | - | 3 | nm | 2 | |
| Optical Rise/Fall Time | tr/tf | - | 170 | 260 | ps | 4 | |
| Deterministic Jitter Contribution | TXΔDJ | - | 20 | 56.5 | ps | 5 | |
| Total Jitter Contribution | TXΔTJ | - | 50 | 119 | ps | ||
| Optical Extinction Ratio | ER | 9 | - | - | dB | ||
| Receiver | |||||||
|
Average Rx Sensitivity @ 1.25 Gb/s (Gigabit Ethernet) |
RSENS2 | - | - | -24 | dBm | 6, 7 | |
|
Average Rx Sensitivity @ 1.06 Gb/s (1X Fibre Channel) |
RSENS1 | - | - | -25 | dBm | 6, 7 | |
| Maximum Received Power | RXMAX | 0 | dBm | ||||
| Optical Center Wavelength | λC | 1480 | - | 1580 | nm | ||
| LOS De-Assert | LOSD | - | - | -25 | dBm | ||
| LOS Assert | LOSA | -36 | - | - | dBm | ||
| LOS Hysteresis | 0.5 | - | - | dB | |||
Notes:
- Class 1 Laser Safety.
- Also specified to meet curves in FC-PI-2 Rev. 10.0 Figure 18, which allow trade-off between wavelength, spectral width.
- Equivalent extinction ratio specification for Fibre Channel. Allows smaller ER at higher average power.
- Unfiltered, 20-80%. Complies with IEEE 802.3 (Gig. E) and FC 1x eye masks when filtered.
- Measured with DJ-free data input signal .In actual application, output DJ will be the sum of input DJ and ΔDJ.
- Measured with conformance signals defined in FC-PI-2 Rev. 10.0 specifications.
Measured with PRBS 27-1 at 10-12 BER .

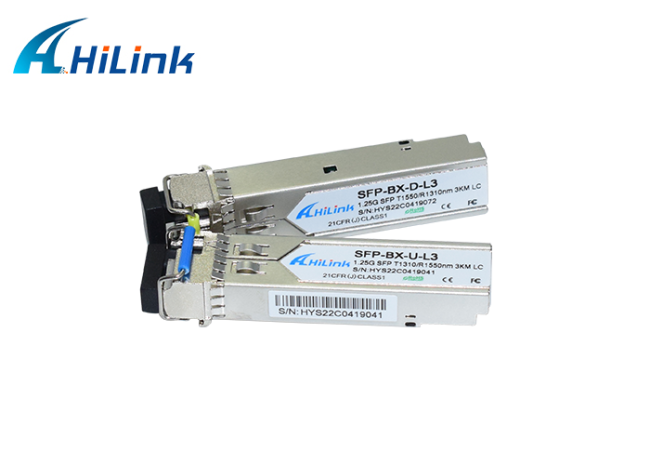

Real Picture
