40G QSFP+ To 4 SFP+ Breakout AOC Cable 40G Infiniband SDR DDR QDR Support
40G QSFP+ To 4 SFP+ Breakout AOC Cable 40G Infiniband SDR DDR QDR Support
Hilink's QSFP+ to 4xSFP+ 10G active optical cables are suitable for very short distances and offer a very cost-effective way to establish a 40-gigabit link between QSFP ports to SFP+ 4 ports of switches within racks and across adjacent racks.
| Item No. | HL-QSFP-40G-AOC | Vendor Name | Hilink |
| Form Type | QSFP to 4 SFP+ | Max Data Rate | 40Gbps |
| Cable Type | MMF | Max Cable Distance | 100M |
| Wavelength | 850nm | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Features
- Hot pluggable
- Connector 1: QSFP+
- Connector 2: 4 x SFP+
- Data Rate: 40GBASE
- Low Power Consumption
- Metal enclose for lower EMI
- Single 3.3V power supply
- Operating Temperature: 0~70℃
- Humidity: 5%~95%
- QSFP+ MSA SFF-8436 CompliantSFP+ MSA SFF-8431/8432 Compliant
- RoHS Compliant
- Length:1m / 2m / 3m / 4m / 5m / 7m / 10m / 20m / 30m / 50m / 100m or others (OM2, OM3 available)
Applications
- High Performance Computing Clusters
- 40G/4x10G Ethernet Applications
- 4x Infiniband, SDR, DDR, QDR
- Servers, Switches, Storage, and
- Network Interference Cards (NICs)

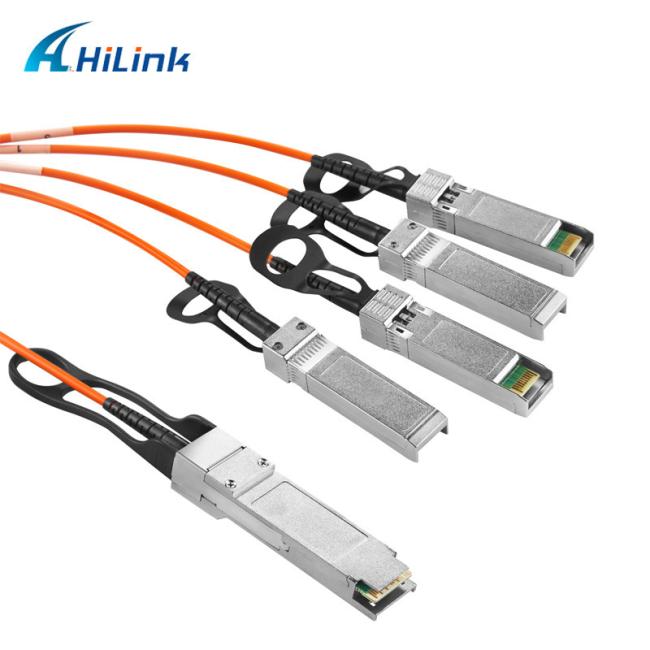

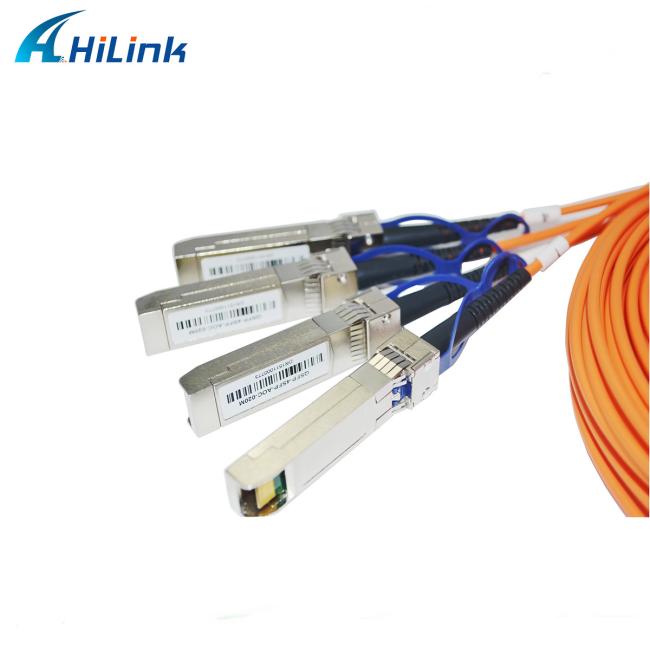

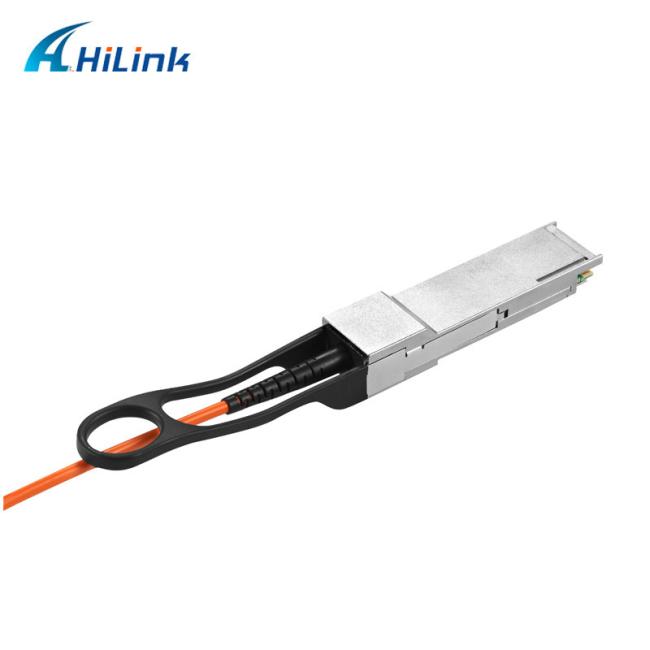

Details Images
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
