40G-Base QSFP+ To 8xLC SR4 Active Optical Breakout Cable MSA Compliant 40G AOC

Hilink's QSFP+ to 8xLC active optical cables are suitable for short distances and offer a very cost-effective way to establish a 40-gigabit link between QSFP ports to switches within racks and across adjacent racks.

Features

•  Four channel, full-duplex assembly
•  Operating data rate up to 10.3Gbit/s per channel
•  850nm VSCEL transmitter array
•  Power consumption <1.5W
•  Maximum length of 300m on OM3 and 400m on OM4 fibre
•  Single 3.3V Power Supply and TTL Logic Interface
•  Hot-pluggable QSFP+ footprint
•  8x LC connectors arranged in 4 duplex groups
•  DDM integrated – MSA compliant digital diagnostic interface
•  IEEE P802.3ba 40GBASE-SR4 compliant
•  Operating Case Temperature:
•  Standard: 0°C~+70°C

Applications

•  40G Ethernet
•  InfiniBand SDR, DDR and QDR
•  High speed interconnections
•  Datacentre ToR connections

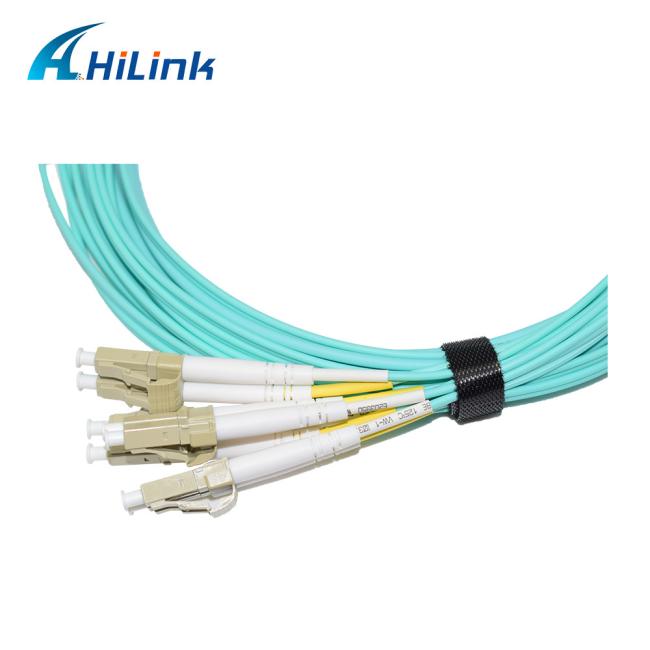

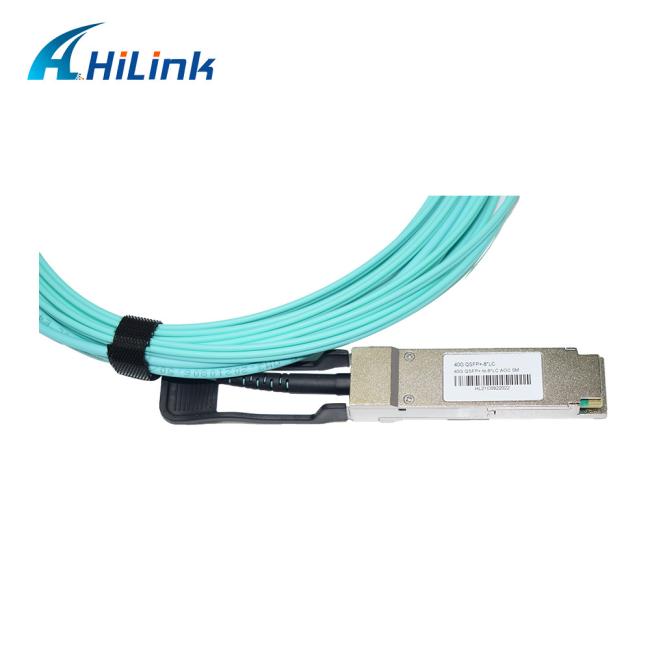

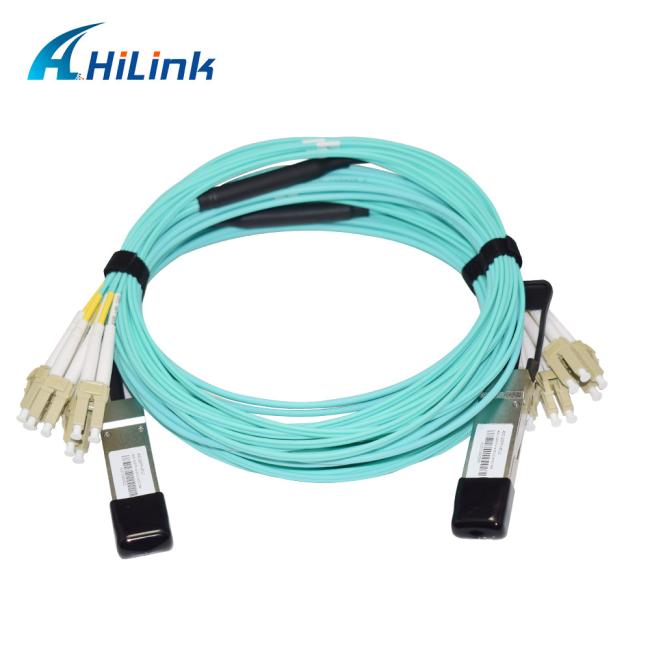

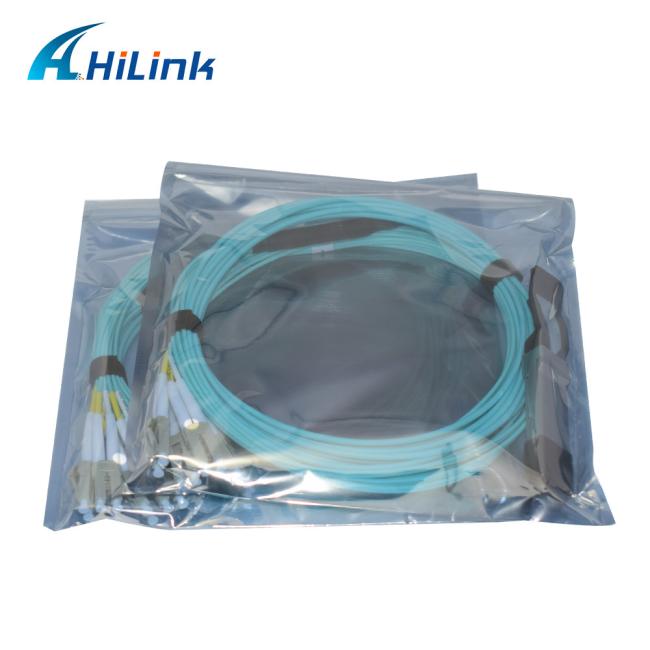

Details Images

Hilink Advantages

1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
