Standard 19" 1U/2U/5U X 4 Slots Chassis Optical Transport Network Equipment
Standard 19" 1U/2U/5U x 4 Slots Chassis Optical Transport Network Equipment
Hilink's compact, high-capacity, low-cost OTN optical transmission system which introduced by HTF. It adopts CWDM / DWDM common platformdesign, supports multi-service transparent transmission, and has flexible networking and access capabilities. Applicable to the national backbone network, provincial backbone network, metro backbone network and other core networks, to meet the needs of large-capacity nodes above 1.6T, is the industry's most cost-effective transmission application platform. Build a large-capacity WDM transmission expansion solution for IDC and ISP operators.
Features
* Maximum support 96ch
* Single channel rate up to 200Gbps,* support 10G/100G/200Gmixed transmission
* Smooth network upgrade
* Remote management with OSC
* Real-time online monitoring, fast fault location
* Fully visual interface
* Support wavelength adjustable,
* Support eye protection
* Management card automatic identification service card
* Service card automatically stores operational and fault information
* Service card supports online upgrade
* Channelside supports 1+1 protection
* Multiplex side supports 1+1 protection
* Power supply supports 1+1 dual power supply redundancy protection
Multi Services
* IP:GE/10GE/100GE/200GE
* FC:1/2/4/8/10Gbps
* SDH:STM-1/4/16/64
* CPRI:1/2/3/4/5/6/7
Specifications
| Name | Description | |
| Transmission Capacity | 96x10Gbps /96x100Gbps | |
| Network Management Unit | EMS network management disk | |
| OTU | Support 1 .25G ~10Gbps, 100Gbps ➢1/2/4/8/10Gbps Fibre Channel ➢CPRI: 2/3/4/5/6/7 ➢1G/10G Ethemnet L AN or WAN PHY ➢STM 4/16/64 SONET/SDH |
|
| MUX/DEMUX | Support 8ch/16ch/40ch/48ch | |
| EDFA | EDFA erbium doped fiber amplifier | |
| DCM | DCM:G 652/G655 Dispersion compensation fiber module | |
| OLP | OLP Optical Protection | |
| Size | Services Card | 191 (W) x253(D)x20(H ) mm |
| 1U 4 slot Chassis | 482.5(W )x 350(D) x44.5(H ) mm | |
| 2U 8-slot Chassis | 482.5(W )x 350(D) x89( H ) mm | |
| 5U 20-slot Chassis | 482.5(W )x 350(D) x222.5( H ) mm | |
| Environment | Operating Temperature | -10C ~ 60C |
| Storage Temperature | -40C ~ 80C | |
| Relative Humidity | 5% ~ 95% Non-condensing | |
| Power Supply Mode | Dual power supply, AC220V/DC 48V optional | |
| Power Consumption | 1U <120W, 2U<200W, 5U<400W | |

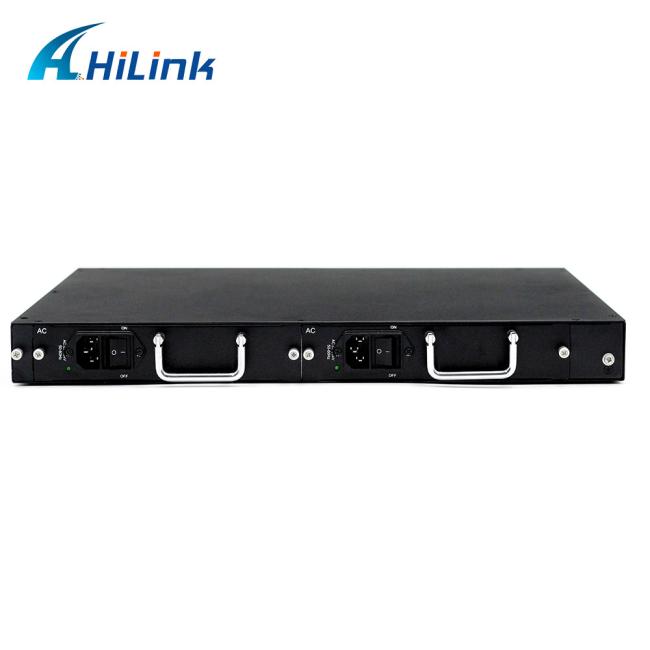

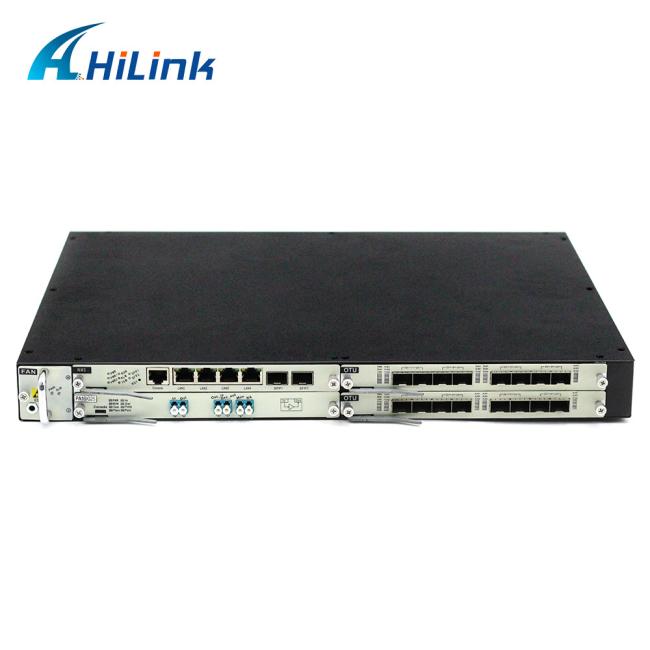

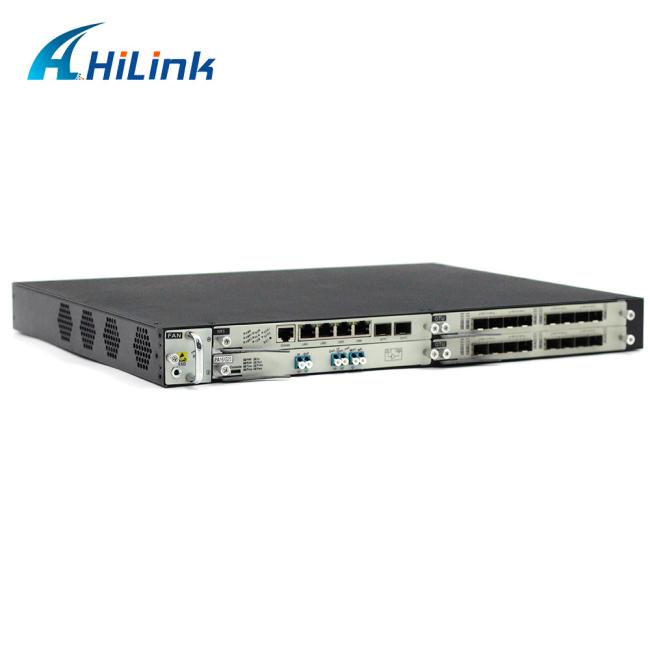

Details Images
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
