10/100/1000BASE Brisging Converter 4-Port 10/100/1000M UTP Ports 2-Port SFP Slot TX
10/100/1000BASE 4-port 10/100/1000M UTP Ports 2-port SFP Slot TX To 1000BASE-FX Brisging Converter
DESCRIPTION:
4-Port Gigabit Ethernet Switch is equipped with 4-port 10/100/1000M UTP ports and 2-port 1000M FX(SFP) slot. End user may choose different 1000M SFP module according to his demand, such as 1000Base T,1000Base-SX or 1000Base-LX etc. The product is of compact size, stable performance, excellent quality. It is widely applied in small or medium Optical Fiber Ethernet network.
FEATURERS:
Switch Ethernet signals among 10/100/1000M UTP ports (T) and 1000M Optical Fiber Interfaces (X)
Auto negotiation function, supports UTP ports 10/100/1000M and Full Duplex/Half Duplex
auto-negotiation
SFP slot supports 1000M and Full Duplex mode.
Supports flow control and broadcast storm protection.
Supports QoS.
Supports max 10K bytes frame.
Low power consume (6W), low heat, and good reliability.

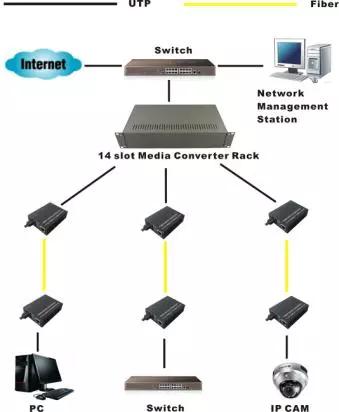

APPLICATION:
SPECIFICATION:
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3z/AB,10/100/1000Base-T and 1000Base-SX/LX |
| Transmission distance |
Cat.5 or 6 UTP(the max distance up to 100M) Multimode Fiber:50/125,62.5/125μm (the max distance up to 224/550m) Single-mode Fiber:8/125,8.7/125,9/125μm (the max distance up to 10~100 km) |
| Port | UTP:RJ-45,10/100/1000Mbps; FX(SFP )slot:1000Mbps |
| Dimension | 160mm(L) x 90mm(W) x 26mm(H) |
| Power Supply | AC110-220V TO DC5V 1A |
| Humidity | 5%~90% |
| Ambient Temperature | 0~+50ºC |
| Storage Temperature | -40~+85ºC |

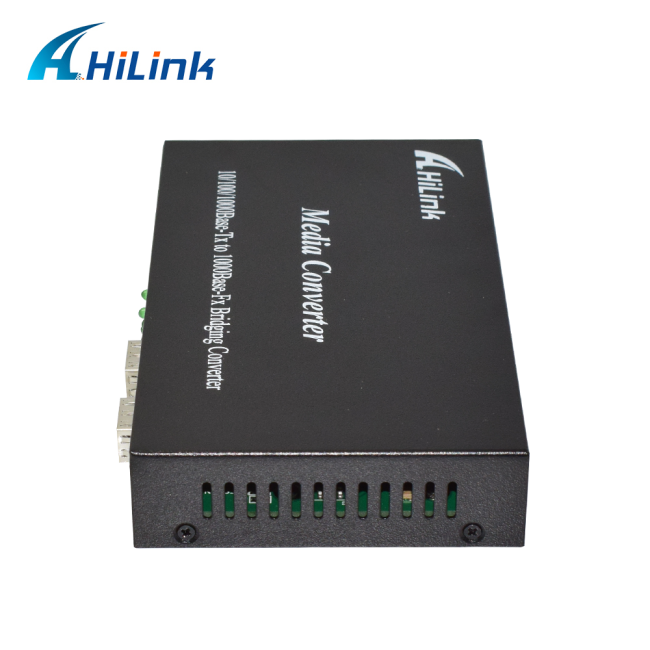

FRONT PANEL DIAGRAM:

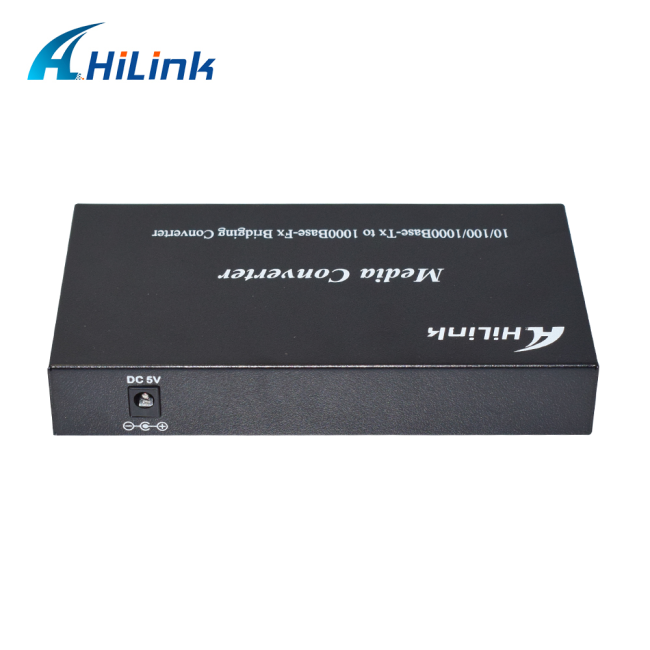

BACK PANEL DIAGRAM:
PRODUCT PICTURE:
SHIPMENT & DELIVERY :
International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
Payment: T / T, Western Union, Paypal and so on.
Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
GUARANTEE :
Brand new.
OEM/ODM is available.
100% through quality test and aging test.
3 years warranty(From the date of shipment).
TECHNICAN SUPPORT :
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
