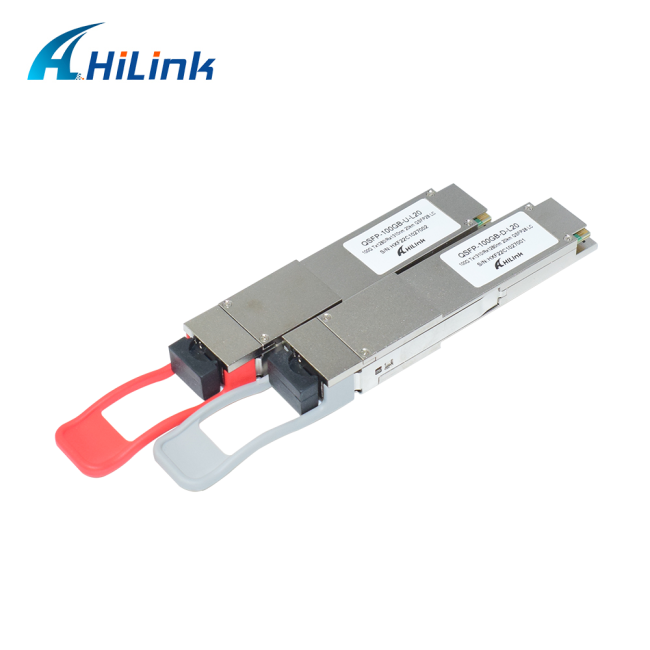

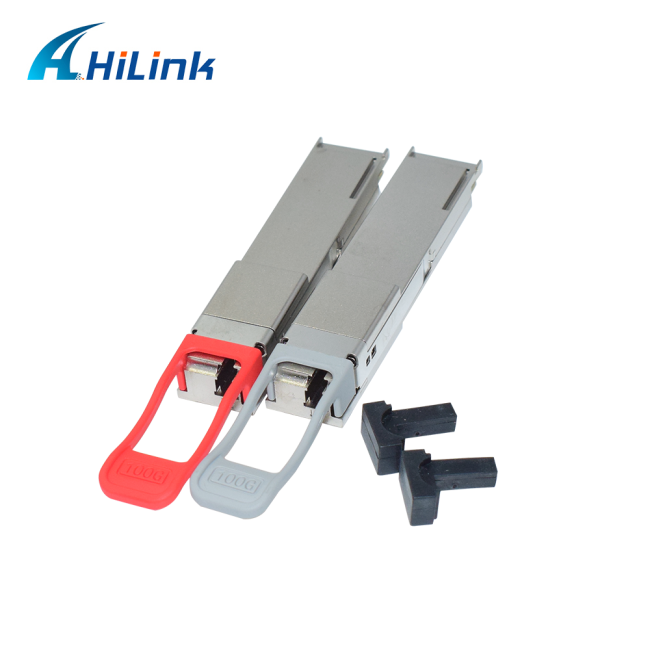

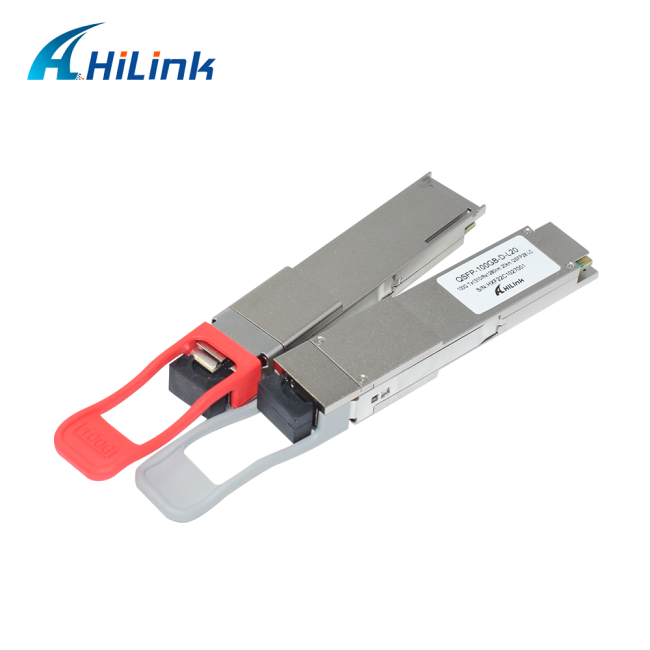

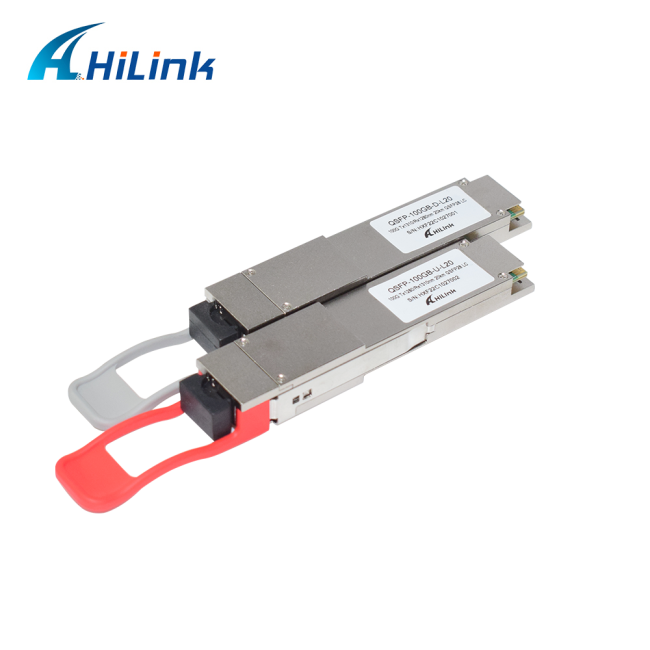

100GBASE-BX20 QSFP28 1310nm 1280nm 20km DOM Simplex LC SMF Optical Transceiver Module

The Compatible QSFP28 transceiver provides 100GBase-BX throughput up to 20km over single-mode fiber (SMF) using a wavelength of 1310nmTx/1280nmRx ,1280nm Tx/1310nm Rx via an LC connector. This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, data center, and storage area networks applications.

Specifications:

Part Number

HLQSFP28-100G-BX20

Vendor Name

HILINK

Form Factor

QSFP28

Max Data Rate

103.1Gbps

Wavelength

1310nm-TX/1280nm-RX

Max Cable Distance

20km

Connector

Simplex LC

Media

SMF

Transmitter Type

DFB

Receiver Type

PIN

TX Power

-4.3~4.5dBm

Receiver Sensitivity

< -14.5dBm

Max Powerbudget

13dB

Receiver Overload

4.5dBm

Power Consumption

≤5W

Extinction Ratio

>4dB

DDM/DOM

Supported

Extended Temperature Range

-20 to 85°C

Protocols

QSFP28 MSA

Warranty

3 Years



OEM and ODM

OEM/ODM order is available.

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
