Optical Fiber 100G 1x8CH MUX DEMUX DWDM 1U Rack Mount For Data Center
Optical Fiber 100G DWDM 1x8CH Mux/Demux price
Description
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:ITU standard
Wide Operating Temperature:From -40°C to 85°C
High Reliability and Stability
Application
DWDM System
PON Networks
CATV Links
Dense WDM System
Compliance
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
Specifications
| Parameter | Unit | Value | |||||
| Central Wavelength | nm | ITU-T Grid | |||||
| Channel Spacing | nm | 0.8 (100GHz) | 1.6 (200GHz) | ||||
| Number of Channels | ---- | 8 | 16 | 8 | |||
| Channel Passband | Min | nm | 0.11 | 0.11 | 0.25 | ||
| Insertion Loss | Ty | dB | 3 | 4 | 3 | ||
| Max | dB | 3.5 | 4.5 | 3.5 | |||
| Ripple | Max | dB | 0.5 | 0.5 | 0.5 | ||
| Channel Uniformity | Max | dB | 1 | 1.5 | 1 | ||
| Isolation | Adjacent Channels | Min | dB | 25 | |||
| Non-adjacent Channels | Min | dB | 40 | ||||
| Directivity | Min | dB | 50 | ||||
| Optical Return Loss | Min | dB | 45 | ||||
| PDL | Max | dB | 0.15 | ||||
| Thermal Stability | Max | dB/°C | 0.007 | ||||
| Thermal Wavelength DriftMax | Max | nm/°C | 0.001 | 0.002 | |||
| Operating Temperature | °C | 0 to 70 | |||||
| Storage Temperature | °C | - 40 to 85 | |||||
| Package Dimension | mm | 140 100 13 | |||||
| Maximum Power Handling | mW | 300 | |||||

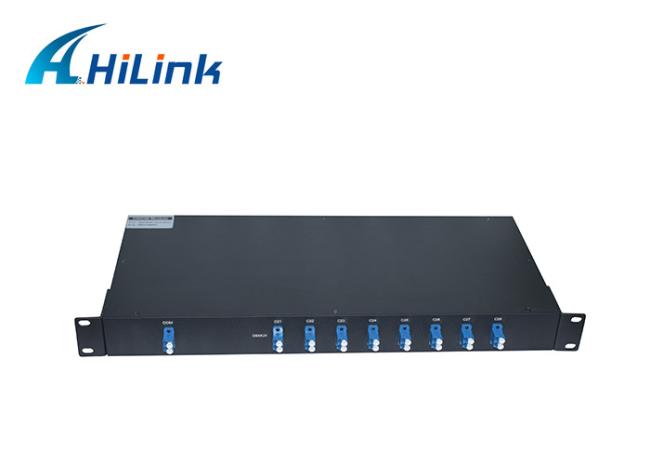

Real Picture
