Single Fiber SFP Transceiver 1.25G 1310/1490nm 40KM SC/LC Simplex WDM Modules
Single Fiber SFP Transceiver 1.25G 1310/1490nm 40KM SC/LC Simplex WDM Modules
Hilink Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
Features
-
Hot-pluggable SFP footprint
-
Wavelengths : 34/43 : Tx1310nm/Rx1490nm ; Tx1490nm/Rx1310nm
-
35/53 : Tx1310nm/Rx1550nm ; Tx1550nm/Rx1310nm (Optional)
-
Single LC/SC receptacle optical interface compliant
-
1310nm FP laser transmitter；1490nm DFB laser transmitter
-
RoHS compliant and Lead Free
-
Up to 40km on 9/125um SMF
-
Metal enclosure for lower EMI
-
Single 3.3V power supply
-
Low power dissipation <600MW
-
Commercial operating temperature range: 0°C to 70°C
Details
| Item No. | WDM-SFPXX-20 | Vendor Name | Hilink |
| Form Type | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 1310/1490nm | Max Cable Distance | 40KM |
| Interface | LC/SC simplex | Optical Components | DFB |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | -3~2dBm | Receiver Sensitivity | <-25dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)
* Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
-
Gigabit Ethernet
-
1.06 Gb/s Fibre Channel

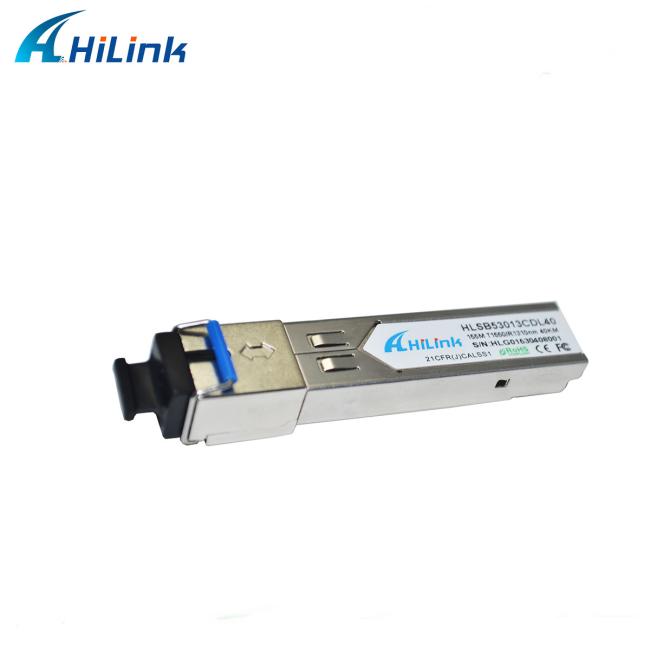

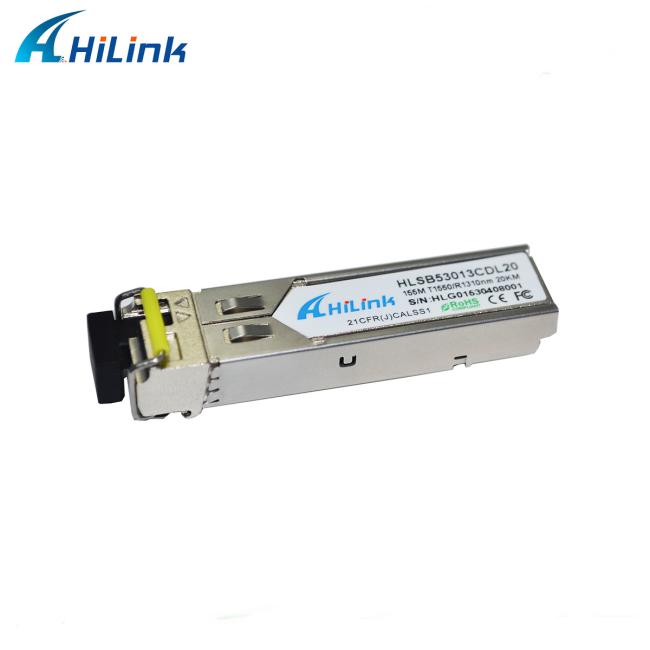

Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
