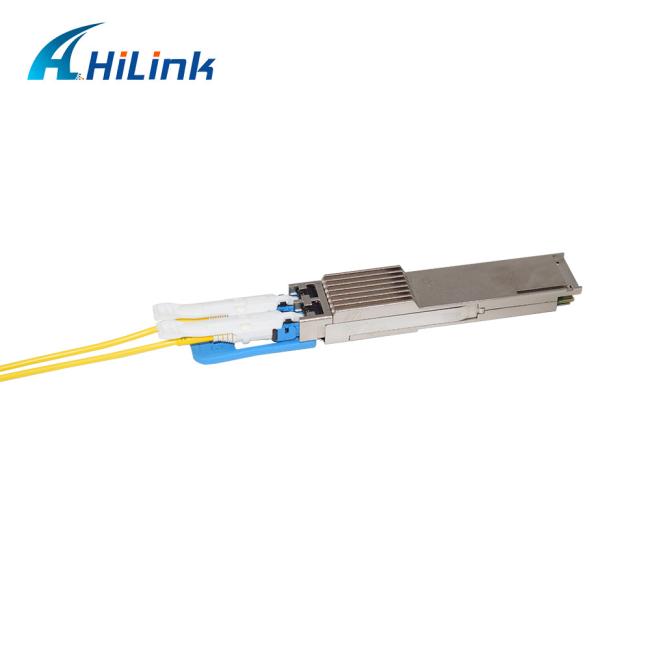

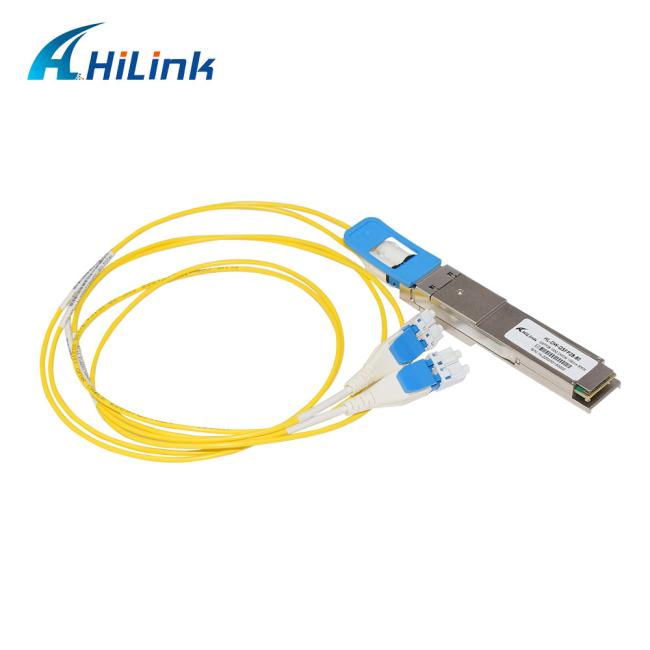

Hilink 100G QSFP28 Transceiver 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter

Hilink 100G QSFP28 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter Transceiver

Hilink QSFP28 100G PAM4 Optical Transceiver module supports up to 40ch 100G links up to 80km(with EDFA/TDCM) over single-mode fiber (SMF) via a CS duplex connector.

Features

• Hot pluggable QSFP28 MSA form factor
• Up to 80km reach for G.652 SMF with transport white box
• Single +3.3V power supply
• Temperature Range 0 to 70°C

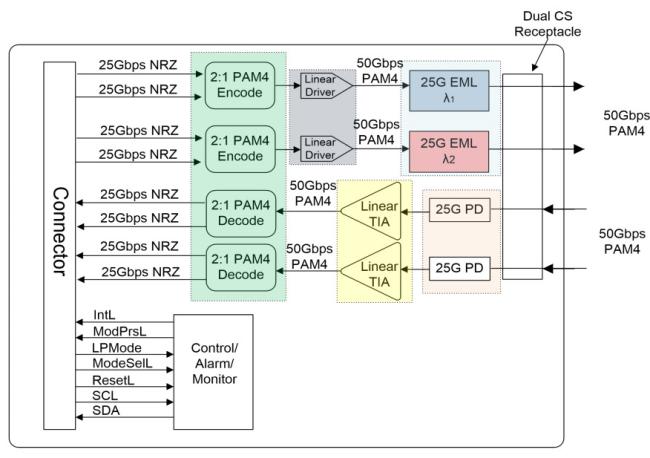

• Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA
• Receiver: 2*27.5Gbaud/s Pin-PD ROSA
• 4*25G CAUI4 electrical interface
• Integrated SFEC with high coding gain
• PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible

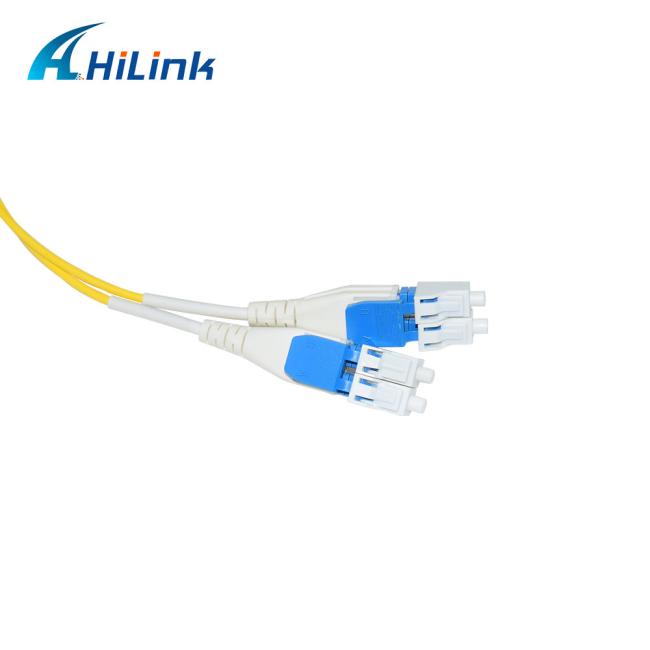

• Dual CS adaptor
• Compatible with RoHS6

Wavelength Table

100G QSFP28 DWDM Solutions

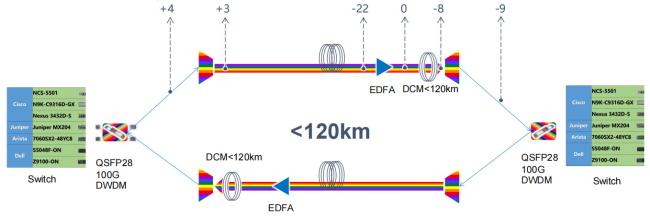

• Passive DWDM MUX 1X100G QSFP28 DWDM 120KM Solution

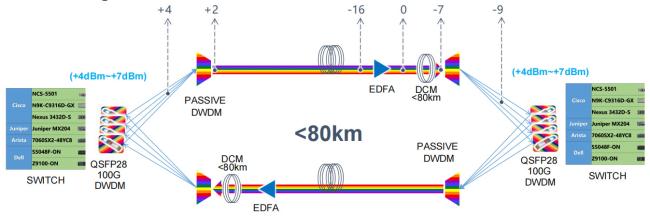

• Passive DWDM MUX 4X100G QSFP28 DWDM 80KM Solution

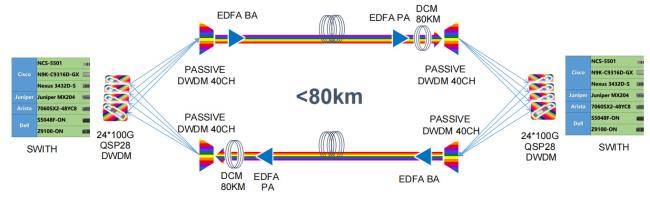

• Passive DWDM MUX 24X100G QSFP28 DWDM 80KM Solution

Compatibility

Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
