10Gbase 1550nm SFP Ethernet Transceiver Module 10G ER SFP+ SMF 40KM ER STM-64
10G ER SFP+ SMF 40KM ER STM-64 Transceiver 10Gbase 1550nm SFP Ethernet Module
General:
HILINK’s HLSP311XL-C(I)D40 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over SingleMode fiber. They are compliant with SFF-8431,SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW. The transceiver designs are optimized for high perform-ance and cost effective to supply customers the best solutions for telecommunication.
Features:
Supports 9.95 to 10.5Gb/s bit rates
Duplex LC connector
Hot pluggable SFP+ footprint
Uncooled 1310nm DFB transmitter, PIN photo-detector
Applicable for 40km SMF connection
Low power consumption, < 1W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-LR
Electrical interface compliant to SFF-8431
Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 80 °C
Applications:
10GBASE-LR/LW at 10.3125Gbps
10G Fiber Channel
Other optical links
10G Transceiver Series:
| 10G SFP Module | SFP-10G-SR | SFP 10G 850nm 300M LC DOM |
| SFP-10G-LR | SFP 10G 1310nm 10KM LC DOM | |
| SFP-10G-ER | SFP 10G 1310nm 40KM LC DOM | |
| SFP-10G-ER | SFP 10G 1550nm 40KM LC DOM | |
| SFP-10G-ZR | SFP 10G 1550nm 80KM LC DOM | |
| SFP-10G-ZR-100 | SFP 10G 1550nm 100KM LC DOM | |
| SFP-10G-ZR-120 | SFP 10G 1550nm 120KM LC DOM |

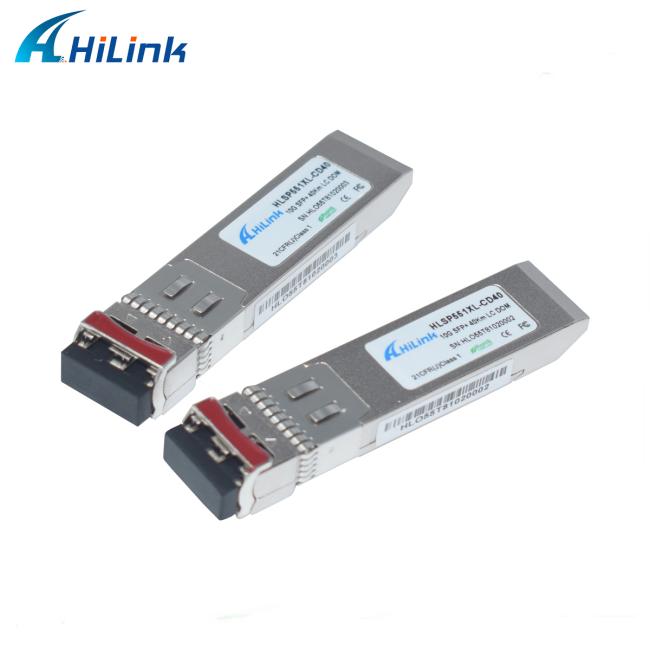

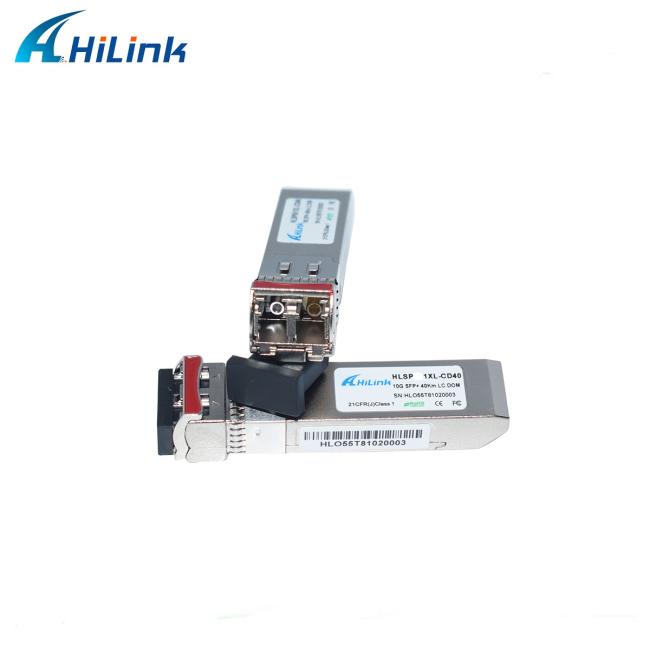

Product Picture:
Guarantee:
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply:
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.
Hilink specialize in wide range of sfp transceivers.
>SFP,SFP+,XFP,CWDM,DWDM
>CWDM/DWDM Mux Demux
>PLC Splitter,Media converter etc.
>Fiber optic cable(10g/40g aoc,dac and 40g/100g mpo cable)
