10G XFP BIDI Transceiver Module 1270nm 1330nm 20km Optical Fiber
10G XFP BIDI Module 1270nm 1330nm 20km Optical Fiber Transceiver
Hilink’s HLXBxx1XL-CD20 transceivers are compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 20km on SMF .
The transceiver module comprises a transmitter with a 1270 or 1330nm DFB laser transmitter, an integrated 1330 or 1270nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ for commercial temperature, -40 to 85 °C for industrial temperature, and offers optimum heat dissipation and excellent electromagnetic shielding for 10 GbE systems application.
Features
- Operating data rate up to10.3Gbps
- Type: 1270nmDFB Tx/1330nmRx 1330nmDFB Tx/1270nmRx
- Distance up to 20km
- Single 3. 3V Power supply and TTL Logic Interface
- Simplex LC Connector Interface
- Hot Pluggable
- Operating Case Temperature
- Standard: 0°C~+70°C
- Industrial:-40°C~+85°C
- Compliant with MSA SFP Specification
- DDM function
Specifications
| Item No. | HL-XFP-BX-20 | Vendor Name | Hilink |
| Form Type | XFP | Max Data Rate | 10.3Gb/s |
| Wavelength | 1270/1330nm | Max Cable Distance | 20KM |
| Interface | LC Simplex | Optical Components | DFB + PIN |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
| Parameter | Symbol | Unit | Min | Typ | Max | Note |
| Transmitter | ||||||
| Center Wavelength | λ | nm | 1260 | 1270 | 1280 | |
| λ | nm | 1320 | 1330 | 1340 | ||
| Average Output Power | Pave | dBm | 0 | 5 | ||
| Average Output Power of OFF Transmitter | Poff | dBm | -30 | |||
| Extinction Ratio | ER | dB | 3.5 | 6 | ||
| Side Mode Suppression Ratio | SMSR | dB | 30 | |||
|
Spectral Bandwidth (-20dB) |
Δλ |
nm | 1 | |||
| Output Eye Mask | Compliant with IEEE B02.3ae requirements | |||||
| Receiver | ||||||
|
Center Wavelength |
λC | nm | 1320 | 1330 | 1340 | |
|
|
λC | nm | 1260 | 1270 | 1280 | |
| Receiver Sensitivity in Average | PSEN | dBm | -14 | |||
| Input Saturation Power (Overload) | PSAT | dBm | 0.5 | |||
| LOS Assert |
Pa |
dBm | -30 | |||
| LOS De-Assert |
Pd |
dBm | -18 | |||
| LOS Hysteresis | PHys | dB | 1 | 5 | ||
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
-
10GBASE-ER at 10.3125Gbps
-
10GBASE-EW at 9.953Gbps
-
Other optical link

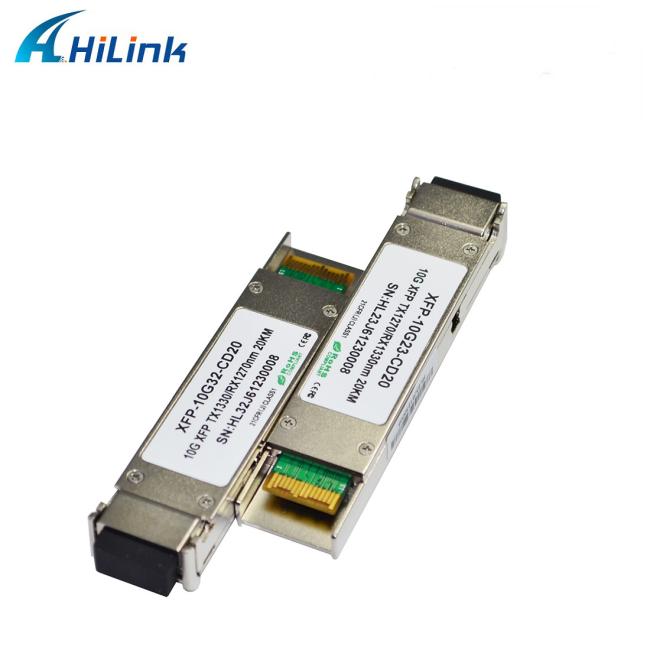

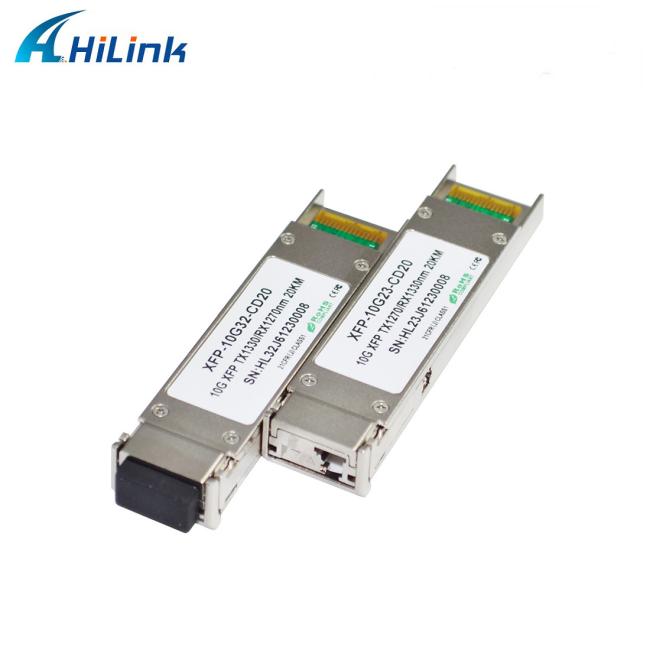

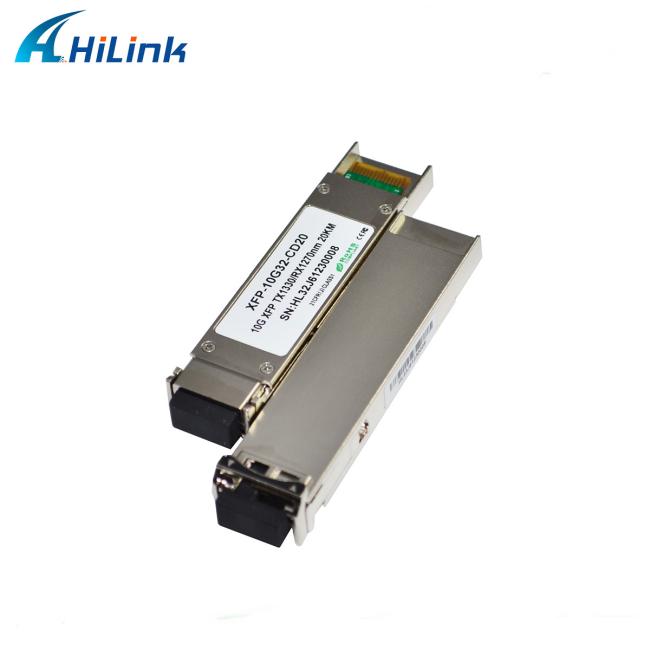

Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
