1X32 PLC Optical Splitter Fanout Bare Fiber 0.9mm Single Mode Without Connector
Optic PLC Splitter 1X32 Fanout Bare Fiber 0.9mm Single Mode Without Connector
PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
1xN and technology can provide a full range of full specification 2xN products, and customized for all occasions in the optical splitter.
All products comply with Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, YD / T 1117-2001 and RoHS standards.
| Parameters |
1X2 |
1X4 | 1X8 | 1X 16 | 1X32 | 1X 64 | 1X128 |
|---|---|---|---|---|---|---|---|
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Fiber Type | G657A1 or customer specified | ||||||
| Insertion Loss (dB) (P/SGrade ) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| Return Loss (dB) ( P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40~85 C)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40~85 | ||||||
| Storage Temperature (C) | -40~85 | ||||||
| Device Dimension (mm) | 40x4x4 | 40x4x4 | 40x4x4 | 50x4x4 | 50x7x4 | 60x12x4 | N/A |
| Module Dimension (mm) | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 140x115x18 | 140x115x18 | 140x115x18 |
| Mini-Module Dimension (mm) | 50x7x4 | 50x7x4 | 50x7x4 | 60x12x4 | 80x20x6 | 100x40x6 | N/A |
Features
* Low Insertion loss and Low PDL
* Uniform power splitting
* High reliability
* Excellent environmental stability
* Compact size and various package
Applications
* FTTX networks

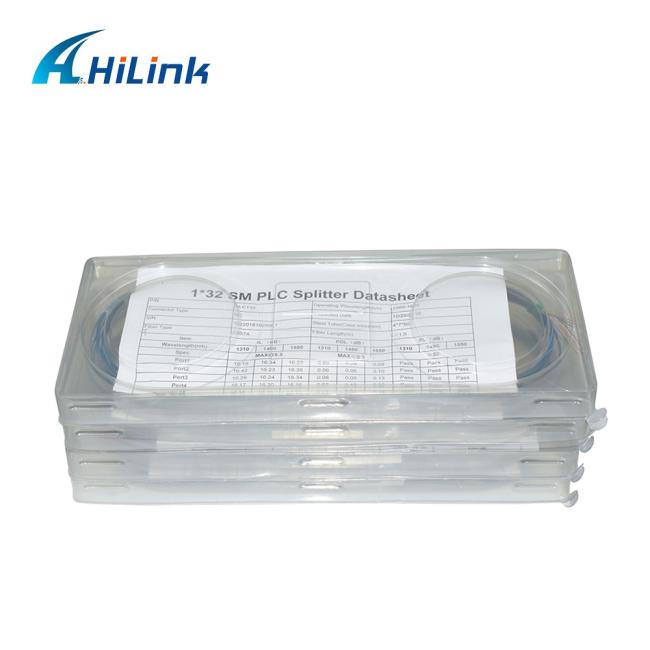

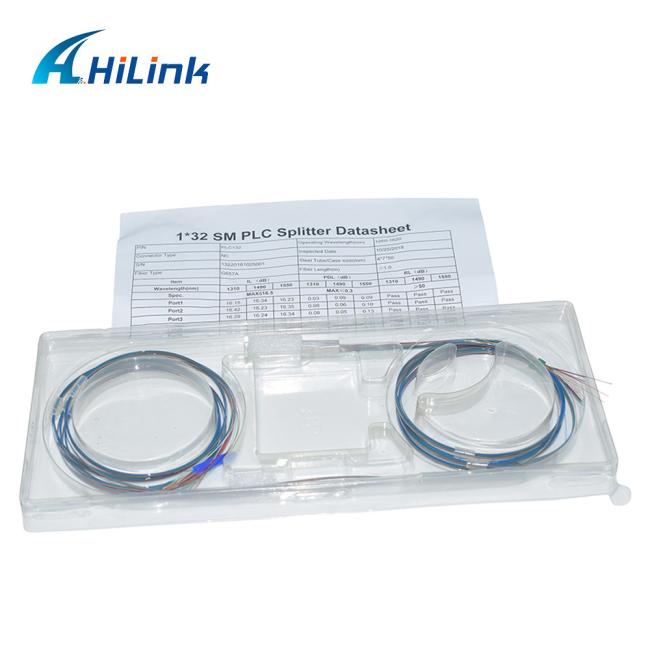

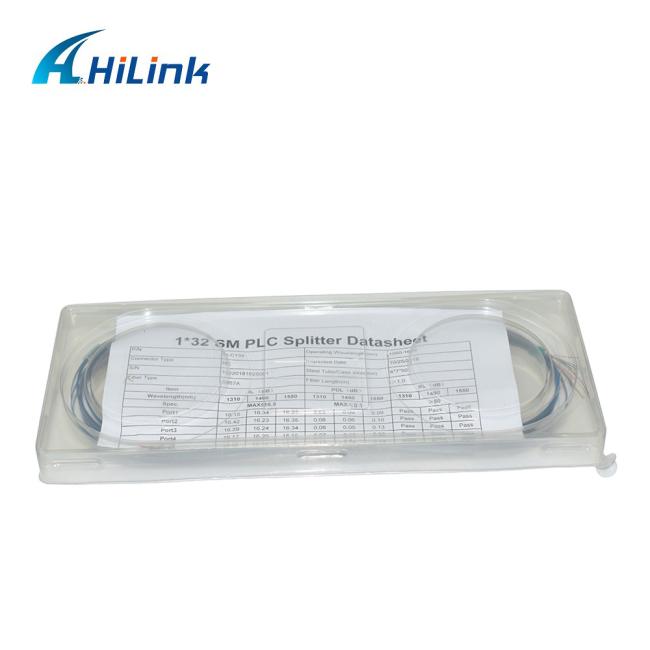

Details Images
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock; For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your payment term?
T/T, Western Union or Paypal.
5. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
6. Could I use our own logo and label?
OEM service is provided.
