Gigabit 1.25GBASE 120KM SFP+ Transceiver Module BIDI LC Conector RX1550nm Single Mode DOM
Gigabit 1.25GBASE 120KM BIDI LC Conector TX1490/RX1550nm120KM Single Mode D
General
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
1000BASE-BX 120km SFP:
Tx: 1490nm/Rx: 1550nm BIDI SFP Transceiver
Tx: 1550nm/Rx: 1490nm BIDI SFP Transceiver
Features
Single LC receptacle optical interface compliant
Hot-pluggable SFP footprint
1550nm DFB laser transmitter
1490nm APD Receiver
RoHS compliant and Lead Free
Up to 120km on 9/125um SMF
Metal enclosure for lower EMI
Single 3.3V power supply
Low power dissipation <700mW
Commercial operating temperature range: 0°C to 70°C
Application
Gigabit Ethernet Switches and Routers
Fiber Channel Switch Infrastructure
1.06 Gb/s Fibre Channel
1000BASE BIDI(WDM) SFP Transceivers
| 1.25G BIDI SFP | |
| GLC-BX-D20 | 1.25G DFB Tx1490nm/Rx1310nm 20km LC/SC BIDI |
| GLC-BX-U20 | 1.25G FP Tx1310nm/Rx1490nm 20km LC/SC BIDI |
| GLC-BX-U40 | 1.25G DFB Tx1310nm/Rx1550nm 40km LC/SC BIDI |
| GLC-BX-D40 | 1.25G DFB Tx1550nm/Rx1310nm 40km LC/SC BIDI |
| GLC-BX-U80 | 1.25G DFB Tx1490nm/Rx1550nm 80km LC/SC BIDI |
| GLC-BX-D80 | 1.25G DFB Tx1550nm/Rx1490nm 80km LC/SC BIDI |
| GLC-BX-U120 | 1.25G DFB Tx1490nm/Rx1550nm 120km LC/SC BIDI |
| GLC-BX-D120 | 1.25G DFB Tx1550nm/Rx1490nm 120km LC/SC BIDI |
| GLC-BX-U160 | 1.25G DFB Tx1490nm/Rx1550nm 160km LC/SC BIDI |
| GLC-BX-D160 | 1.25G DFB Tx1550nm/Rx1490nm 160km LC/SC BIDI |
| GLC-BX-U200 | 1.25G DFB Tx1490nm/Rx1550nm 200km LC/SC BIDI |
| GLC-BX-D200 | 1.25G DFB Tx1550nm/Rx1490nm 200km LC/SC BIDI |

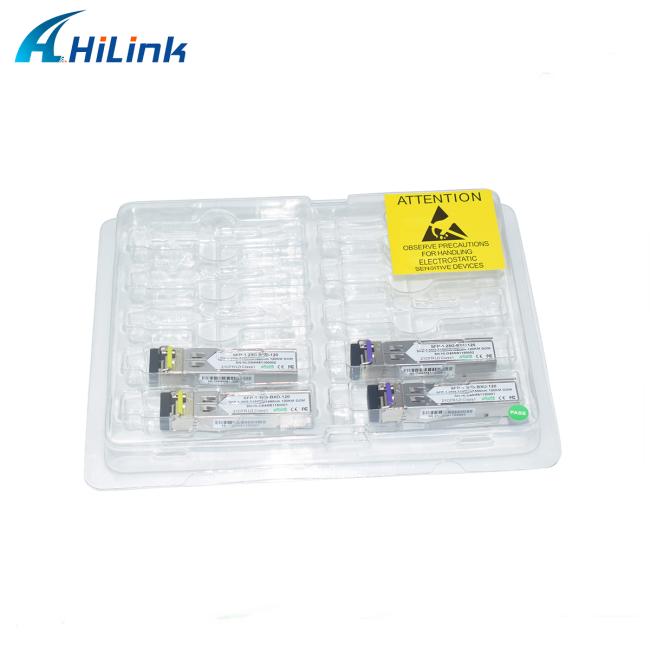

Product Picture
Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter | ||||||
| Output Opt. Power | PO | 0 | - | +5 | dBm | 1 |
| Optical Wavelength | λ | 1530 | 1550 | 1570 | nm | 2 |
| Spectral Width | σ | - | - | 1 | nm | 2 |
| Optical Rise/Fall Time | tr/tf | - | 170 | 260 | ps | 4 |
| Deterministic Jitter Contribution | TXΔDJ | - | 20 | 56.5 | ps | 5 |
| Total Jitter Contribution | TXΔTJ | - | - | 227 | ps | |
| Optical Extinction Ratio | ER | 9 | - | - | dB | |
| Receiver | ||||||
|
Average Rx Sensitivity @ 1.25 Gb/s (Gigabit Ethernet) |
RSENS2 | - | - | -32 | dBm | 6, 7 |
|
Average Rx Sensitivity @ 1.06 Gb/s (1X Fibre Channel) |
RSENS1 | - | - | -33 | dBm | 6, 7 |
| Maximum Received Power | RXMAX | -9 | dBm | |||
| Optical Center Wavelength | λC | 1470 | 1490 | 1510 | nm | |
| LOS De-Assert | LOSD | - | - | -34 | dBm | |
| LOS Assert | LOSA | -45 | - | - | dBm | |
| LOS Hysteresis | 0.5 | - | - | dB |
Notes:
- Class 1 Laser Safety.
- Also specified to meet curves in FC-PI-2 Rev. 10.0 Figure 18, which allow trade-off between wavelength, spectral width.
- Equivalent extinction ratio specification for Fibre Channel. Allows smaller ER at higher average power.
- Unfiltered, 20-80%. Complies with IEEE 802.3 (Gig. E) and FC 1x eye masks when filtered.
- Measured with DJ-free data input signal .In actual application, output DJ will be the sum of input DJ and ΔDJ.
- Measured with conformance signals defined in FC-PI-2 Rev. 10.0 specifications.
- Measured with PRBS 27-1 at 10-12 BER .

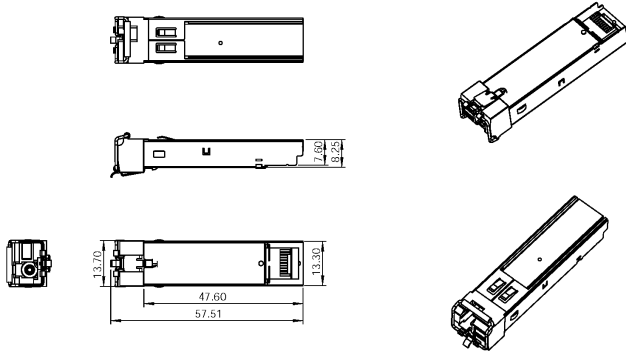

Mechanical Specifications
