50GHz 200G CFP2 DCO Coherent Module Reach 80KM Optical Transceiver
50GHz 200G CFP2 DCO Coherent Module Reach 80KM Optical Transceiver
Coherent Module 50GHz 200G CFP2 DCO Optical Transceiver 80KM Transmission LC

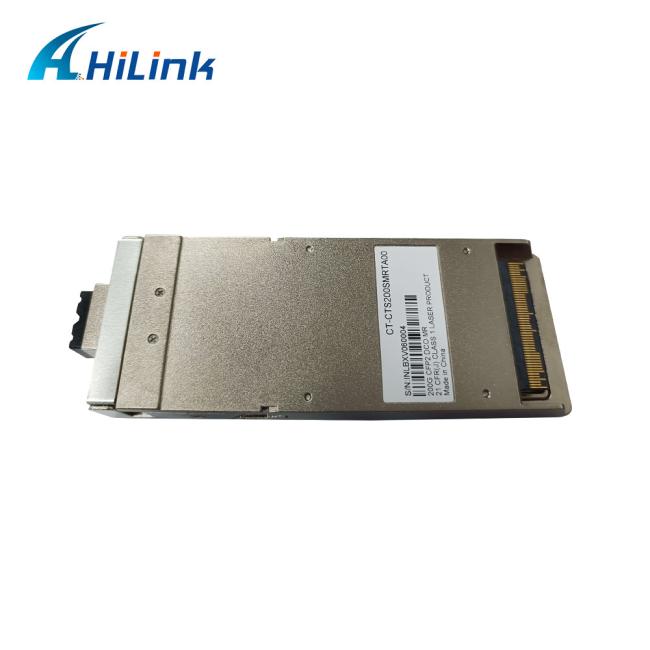

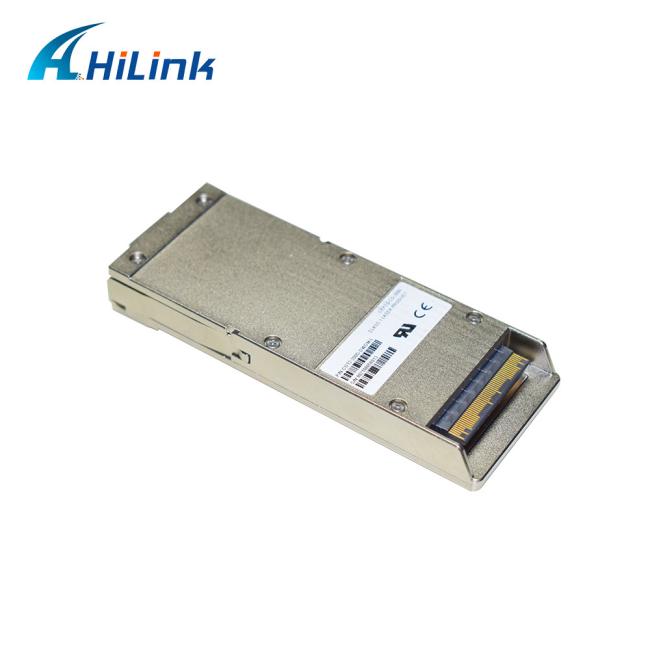

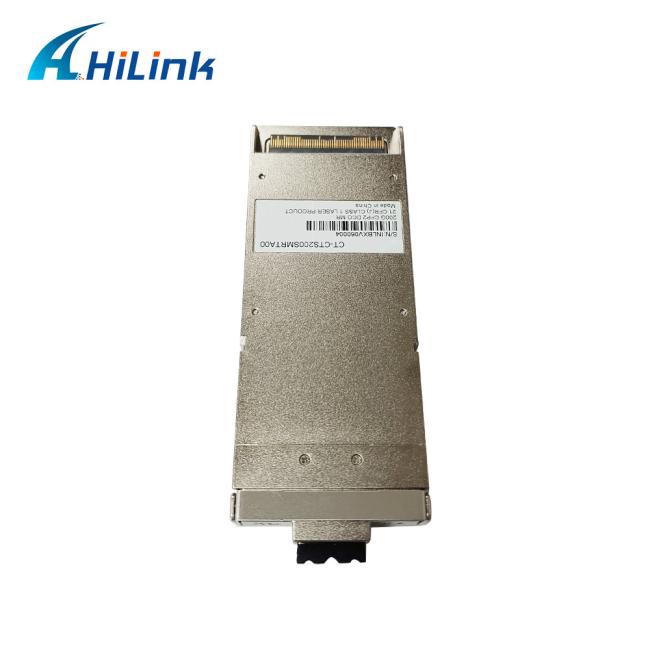

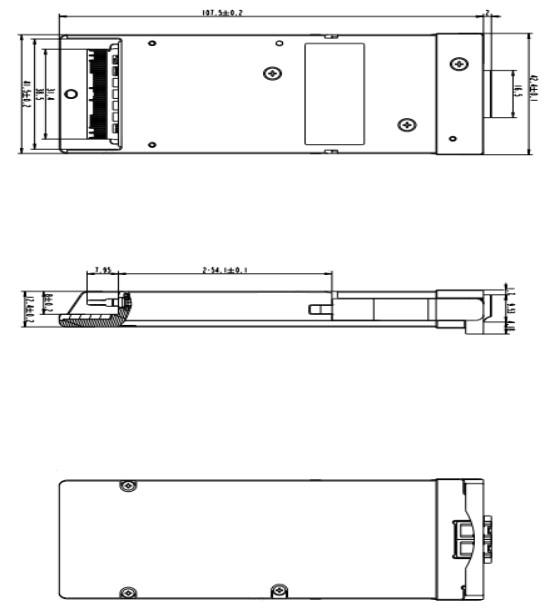

The CFP2-DCO coherent optical module uses a 104-pin CFP2-MSA electrical connector for connecting the host card. Figure 1-1 shows the picture of this module.
The optical module consists of three functional parts: TX module, RX module and control module. All the control interface pins are provided by an internal microcontroller. This microcontroller can also be used for modulator control, software management, and alarm / performance event reporting. Figure 1-2 shows the block diagram of the 100G / 200G CFP2-DCO coherent optical module.
Features
- 100G CFP2-DCO coherent optical module operating up to 112.30 Gbps
- 200G CFP2-DCO coherent optical module operating up to 211.45 Gbps
- 400G CFP2-DCO coherent optical module operating up to 425 Gbps
- PM-QPSK (100G/200G) and PM-16QAM (200G / 400G) and PM-16QAM PS (200G) modulation formats
- CFP2 MSA Hardware Specification 1.0 with modifications compliant
- CFP MSA Management Interface Specification 2.2 with modifications compliant
- Maximum power consumption: 31 W
Optical Port Specifications
| Parameter | 200G Mode Value | ||
| Network lane, modulation format | PM-QPSK | PM-16QAM | PM- 16QAM PS |
| Optical channels | 80 | 96 | 96 |
| Grid spacing | 75 GHz | 50 GHz | 50 GHz |
| Frequency range | 190.7 to 196.65 THz | 191.3 to 196.05 THz | 191.3 to 196.05 THz |
| Wavelength stability | ±1.5 GHz | ±1.5 GHz |
|
| Tx output power, default | -0.5 dBm | -0.5 dBm | -2.5 dBm |
| Max. Tx output power | -0.5 dBm | -0.5 dBm | -2.5 dBm |
| Min. Tx output power | -6.5 dBm | -6.5 dBm | -6.5 dBm |
| Tx output power accuracy | ±1.5 dBm | ±1.5 dBm | ±1.5 dBm |
| Output power during tuning | < -35 dBm | < -35 dBm |
|
| CD tolerance | ±40 000 ps/nm | ±40 000 ps/nm |
|
| DGD tolerance | 22 ps | 22 ps |
|
| Input power range | 0 to -18 dBm | 0 to -18 dBm | 0 to -18 dBm |
| OSNR tolerance (BOL) | 14.5 dB (Rx optical power: -8 to -10 dBm) | 18.5 dB (Rx optical power: -8 to -10 dBm) | 16.5 dB (Rx optical power: -8 to -10dBm) |
| Power consumption |
Typical: 26 W |
Typical: 22 W |
Typical: 22 W Maximum: 24 W |
Applications
- Used on the system's motherboard
- Up to 2000 km in MAN DWDM application
We can provide the matched 100G/400G Muxponder ,AAWG , EDFA and the whole system .Please contact customer service .
