Description:

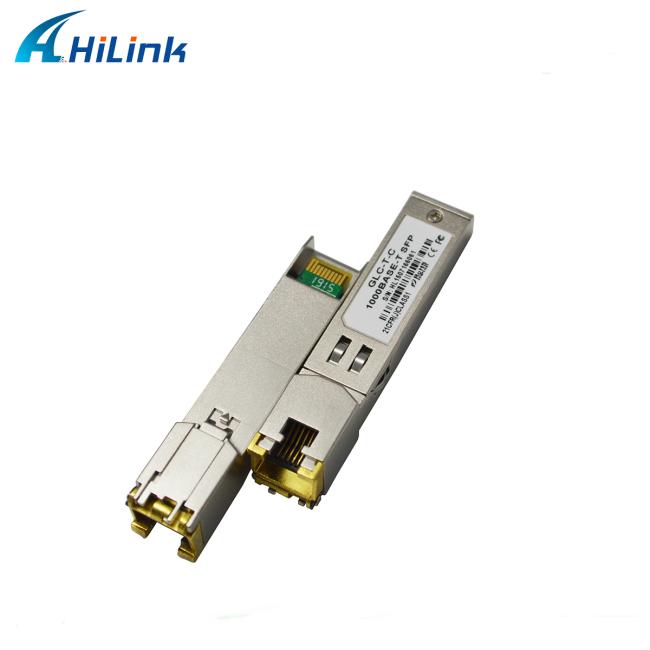

Hilink HL-GLC-TC 1000BASE-T copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The product supports 1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The product provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh.

Features:

Up to 1.25Gb/s bi-directional data links

Hot-pluggable SFP footprint

Extended case temperature range (-40°C to +85°C )

Fully metallic enclosure for low EMI

Low power dissipation

Compact RJ-45 connector assembly

Detailed product information in EEPROM

+3.3V single power supply

Access to physical layer IC via 2-wire serial bus

1000 BASE-T operation in host systems with SERDES interface

Compliant with SFP MSA

Compliant with IEEE Std 802.3TM-2002

Compliant with FCC 47 CFR Part 15, Class B

RoHS Compliant Products
