General

        Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.

Features

Single LC/SC receptacle optical interface compliant

Hot-pluggable SFP footprint

1310nm FP laser transmitter

RoHS compliant and Lead Free

Up to 3km on 9/125um SMF

Metal enclosure for lower EMI

Single 3.3V power supply

Low power dissipation <600mW

Commercial operating temperature range: 0°C to 70°C

Applications

When bidding the product, please leave message for your switch brand.

1.25G SFP Transceivers

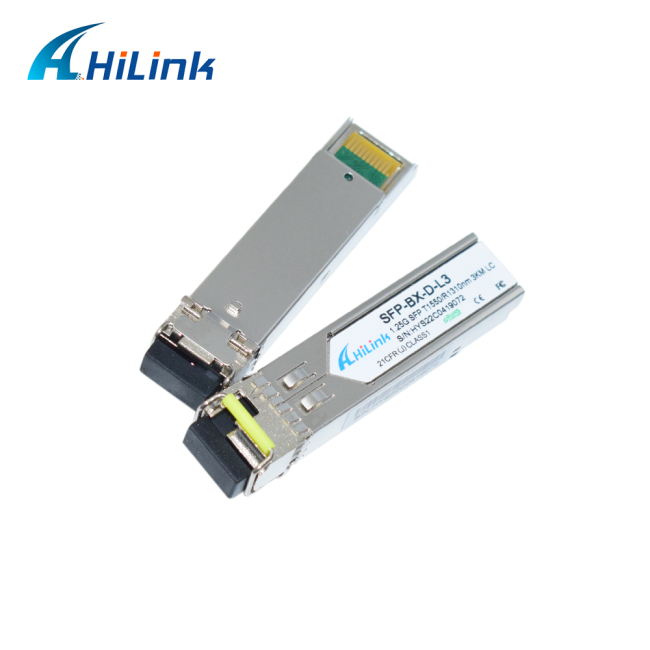

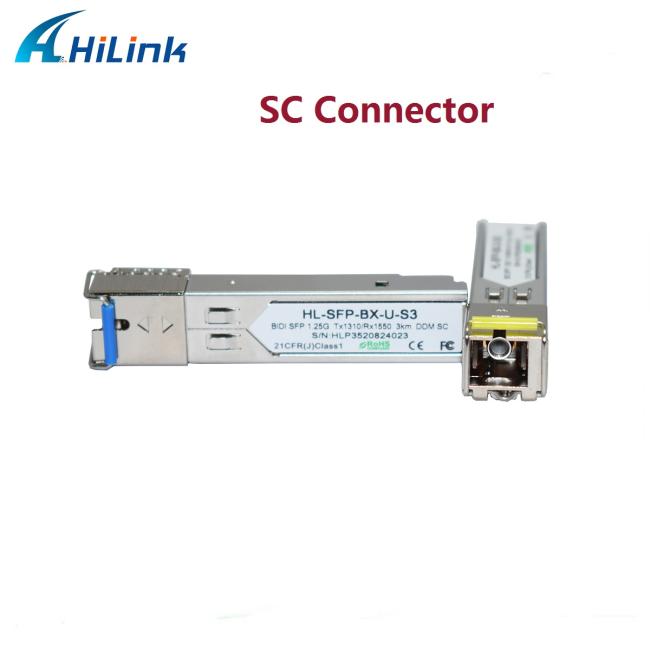

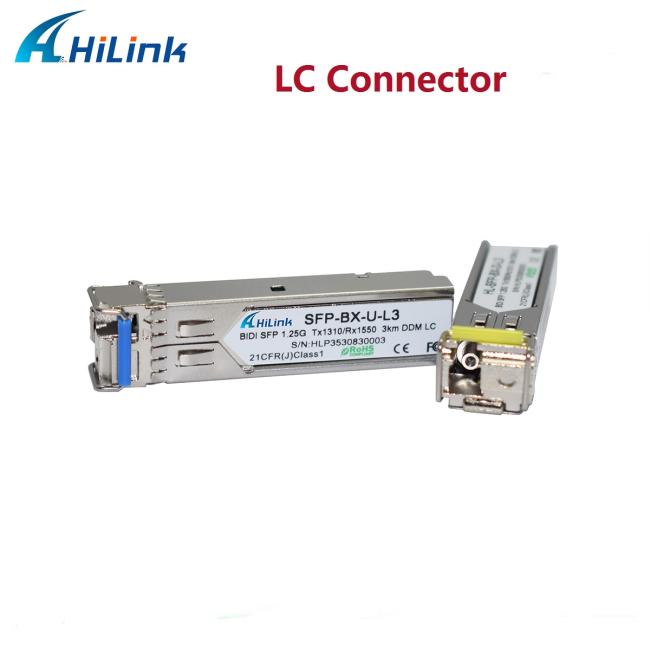

Product picture show:

Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)

• Class 1 Laser Safety.
• Also specified to meet curves in FC-PI-2 Rev. 10.0 Figure 18, which allow trade-off between wavelength, spectral width.
• Equivalent extinction ratio specification for Fibre Channel. Allows smaller ER at higher average power.
• Unfiltered, 20-80%. Complies with IEEE 802.3 (Gig. E) and FC 1x eye masks when filtered.
• Measured with DJ-free data input signal .In actual application, output DJ will be the sum of input DJ and ΔDJ.
• Measured with conformance signals defined in FC-PI-2 Rev. 10.0 specifications.
• Measured with PRBS 2⁷-1 at 10^-12 BER .

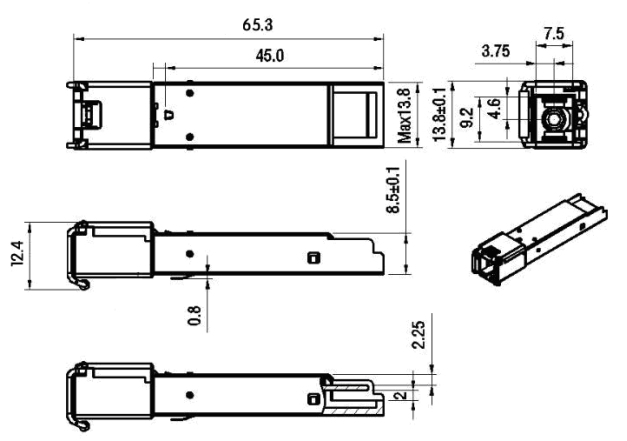

Mechanical Specifications:

FAQ:

Q:Do you sell second-hand products?

A:No.All our products are brand new,we never use secont-hand components.

Q:What payment terms do you accept?

A:T/T,Paypal,Western Union are acceptable.

Q:What are the shipping ways can you offer?

A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

Q:Do your products come with warranty?

A:Yes,We provide 3 years warranty for all our products from the date of shipment.

Q:How to place an order?

A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.

As we have various kinds of products,if you can't find the correct item you need.Please send us inquiry.We will follow up shortly.
