BIDI 10G WDM SMF Optical Transceiver SFP+ 100KM Tx1490nm/Rx1550nm with LC Fiber Optic Transceivers for FTTH Networks
BIDI 10G WDM SMF Optical Transceiver SFP+ 100KM Tx1490nm/Rx1550nm with LC Fiber Optic Transceivers for FTTH Networks
Hilink’s HLSBxx1XL-CD100 transceivers are compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 100km on SMF .
The transceiver module comprises a transmitter with a 1490 or 1550nm EML laser transmitter, an integrated 1550 or 1490nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ for commercial temperature, -40 to 85 °C for industrial temperature, and offers optimum heat dissipation and excellent electromagnetic shielding for 10 GbE systems application.
Features
-
Supports 9.95 to 11.3Gb/s bit rates
-
Simplex LC Connector
-
Hot-pluggable XFP footprint
-
Applicable for 100km SMF connection
-
Low power consumption, < 2.0 W
-
Digital Diagnostic Monitor Interface
-
XFP MSA package
-
Operating case temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C
Specifications
| Item No. | HL-SFP-BX-100 | Vendor Name | Hilink |
| Form Type | FP | Max Data Rate | 11.3Gb/s |
| Wavelength | 1490/1550nm | Max Cable Distance | 100KM |
| Interface | LC Simplex | Optical Components | EML + APD |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER; BER<10-12; 231 – 1 PRBS.
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
-
10GBASE-ER at 10.3125Gbps
-
10GBASE-EW at 9.953Gbps
-
Other optical link

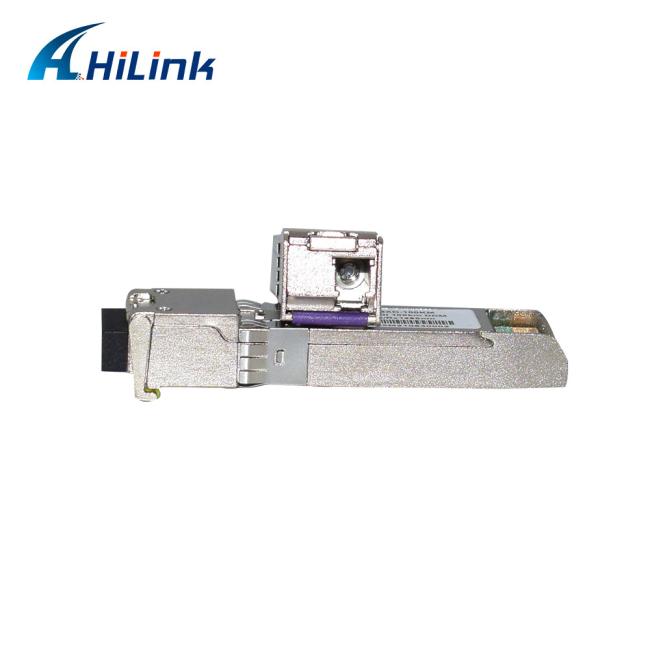

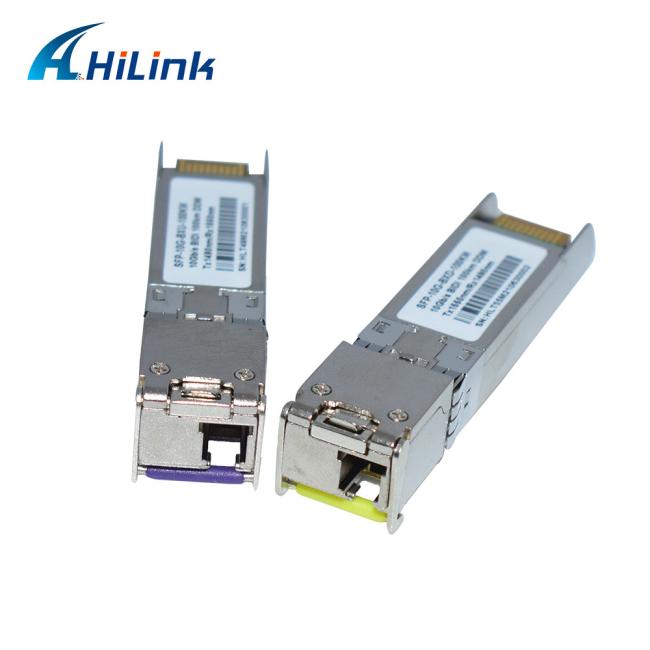

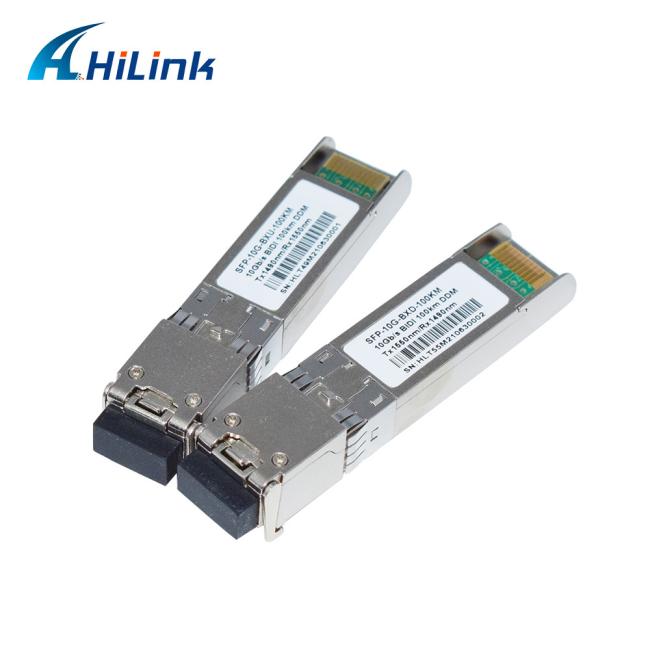

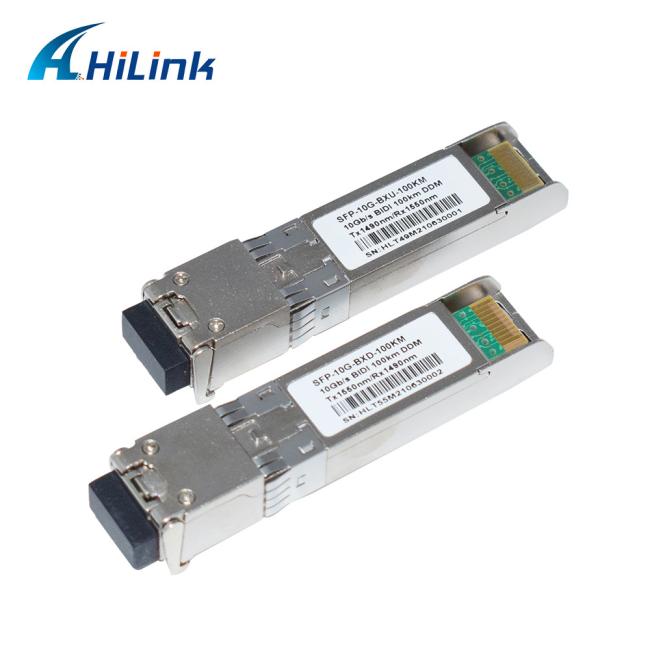

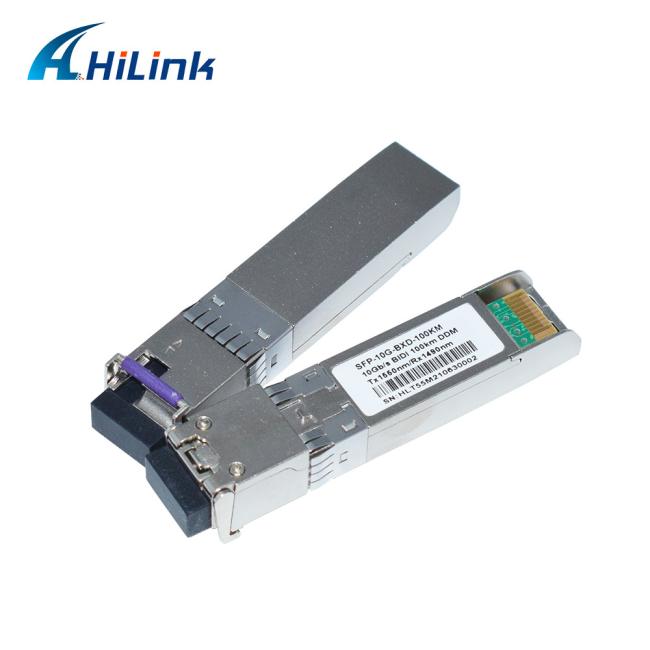

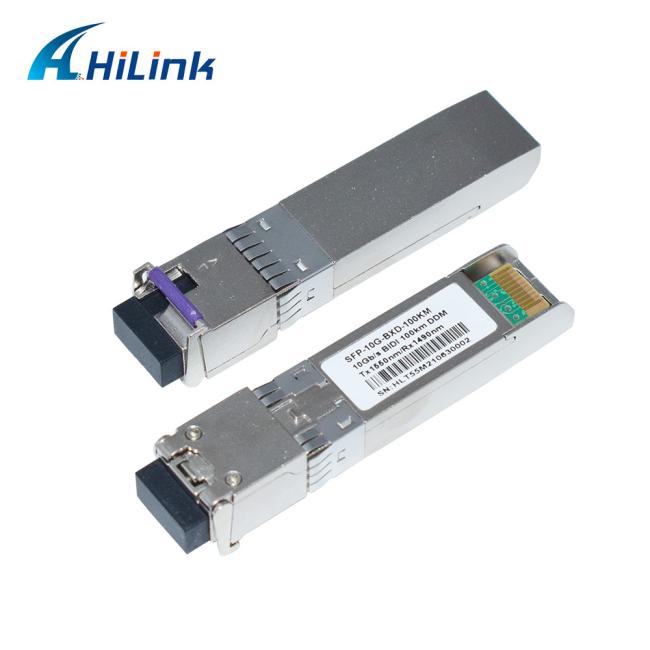

Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
