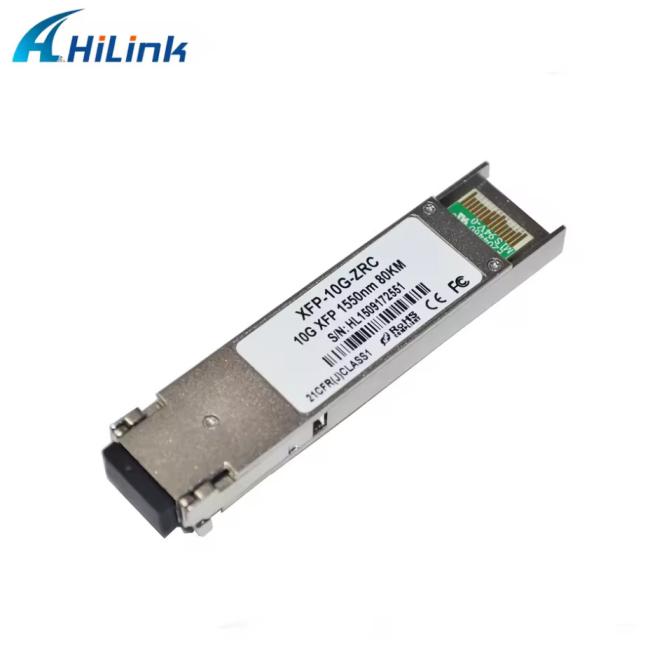

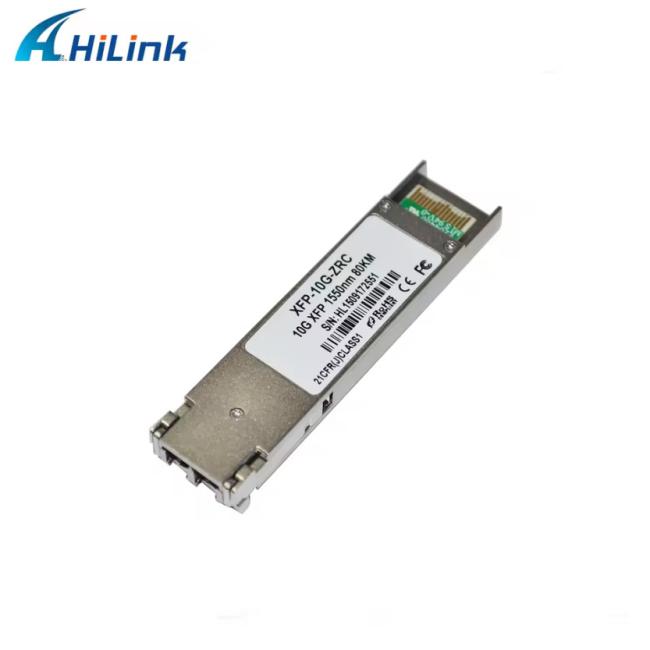

3 Years Warranty 10G-XFP-ZR-80km Hilink 10Gb/s 1550nm 80km Duplex Fiber SM XFP GBIC Transceiver Module

3 Years Warranty 10G-XFP-ZR-80km  Hilink 10Gb/s 1550nm 80km Duplex Fiber SM XFP GBIC Transceiver Module

• Features

  Supports 9.95 to 11.3Gb/s bit rates

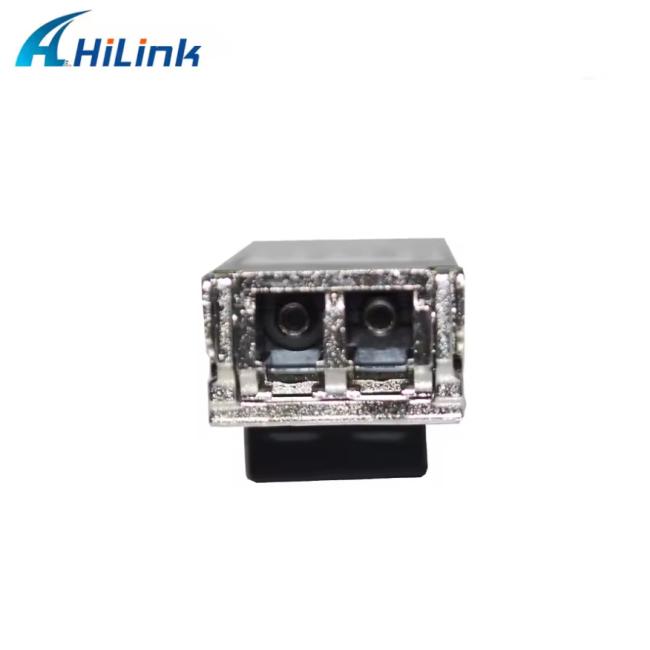

  Duplex LC connector

  Hot-pluggable XFP footprint

  Cooled 1550nm EML laser ,APD photo-detector

  Applicable for 80km SMF connection

  Low power consumption, <3.5W

  Digital Diagnostic Monitor Interface

  XFI Loop-back Support

  Operating case temperature:

  Commerical:0 to 70 °C

  Industrial:-5 to 80°C


  Applications



  10GBASE-ZR/ZW 10G Ethernet

  80km 10G Fibre Channel

  SONET OC-192 / SDH STM-64, ITU-T G.959.1

  Other optical link






  BiDi(WDM) Transceivers




  155M/622M BiDi SFP LC/SC	155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
  4/2/1G BIDI SFP LC/SC	4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
  10G SFP BiDi	SFP+ BiDi 1270 20km	SFP+ BiDi 20km Tx1270nm/Rx1330nm LC
  	SFP+ BiDi 1330 20km	SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
  	SFP+ BiDi 1270 40km	SFP+ BiDi 40km Tx1270nm/Rx1330nm LC
  	SFP+ BiDi 1330 40km	SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
  10G XFP BiDi	XFP BiDi 1270 20km	XFP BiDi 20km Tx1270nm/Rx1330nm LC
  	XFP BiDi 1330 20km	XFP BiDi 20km Tx1330nm/Rx1270nm LC
  	XFP BiDi 1270 40km	XFP BiDi 40km Tx1270nm/Rx1330nm LC
  	XFP BiDi 1330 40km	XFP BiDi 40km Tx1330nm/Rx1270nm LC

Our Service

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
