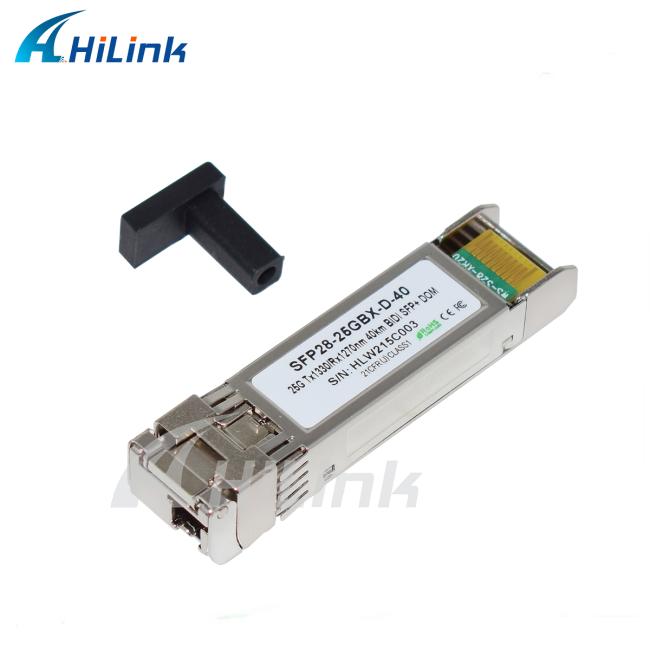

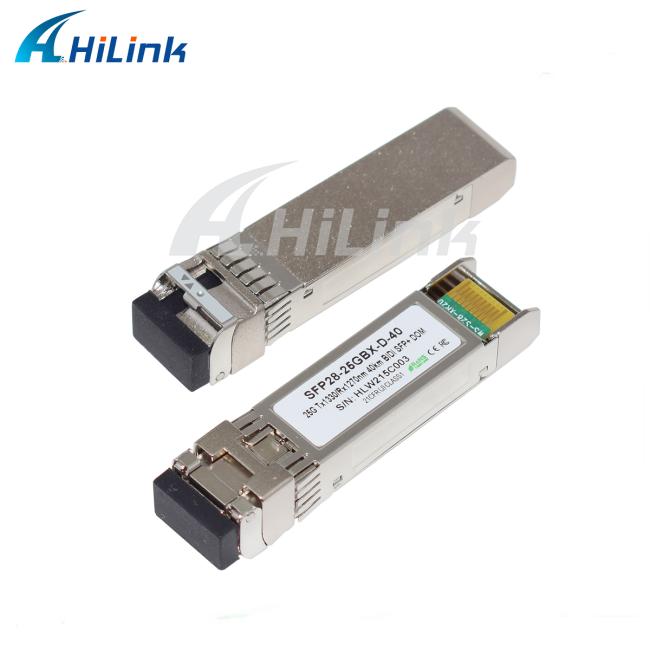

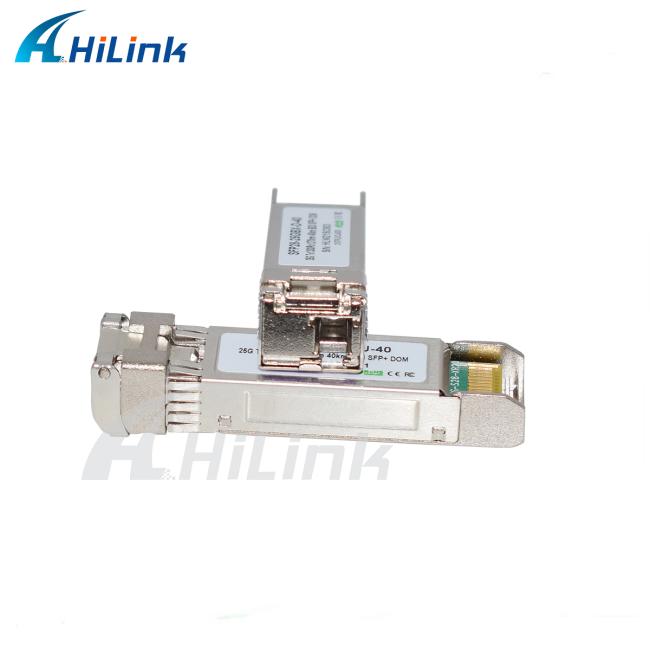

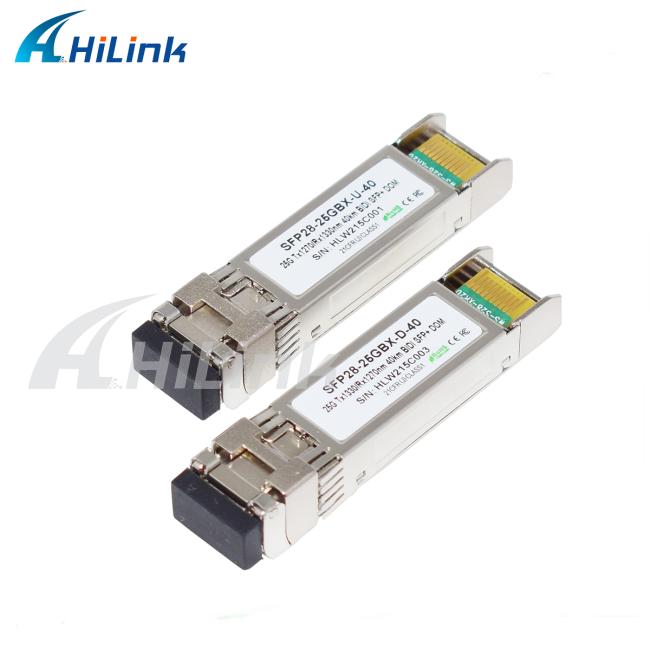

25Gb/s 40Km SFP28 BIDI Transceivers LC single connector Hot pluggable Fully RoHS Compliant

Features

Operating data rate up to 25.78Gbps

Up to 40km transmission distance

High sensitivity APD photodiode and TIA

Rate Adaptation

LC single connector

Hot pluggable 20pin connector

Low power consumption <1.5 W

Single +3.3V±5% power supply

Compliant with SFF-8472

Fully RoHS Compliant

Operating temperature range: Commercial: 0°C to +70°C  Industrial: -40°C to +85°C

Applications

25GE BASE-LR Ethernet

CPRI Option 10/eCPRI

Product Description

The 25Gb/s SFP28 BIDI Transceivers is intended for 40km reach service from 24.33Gb/s to 25.78Gb/s BI-direction single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.

The low jitter and low bit error rate optical assembly features a DML laser transmitter and APD/TIA receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.
