Hot Pluggable QSFP+ Transceivers , 40G QSFP SR4 Energy Saving 3 Years Warranty
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
Negotiable
Brand:
HILINK
Product Description
Hot Pluggable QSFP+ Transceivers , 40G QSFP SR4 Energy Saving 3 Years Warranty
Features
- Four-channel full-duplex transceiver module
- Hot-pluggable QSFP+ form factor
- Maximum link length of 200m on OM3 Multimode Fiber (MMF) and 400m on OM4 MMF
- Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
- Unretimed XLPPI electrical interface
- Maximum power dissipation < 1.2W
- Reliable VCSEL array technology
- Real-time digital diagnostic functions, including Tx and Rx power monitoring
- Commercial operating case temperature range 0°C to 70°C
- Single MPO receptacle
- RoHS-6 compliant
Application
40G Ethernet
Infiniband 4X SDR DDR QDR
40G Telecom connections
Specification:
| P/N | 40GB-SR4-QSFP |
| Datarate | 40G/ps |
| Distance | 300M |
| Wavelenth | 850nm |
| Media | MMF |
| DDM/DOM | YES |
| Connector | MTP/MPO |
| Application | 40G Ethernet/ 40G Infiniband |
| Operating Temperature | 0℃~ +70℃ |
| Voltage Supply | 3.3V |
| Compatible Brand | CISCO , Juniper |

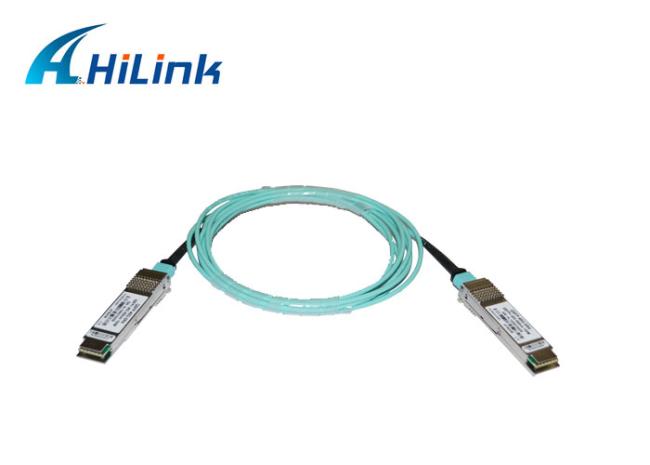

Real product show:
