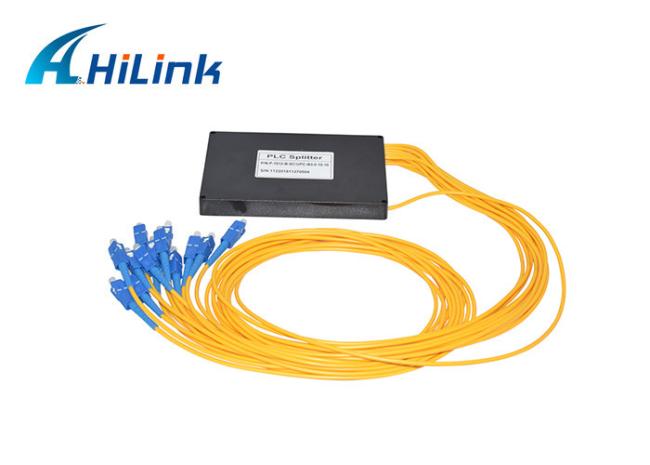

Mini ABS Planar Lightwave Circuit Splitter for PLC Optical Splitter SC FC

Price Negotiable

Price: Negotiable

MOQ: 1pcs

Delivery Time: Negotiable

Brand: HILINK

Product Description

Mini PLC Optical Splitter Planar Lightwave Circuit Splitter 2 Years Warranty OEM

1. Description

1). Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

2). Fiber optic splitter features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

3). Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

4). Fiber optic splitter meet GR-1209-CORE and GR-1221-CORErequirements.

2. Feature

1 Low Insertion loss

2 Low PDL

3 Compact Design

4 Good channel-to-channel uniformity

5 Wide Operating Wavelength: 1260-1650nm

6 Wide Operating Temperature: -40°C - 85°C

7 High Reliability and Stability

3.Application

1 FTTX Systems

2 PON Networks

3 CATV Links

4 Optical Signal Distribution

5 CWDM DWDM Project

4. Detailed Specification

Parameters	2×2	2×4	2×8	2×16	2×32
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.2	7.6	11.0	14.5	17.5
Loss Uniformity (dB)	0.8	1.5	1.5	2.0	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.5	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18

Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector

Features

Application

1×32 PLC Splitter, SC/APC connector	Optical Signal Distribution
2000μm ITU G.657A1 for fiber input/output	Data Communications
Low insertion loss ≤ 17.7dB	Lan and CATV System
Low polarization dependent loss (PDL) ≤ 0.3dB	FTTX Deployment
Operating bandwidth: 1260 - 1650nm	FTTH Network
Compact design, suitable for installation in optical equipments	Passive Optical Networks (PON)
Wide Operating Temperature: -40 - 85°C, support industry standard applications	Measuring System and Laser System
High reliability and stability, Telecordia GR-1221/1209 compliant	DWDM and CWDM Systems
