1.25G Gigabit Ethernet Fiber Optic SFP Module , Fiber Channel Transceiver
1.25G Gigabit Ethernet Fiber Optic SFP Module , Fiber Channel Transceiver
Our products are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
DESCRIPTION :
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
FEATURES :
| Series Number | HL - GLC - BX - D / U | Vendor Name | Hilink |
| Power supply | +3.3V | Max Data Rate | 1.25G |
| Wavelength | Tx1310 / Rx1550nm Tx1550 / Rx1310nm | Optical Components | 1310nm FP laser transmitter |
| Interface | LC / SC | Max Cable Distance | 20km |
| Cable Type | 9 / 125μm SMF | DOM Support | Yes |
| TX Power | -9 to - 3dBm | Receiver Sensitivity | - 24 to 0dBm |
| Commercial Temperature | 0 to 70°C (32 to 158°F) | Power dissipation | < 600mW |
APPLICATION :
- Gigabit Ethernet
- 1.06 Gb/s Fibre Channel
| IV. Optical Characteristics (TOP=25°C, Vcc=3.3 Volts) | |||||||
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. | |
| Transmitter | |||||||
| Output Opt. Power | PO | -9 | - | -3 | dBm | 1 | |
| Optical Wavelength | λ | 1290 | 1310 | 1330 | nm | 2 | |
| Spectral Width | σ | - | - | 3 | nm | 2 | |
| Optical Rise/Fall Time | tr/tf | - | 170 | 260 | ps | 4 | |
| Deterministic Jitter Contribution | TXΔDJ | - | 20 | 56.5 | ps | 5 | |
| Total Jitter Contribution | TXΔTJ | - | 50 | 119 | ps | ||
| Optical Extinction Ratio | ER | 9 | - | - | dB | ||
| Receiver | |||||||
Average Rx Sensitivity @ 1.25 Gb/s | RSENS2 | - | - | -24 | dBm | 6, 7 | |
Average Rx Sensitivity @ 1.06 Gb/s | RSENS1 | - | - | -25 | dBm | 6, 7 | |
| Maximum Received Power | RXMAX | 0 | dBm | ||||
| Optical Center Wavelength | λC | 1480 | - | 1580 | nm | ||
| LOS De-Assert | LOSD | - | - | -25 | dBm | ||
| LOS Assert | LOSA | -36 | - | - | dBm | ||
| LOS Hysteresis | 0.5 | - | - | dB | |||

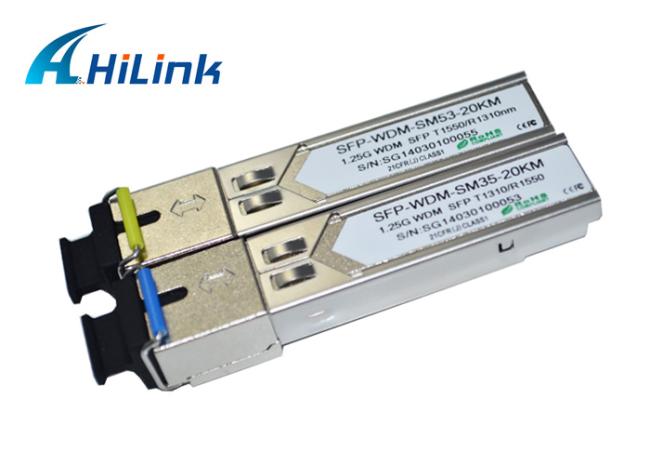

PRODUCT SHOW :
SHIPPING & DELIVERY & PACKAGING :
International Express:
DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
GUARANTEE :
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
