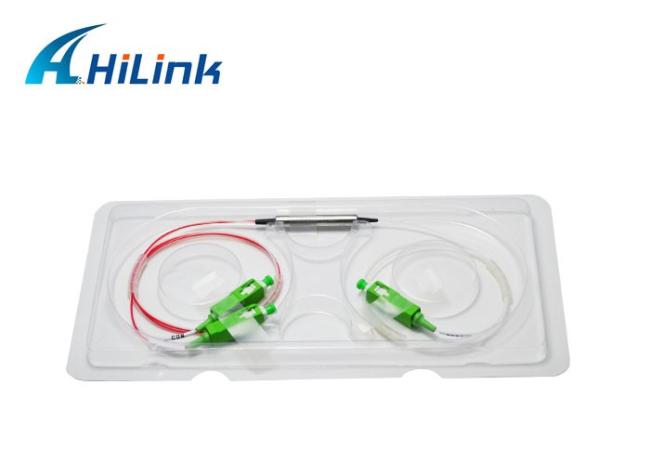

0.9mm SC / APC WDM Fiber Optic T1550nm R1310 & 1490nm Steel Tube Package

0.9mm SC / APC WDM Fiber Optic T1550nm R1310 & 1490nm Steel Tube Package

  Filter WDM module extensively used in optical amplifiers, WDM networks. The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.
  It works on 1310nm/1490nm, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get together.

Feature:

  Wide Wavelength Range
  Low Insertion Loss
  High Channel Isolation
  High stability and reliability

Applications:

  System Monitoring
  Transmitters and Fiber
  Fiber optical amplifier

  CATV System

  FTTH System

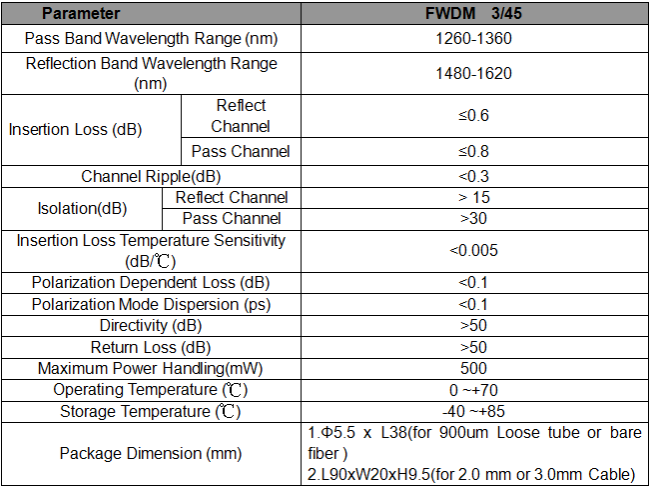

1310nm/1490nm/1550nm Filter WDM:
