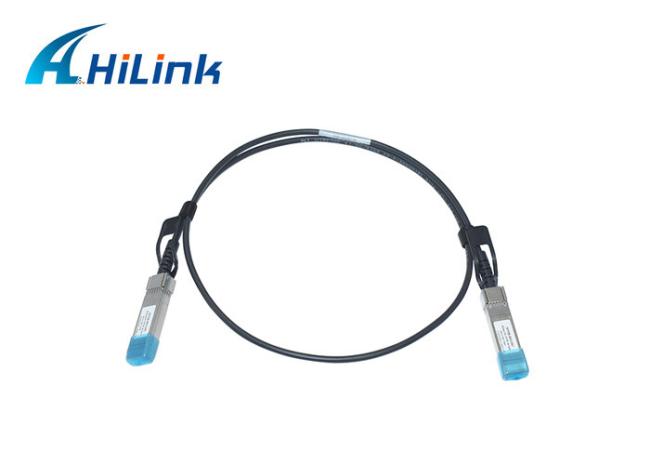

5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M
5 Meters Direct Attach Copper Cable , SFP+ To SFP+ Cable SFP-H10GB-CU5M
The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.
Features
- Support for multi-gigabit data rates up to 10.5Gbps
- Data rates backward compatible to 1Gbps

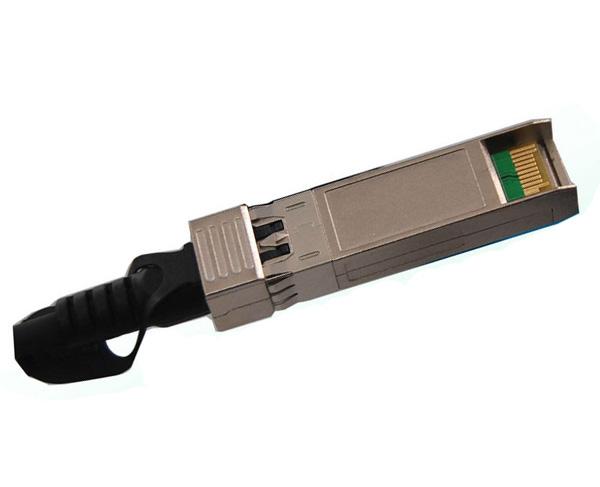

- Hot-pluggable SFP 20PIN footprint
- I/O Connector designed for high speed
- Differential signal applications
- Improved Pluggable Form Factor(IPF)
- Compliant for enhanced EMI/EMC performance
- Compatible to SFP+ MSA
- Temperature Range: 0~ 70 °C
- RoHS Compatible
Specification
| Cisco Genuine | SFP-H10GB-CU*M | Vendor Name | Hilink |
| Connector Type | SFP+ to SFP+ | Max Data Rate | 10Gbps |
| Cable Type | Passive Copper Cable | Wire AWG | AWG30/AWG24 |
| Cable Length | 0.5m-5m | Jacket Material | PVC(OFNR) |
| Temperature | 0 to 70°C | Compatibility | Cisco/Huawei/Mikrotik etc |
Applications
● 10Gigabit Ethernet
● Data center cabling infrastructure
● Storage Area Networks( SAN)
● Network Attached Storage
● Storage Servers
● 1G/2G/4G/8G Fiber Channel
- Electrical: SFF-8431, SFF-8083
- Mechanical: SFF-8432
- EEPROM: SFF-8472
10G SFP+ Copper Cables
| Part Number | Product Description |
| HL-SFP-10G-CU1M | SFP+ Direct Attach Passive Copper Cable 1 Meter |
| HL-SFP-10G-CU3M | SFP+ Direct Attach Passive Copper Cable 3 Meter |
| HL-SFP-10G-CU5M | SFP+ Direct Attach Passive Copper Cable 5 Meter |
| HL-SFP-10G-CU7M | SFP+ Direct Attach Active Copper Cable 7 Meter |
| HL-SFP-10G-CU10M | SFP+ Direct Attach Active Copper Cable 10 Meter |
