XFP-10GER-OC192IR 10G XFP Transceiver , 1550nm transceiver fiber optic 40KM
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
2-5 days
Brand:
HILINK
Product Description
This module can be make to be compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
1550nm 10G XFP ER Single Fiber Transceiver Multi Rate High Performance
DESCRIPTION :
The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for datacom and telecom applications.
| Transmitter (0~70℃@9.953Gb/s~11.1Gb/s) | ||||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Operating Date Rate | 9.95 | 11.1 | Gb/s | |||
| Ave. Output Power | Po | -1 | 2 | dBm | 1 | |
| Output Centre Wavelength | λ | 1530 | 1565 | nm | ||
| Disable Power | Poff | -30 | dBm | |||
| Extinction Ratio | ER | 8.2 | dB | 1 | ||
| Sidemode Supression Ratio | 30 | dB | ||||
| Rise/Fall Time (20%~80%) | Tr/Tf | 45 | ps | |||
| Dispersion penalty | 2 | dB | 1 | |||
| Generation Jitter 1(20KHZ-80MHZ) | 0.3 | UIp-p | 1 | |||
| Generation Jitter 2(4MHZ-80MHZ) | 0.1 | UIp-p | 1 | |||
| Optical Eye Mask 1 | GR-253-CORE/ITU-T G.691 | 1 | ||||
| Optical Eye Mask 2 | IEEE802.3ae | 2 | ||||
| Reeceiver (0~70℃@9.953Gb/s~11.1Gb/s) | ||||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Operating Date Rate | 9.95 | 11.1 | Gb/s | |||
| Overload | Po | 0.5 | dBm | |||
| Input Centre Wavelength | λ | 1270 | 1600 | nm | ||
| Receiver Sensitivity | Pmin | -16 | dBm | 1 | ||
| Stressed Sensitivity in OMA | -11.3 | dBm | 2 | |||
| LOS Assert | LosA | -30 | dBm | |||
| LOS De-assert | LosD | -18 | dBm | |||
| LOS Hysteresis | 0.5 | 4 | dB | |||
| Optical Return Loss | 14 | dB | ||||
| Jitter Tolerance | GR-253-CORE/ITU-T G.783 | 1 | ||||

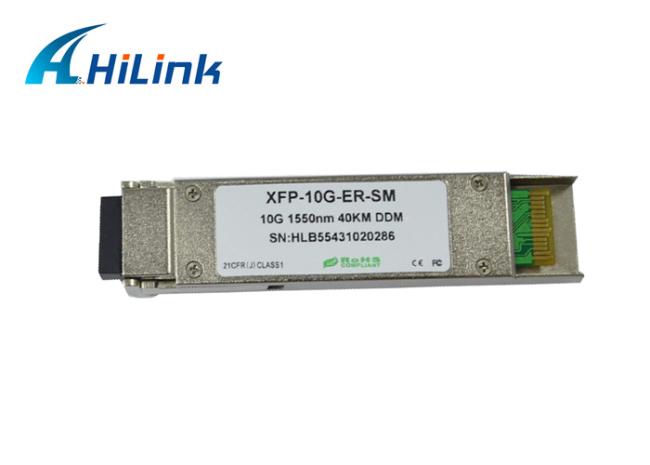

PRODUCT SHOW :
