10G SFP+ DWDM CH 17 - 61 80km Optical Transceiver Module Ethernet Switches
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
3-5 Working Days
Brand:
HILINK
Product Description
10G SFP+ DWDM CH 17 - 61 80km Optical Transceiver Module Ethernet Switches
Product Details

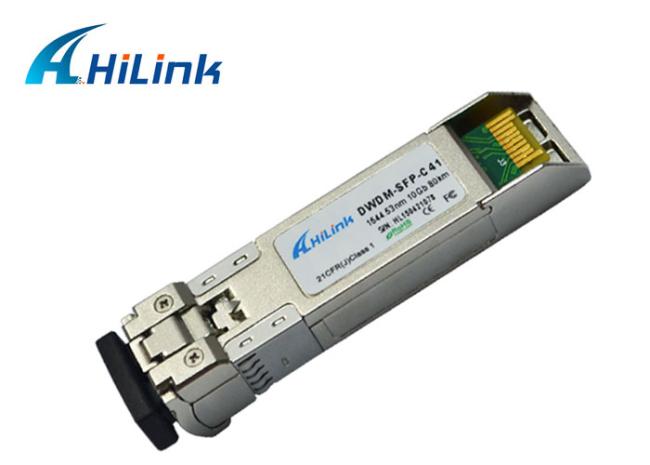

HILINK SFP+ DWDM 80km is a DWDM SFP+ optical transceiver module with 23dbm , 80KM reach
DWDM is Dense Wavelength Division Multiplexing. DWDM CWDM and WDM Transceiver Module are all based on the same concept of using multiplexing wavelengths on single fiber, but differ in the spacing of the wavelengths. DWDM MSA standard wavelength spacing is 0.8nm, for exp. by C Band MSA, there are 42 DWDM channels from 1560.61nm~ 1529.XXnm.
| Item No. | DWDM-SFP10G-80 | Vendor Name | Hilink |
| Form Type | SFP+ | Max Data Rate | 10Gbps |
| Wavelength | CH17~61 | Max Cable Distance | 80KM |
| Interface | LC duplex | Optical Components | EML APD |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | 0~5dBm | Receiver Sensitivity | <-23dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Our Working Shop
CE ROHS
Real Photo
