Compact Coarse Wavelength Division Multiplexer

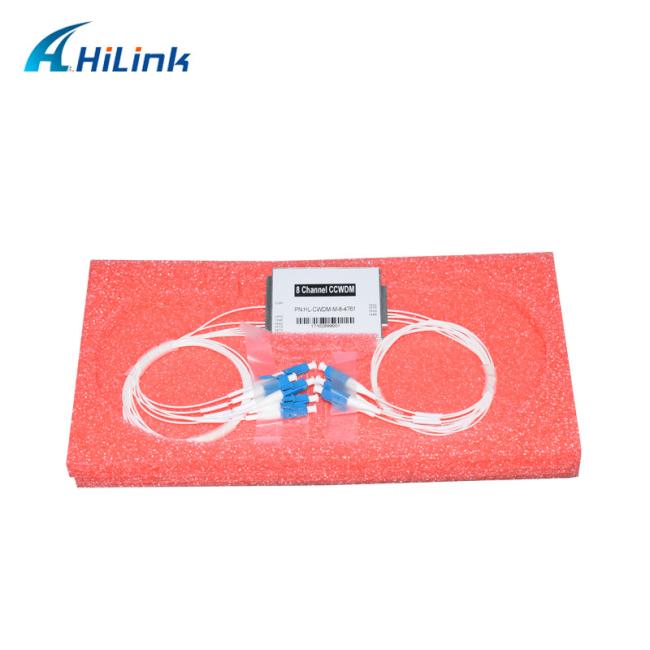

Mini Box Compat CWDM Module UPG 1470nm-1610nm 8CH CCWDM
Compat CWDM Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offer high stability and reliability, and has small package size. Its operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing.
Features:
Low Insertion Loss
Compact size
Ultra Stable and Highly Reliable
Extended Operating Temperature Available
Applications:
Optical Add/Drop Multiplexing
Telecom networks
Metro networks
Broadband Networks
| Parameter | 4 Ch | 4+UPG | 8 Ch | 8+UPG1 | 8+UPG2 | ||
| Operating Wavelength (nm) | 1260~1620 | ||||||
| Channel Wavelength (nm) | 1270,1290,...,1590,1610, or 1271,1291,...,1591,1611 | ||||||
| UPG Port Wavelength Range(nm) | NA | TBD | NA | 1260~1360 | 1260~1457 | ||
| Channel Spacing(nm) | 20 | ||||||
| Channel Passband (nm) | CWL+/-6.5nm | ||||||
| Insertion Loss(dB)* | ≤0.8 | ≤0.8 | ≤1.4 | ≤1.4 | ≤1.7 | ||
| Channel Ripple(dB) | ≤0.3 | ||||||
| Isolation(dB) | Adjacent | >30 | |||||
| Non-adjacent | >40 | ||||||
| UPG Isolation(dB) | NA | >15 | NA | >15 | >15 | ||
| Polarization Mode Dispersion(PS) | ≤0.2 | ||||||
| Polarization Dependent Loss(dB) | ≤0.2 | ||||||
| Directivity(dB) | >45 | ||||||
| Return Loss(dB) | >45 | ||||||
| Maximum Power Handling(mW) | 500 | ||||||
| Operating Temperature(℃) | -5~+70 | ||||||
| Storage Temperature(℃) | -40~85 | ||||||
| Fiber Type | G657A1 | ||||||
| Connector | TBD | ||||||
| Package dimension(mm) | L55 x W35 x H8 or L46 x W28 x H6 | ||||||

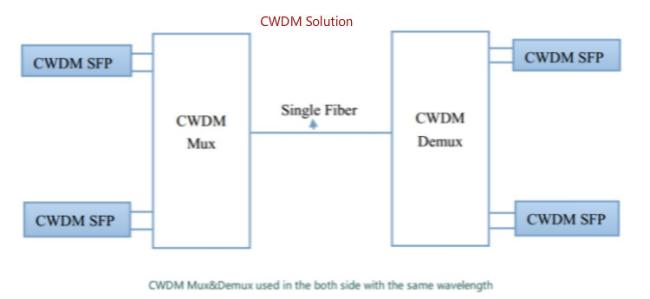

CWDM solution:
