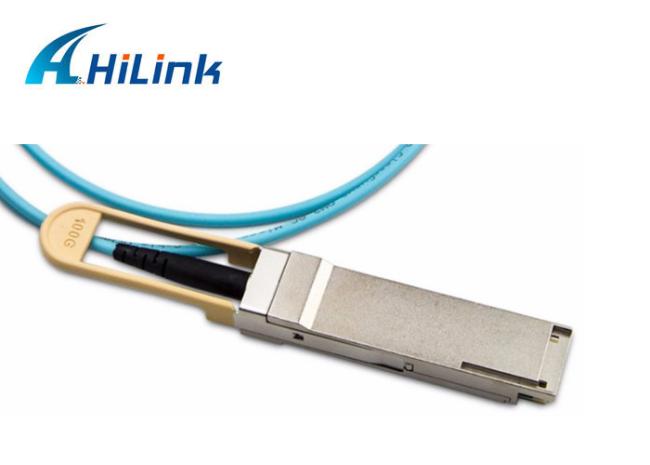

100G QSFP28 to QSFP28 AOC Active Optical Cable 3 Meter Four channel
QSFP28 to QSFP28 AOC 3m
100G QSFP28 AOC is a 100 Gb/s parallel active optical cable for storage, data, and high-performance computing interconnectivity. It transmits error-free parallel 4x25 Gb/s data over multimode fiber (MMF) cables. Based on VCSEL array technology and designed with QSFP28 MSA-compliant high-density connectors, this cable is compact, lightweight, and low power. The 100G QSFP28 AOC is ideally suited for datacenter reaches up to 100m for InfiniBand EDR, 4x25, and 100G Ethernet.
Features
Four-channel full-duplex active optical cable
Transmission data rate up to 26Gbit/s per channel
Reliable VCSEL array technology using multimode fiber
Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,70m
Low power consumption <3.5W
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor
Applications for 100G QSFP28 Active Optical Cable
100G Ethernet
Datacenter
Infiniband QDR/DDR/SDR
4G/8G/10G Fibre Channel
AOC Product Series
Cable Length can be done as customer required.
| Part Name | Product Description |
SFP-AOC-1m |
10GBASE SFP+ AOC Cable 1m |
| SFP-AOC-2m | 10GBASE SFP+ AOC Cable 2m |
| SFP-AOC-3m | 10GBASE SFP+ AOC Cable 3m |
| SFP-AOC-xxm | 10GBASE SFP+ AOC Cable xxm |
| QSFP-AOC-1m | 40GBASE QSFP+ AOC Cable 1m |
| QSFP-AOC-2m | 40GBASE QSFP+ AOC Cable 2m |
| QSFP-AOC-3m | 40GBASE QSFP+ AOC Cable 3m |
| QSFP-AOC-xxm | 40GBASE QSFP+ AOC Cable xxm |
| QSFP-4XSFP-AOC-1m | 40GBASE QSFP+ 4X10G SFP+ AOC Cable 1m |
| QSFP-4XSFP-AOC-2m | 40GBASE QSFP+ 4X10G SFP+ AOC Cable 2m |
| QSFP-4XSFP-AOC-3m | 40GBASE QSFP+ 4X10G SFP+ AOC Cable 3m |
| QSFP-4XSFP-AOC-xx m | 40GBASE QSFP+ 4X10G SFP+ AOC Cable xxm |
| 100G-QSFP28- AOC-1m | 100G QSFP28 AOC Cable 1m |
| 100G-QSFP28- AOC-xxm | 100G QSFP28 AOC Cable xxm |
