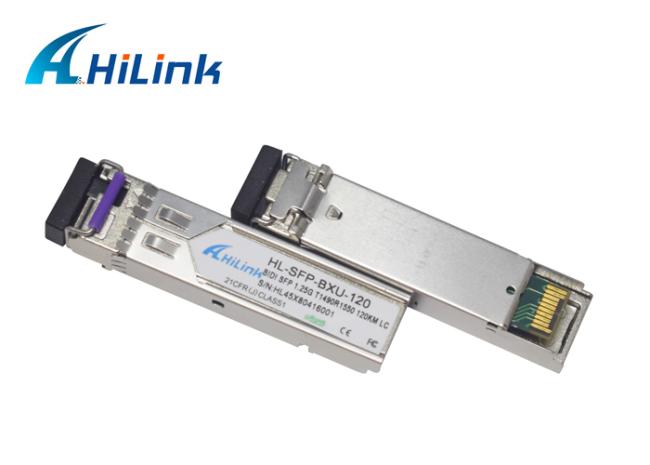

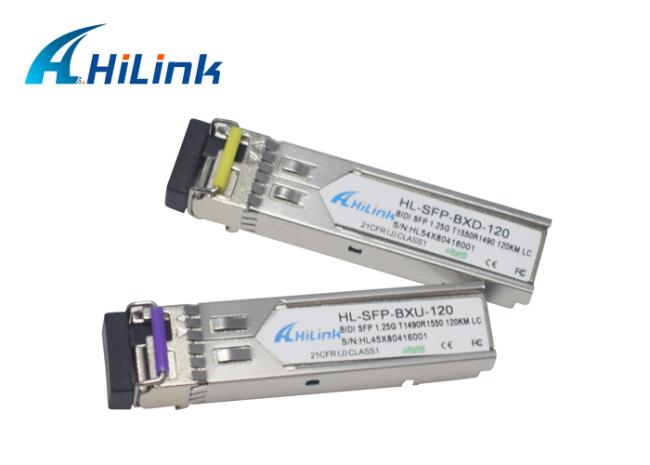

Single fiber BIDI 1000base 1.25G SFP Transceiver Module 120KM LC Connector WDM
Compatible Single fiber BIDI 1000base 1.25G SFP Module 120KM LC Connector WDM SFP Fiber Transceiver
Product Features
- Up to 1.25Gb/s dual data links
- Hot-pluggable SFP footprint
- 1550nm DFB laser transmitter
- APD Receiver
- Duplex LC connector
- Up to 120km on 9/125µm SMF
- Metal enclosure for lower EMI
- Single +3.3V power supply
- Low power dissipation <700mW
- Commercial operating temperature range: 0°C to +70°C
Applications
1.Gigabit Ethernet
2.1.06 Gb/s Fibre Channel
General
120km Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form
Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in
IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
B/D Transceiver Series:
| GLC-BX-D20 SC | 1.25G DFB Tx1490nm/Rx1310nm 20km LC/SC BIDI |
| GLC-BX-U20 SC | 1.25G FP Tx1310nm/Rx1490nm 20km LC/SC BIDI |
| GLC-BX-U40 SC | 1.25G DFB Tx1310nm/Rx1490nm 40km LC/SC BIDI |
| GLC-BX-D40 SC | 1.25G DFB Tx1490nm/Rx1310nm 40km LC/SC BIDI |
| GLC-BX-U70 SC | 1.25G DFB Tx1490nm/Rx1550nm 70km LC/SC BIDI |
| GLC-BX-D70 SC | 1.25G DFB Tx1550nm/Rx1490nm 70km LC/SC BIDI |
| GLC-BX-U80 | 1.25G DFB Tx1490nm/Rx1550nm 80km LC/SC BIDI |
| GLC-BX-D80 | 1.25G DFB Tx1550nm/Rx1490nm 80km LC/SC BIDI |
| GLC-BX-U120 | 1.25G DFB Tx1490nm/Rx1550nm 120km LC/SC BIDI |
| GLC-BX-D120 | 1.25G DFB Tx1550nm/Rx1490nm 120km LC/SC BIDI |
| GLC-FE-100BX-U | 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 10km |
| GLC-FE-100BX-D | 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 10km |
| GLC-FE-100BX-U20 | 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 20km |
| GLC-FE-100BX-D20 | 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 20km |
| GLC-FE-100BX-U40 | 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 40km |
| GLC-FE-100BX-D40 | 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 40km |
| GLC-FE-100BX-U80 | 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 80km |
| GLC-FE-100BX-D80 | 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 80km |
