Long Distance 10KM QSFP+ Transceiver Stable Data Rate 100G 1310nm Wavelength
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
2-7 working days
Brand:
HILINK
Product Description
Duplex LC DDM 1310nm 10Km 100G QSFP28 LR4
Features :
- Duplex LC receptacle optical interface
- Single +3.3V power supply
- Hot-pluggable QSFP28 MSA form factor
- 4x28G Electrical Serial Interface (CEI-28G-VSR)
- AC coupling of CML signals
- Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
- Receiver: 4x25Gb/s PIN ROSA
- Low power dissipation(Max:4W)
- Built in digital diagnostic function
- Operating case temperature range:0℃ to 70℃
- Compliant with 100GBASE-LR4
- I2C Communication Interface
Applications :
-
100GBASE-LR4
-
Infiniband QDR and DDR interconnects
-
100G Datacom connections
QSFP Series :
| ordering information | |
| Part Number | Product Description |
| HiLink-QSFP-40G-SR4 | QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M |
| HiLink-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
| HiLink-QSFP-100G-SR4 | QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M |
| HiLink-QSFP-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM |

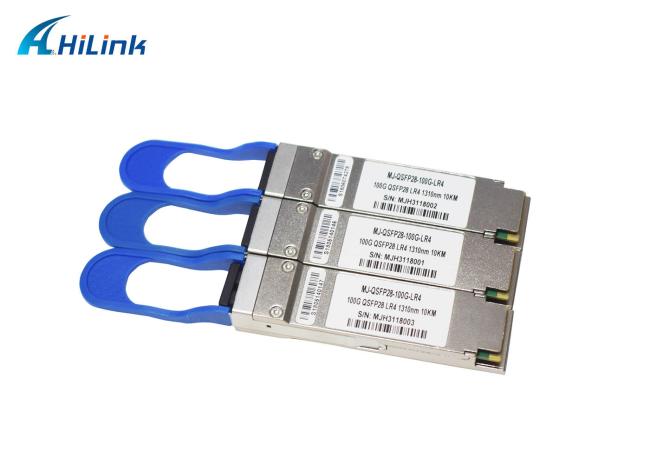

Product Pictures:
Shipment :
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
