Duplex LC QSFP+ Transceiver 40 GBASE -ER4 1310nm Wavelength 3.3V QSFP-40G-ER4
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
1-4 days
Brand:
HILINK
Product Description

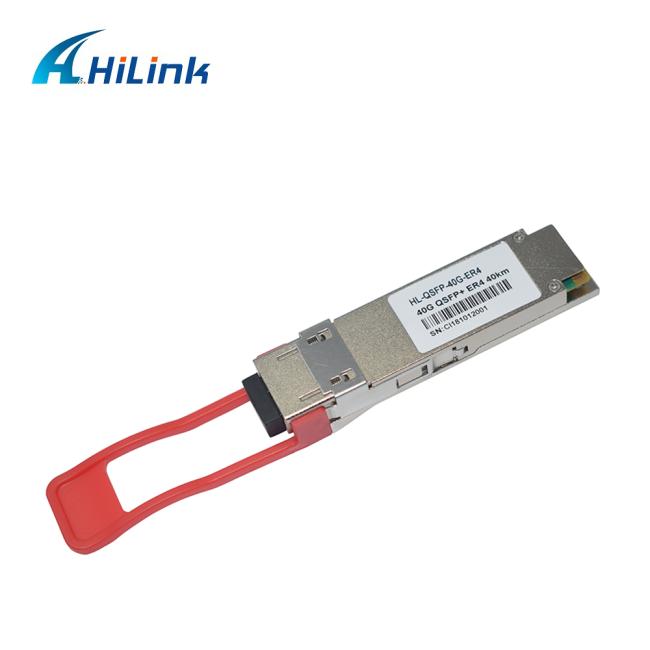

QSFP-40G-ER4 Duplex LC 40GBASE-ER4 40G 40km QSFP+ ER4
The 40G QSFP ER4 optical transceiver integrates the transmit and receive path onto one module. Four electric-absorption modulated lasers (DFBs) with 1270~1330nm center wavelengths, which multiplexed/demutiplexed into a single-mode fiber through an industry-standard LC connector. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver.
Features:
4 CWDM channels are 1271, 1291,1311 and 1331 nm
Single +3.3V power supply
QSFP+ MSA compliant
Up to 40km transmission
4 CWDM channels are 1271, 1291,1311 and 1331 nm
Single +3.3V power supply
QSFP+ MSA compliant
Up to 40km transmission
Operating case temperature: 0~70C
Maximum 3.5W operation power
RoHS compliant
Compliant with IEEE802.3ba
Maximum 3.5W operation power
RoHS compliant
Compliant with IEEE802.3ba
Compliant with QSFP+ MSA: SFF-8436
Applications:
40G Ethernet
Infiniband 4X SDR DDR QDR
40G Telecom connections
Applications:
40G Ethernet
Infiniband 4X SDR DDR QDR
40G Telecom connections
Compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
