Steel Tube Type Fiber Optic Wdm FWDM TX1550 RX1310/1490nm CE ROHS Approval
Hilink Free Shipping FWDM Filter Steel Tube type TX1550 RX1310/1490nm SC APC connector
Performance Specification
| Parameter | FWDM 3/45 | ||
| Pass Band Wavelength Range (nm) | 1260-1360 | ||
| Reflection Band Wavelength Range (nm) | 1480-1620 | ||
| Insertion Loss (dB) | Reflect Channel | ≤0.6 | |
| Pass Channel | ≤0.8 | ||
| Channel Ripple(dB) | <0.3 | ||
| Isolation(dB) | Reflect Channel | > 15 | |
| Pass Channel | >30 | ||
| Insertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||
| Polarization Dependent Loss (dB) | <0.1 | ||
| Polarization Mode Dispersion (ps) | <0.1 | ||
| Directivity (dB) | >50 | ||
| Return Loss (dB) | >50 | ||
| Maximum Power Handling(mW) | 500 | ||
| Operating Temperature (℃) | 0 ~+70 | ||
| Storage Temperature (℃) | -40 ~+85 | ||
| Package Dimension (mm) |
1.Φ5.5 x L38(for 900um Loose tube or bare fiber ) 2.L90xW20xH9.5(for 2.0 mm or 3.0mm Cable) |
||

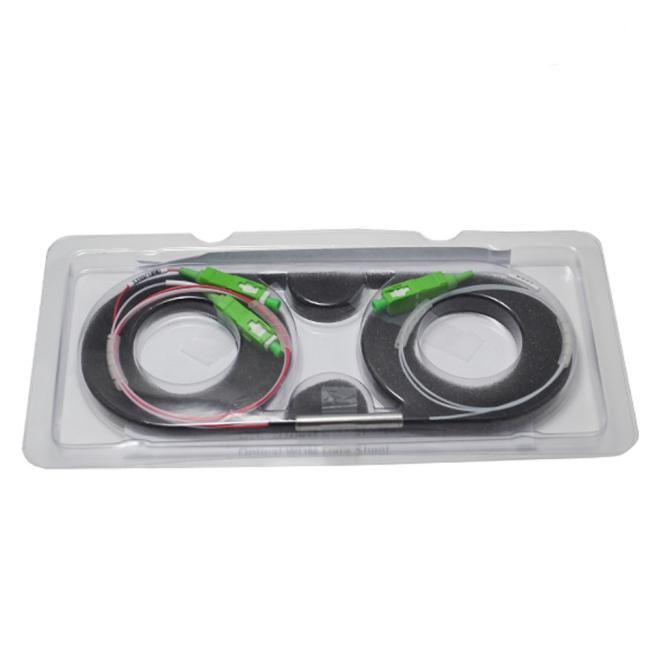

Picture Show:
FAQ:
1. Q: Do you sell second-hand products?
A: No.All our products are brand new,we never use second-hand components.
2. Q: What payment terms do you accept?
A: T/T,Paypal,Western Union are acceptable.
3. Q: What are the shipping ways can you offer?
A: Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
4. Q: Do your products come with warranty?
A: Yes,We provide 3 years warranty for all our products from the date of shipment.
5. Q: What devices can your products compatible with?
A: Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
6. Q: How to place an order?
A:1> Order details confirmed,please tell us the model and quantity you need.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm and ship the goods, then tracking number will be sent to you promptly.
4> We will help to track your goods until you receive them safely.
Packaging
- We provide safe and reliable packaging: Static bag, Plastic bag, Retail box or by required
- Delivery time:1-5 working days
Shipment
- International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 1-5 days.
