3.3V Power Supply Optical Transceiver Module 100G QSFP28 LR4 1310nm 25km LC Connector

Price Negotiable
Price: Negotiable
MOQ: 1pcs
Delivery Time: Negotiable
Brand: HILINK
Product Description

100G QSFP28 CLR4 100G CWDM4 1310nm 10km Compatibility Module













Features

Dual LC receptacle optical interface
Single +3.3V power supply
Hot-pluggable QSFP28 MSA form factor
4x25G Electrical Serial Interface
Compliant with 4x28G(CEI-28G-VSR)
AC coupling of CML signals
Receiver: 4x25Gb/s PIN ROSA
Low power dissipation(Max:3W)
Built in digital diagnostic function
Operating case temperature range:0℃ to 70℃
Compliant with 100GBASE-LR4
I2C Communication Interface



Model QSFP28-LR4-100G Vendor Name Hilink
Connector Type QSFP28 Max Data Rate 100Gbps
Cable Type SMF Optical Components 4x VCSEL
Interface LC Commercial Temperature Range 0 to 70°C (32 to 158°F)
HTS-Harmonized Code 8544700000 Distance 25KM



Applications

100GBASE-LR4

Infiniband QDR and DDR interconnects
100G Datacom connections







Hilink Advantage



1.Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3.Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4.We provide 3 years warranty for all our products from the date of shipment.
5.All of our products get through CE,ROHS,FCC.
6.We also provide DWDM CWDM WDM with optical solutions.








Warranty

Hilink can provide the both ourselves forwarder and customer appointed forwarder in the way of by FedEx, DHL, UPS, TNT and EMS.
Some items in stock can be shipped out the same day . The Items with no stock, then the shipment would be done in 3-7 days.
DHL will take 2-4 business days for delivery and FedEx just needs 1-3 business days.
For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.



We promise all the advertised optical transceivers are brand new with new components and parts.
We absolutely never use old and refurbished materials.
All the optical transceivers have been through functional test and aging test.
We provide 3 years warranty for all the optical transceivers from the date of shipment.

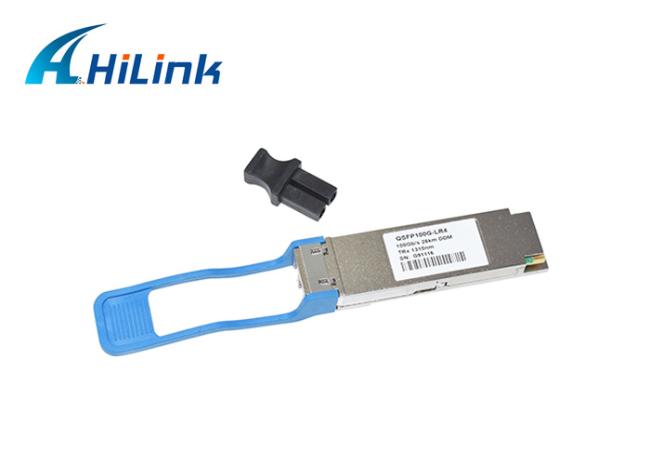

True photo show











Mechanical Dimensions







Company Information:











Related products:










What we supply

We supply wide range of high quality optical transceivers and passive CWDM/DWDM Mux/Demux modules. The optical modules are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc
