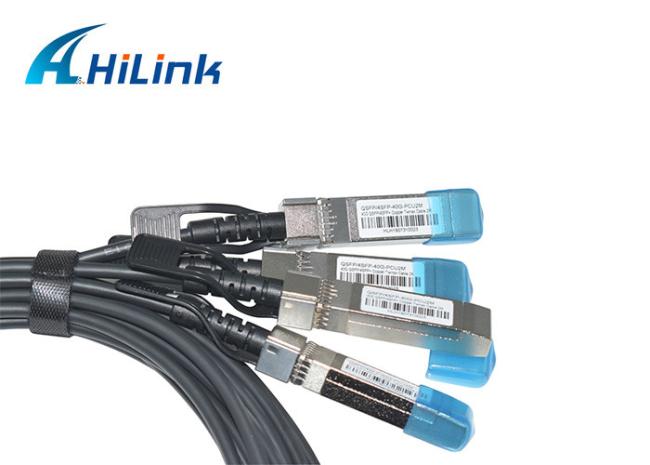

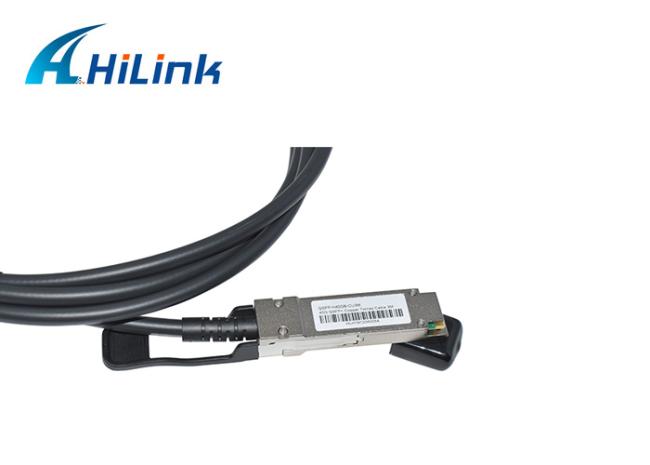

40G QSFP To 4SFP10G breakout Passive Direct Attach Copper Cable DAC 3M Data Center Switch

General Description

Hilink QSFP to 4x SFP+ Splitter Cable Juniper HL-QSFP-DACBO-3M offers IT professionals a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers.

For typical applications, users can install this splitter cable between an available QSFP port on their 40 Gigabit/s rated switch and feed up to four upstream 10GbE-SFP+ enabled switches. Each QSFP-SFP+ splitter cable features a single QSFP connector (SFF-8436) rated for 40-Gb/s on one end and 4x SFP+ connectors (SFF-8431), each rated for 10-Gb/s, on the other.

Features
•

• Part Number: HL-QSFP-4SFP10G-xM
• Form Factor: TWINAX CABLE,
• Assembly: Passive Direct Attach Cable (DAC)
• Connector A: QSFP+
• Connector B: 4 x SFP+
• Length:15.6 feet
• Cable Type: Copper DAC
• Data Rate: Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)
• Hot Swappable: Yes
• Temperature Range: Commercial 0°C to 70°C

Application

4 independent full-duplex channels;
1G to 10.5 Gbps data rate per channel;
Support hot-pluggable;
Available in lengths of 1, 3, and 5m;
Metal with lower EMIl;
Excellent ESD protection;
Single 3.3V power supply;
RoHS Compliant and Lead-Free;
Compliant with IEEE802.3ba;
Compliant with QSFP+ MSA: SFF-8436.

Benefits
• Cost-effective copper solution
• Lowest total system power solution
• Lowest total system EMI solution
• Optimized design for Signal Integrity

Applications

• 40G Ethernet
