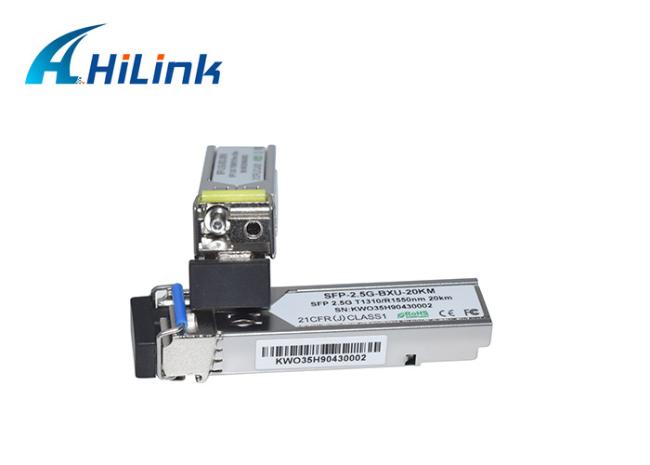

STM-16 2.5G BIDI WDM 1310nm/1550nm LC SFP Module Compatible With Huawei

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 2.488Gbps/2.125Gbps and 20km transmission distance with SMF. They are RoHS compliant and lead-free.

Product Features

• Single LC receptacle optical interface compliant
• Hot-pluggable SFP footprint
• 1310nm DFB laser transmitter
• RoHS compliant and Lead Free
• Up to 20 km on 9/125um SMF
• Metal enclosure for lower EMI
• Single +3.3V power supply
• Low power dissipation <700mW
• Commercial operating temperature range: 0°C to +70°C

Applications

• SDH STM-16 and SONET OC-48 system
• Fiber Channel
• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems
