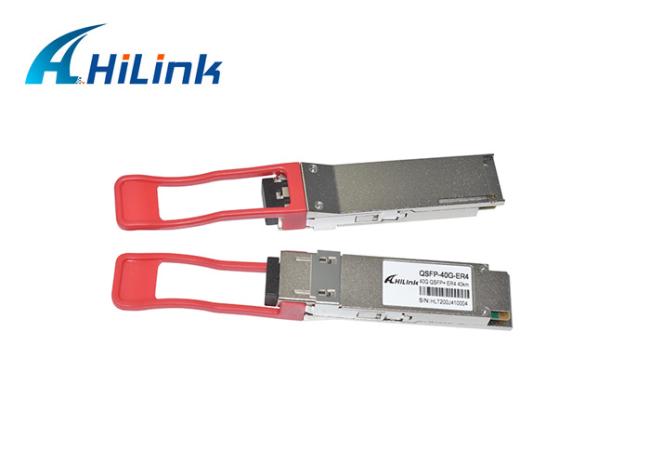

Hilink 5G QSFP+ 4CWDM 40G 40km 1270~1330nm Transceiver Hot Pluggable Duplex LC Connector Single mode

Features:

² 4 CWDM lanes MUX/DEMUX design

² Up to 11.2Gbps per channel bandwidth

² Aggregate bandwidth of > 40Gbps

² Duplex LC connector

² Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard

² QSFP MSA compliant

² Up to 40km transmission

² Compliant with QDR/DDR Infiniband data rates

² Single +3.3V power supply operating

² Built-in digital diagnostic functions

² Temperature range 0°C to 70°C

² RoHS Compliant

Applications:

² Rack to rack

² Data centers Switches and Routers

² Metro networks

² Switches and Routers

² 40G BASE-ER4 Ethernet Links

Description:

The HLQSFP40 is a transceiver module designed for 40Km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.

The HLQSFP40 is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
