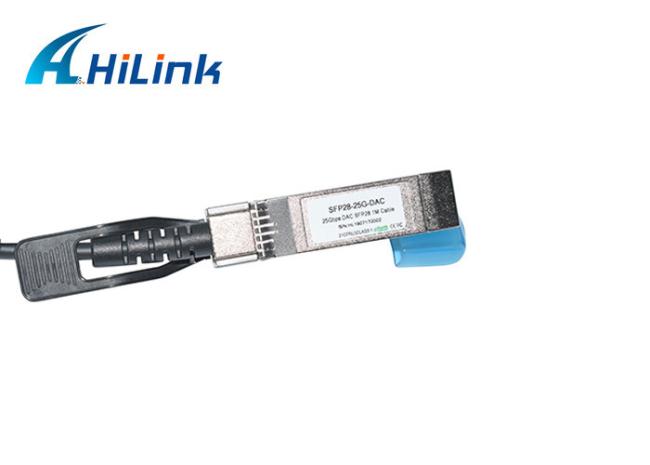

Passive DAC Twinax 5G 30AWG Direct Attach Copper Cable SFP28

1m 30AWG 25G SFP28 Passive DAC Twinax Direct Attach Copper Cable

General Description

The SFP28 25G Direct Attach Cables are compliant with SFF-8432 and SFF-8402 specifications. Various choices of wire gauge are available from 30 to 26 AWG with various choices of cable length (up to 5m).

Features

• Up to 25.88243 Gbps data rate

• Up to 5 meter transmission

• Hot-pluggable SFP 20PIN footprint

• Improved Pluggable Form Factor(IPF)

compliant for enhanced EMI/EMC

performance

• Compatible to SFP28 MSA

• Compatible to SFF-8402 and SFF-8432

• Temperature Range: 0~ 70 °C

Benefits

• Cost-effective copper solution

• Lowest total system power solution

• Lowest total system EMI solution

• Optimized design for Signal Integrity

Applications

25G Ethernet

Product Description

• The SFP28 passive cable assemblies are high performance, cost effective I/O solutions for 25G Ethernet. SFP28 copper cables allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget
