Compatible with QSFP-40G-ER4 40G QSFP+ 1310nm 25-30km QSFP+ Optical Transceiver Module

• This product is a transceiver module designed for 30km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
  The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 148-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.



  Features:
  4 CWDM channels are 1271, 1291,1311 and 1331 nm
  Single +3.3V power supply
  QSFP+ MSA compliant
  Up to 30km transmission
  Digital diagnostic capabilitie

  CML compatible electrical I/O

  Single +3.3V power supply

  Operating case temperature: 0°C to 70°C(Standard), -40°C to 85°C (Industrial)

  Applications:
  40G Ethernet
  Infiniband DDR QDR
  40G Telecom connections

QSFP Series :

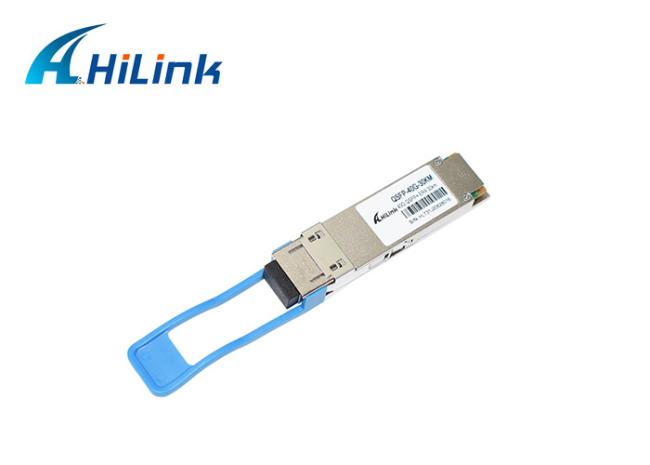

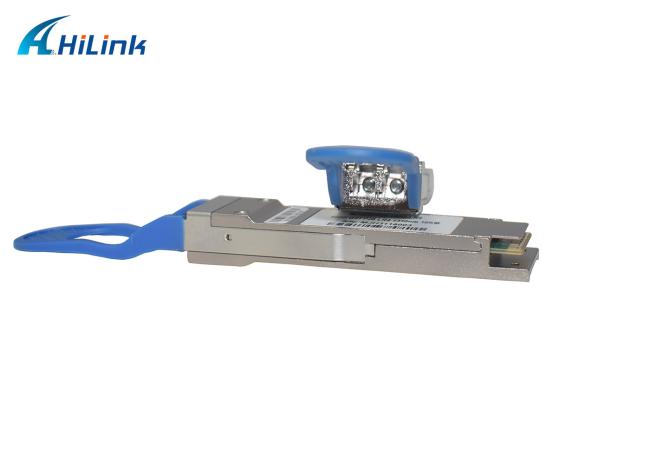

Product Pictures:

Shipment :

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
