Hilink 200G QSFP56 FR4 QSFP Transceiver Module 2km 1310nm CWDM4 DOM Duplex LC SMF
Price:
Negotiable
MOQ:
2pcs
Delivery Time:
2~4 working days
Brand:
HILINK
Product Description

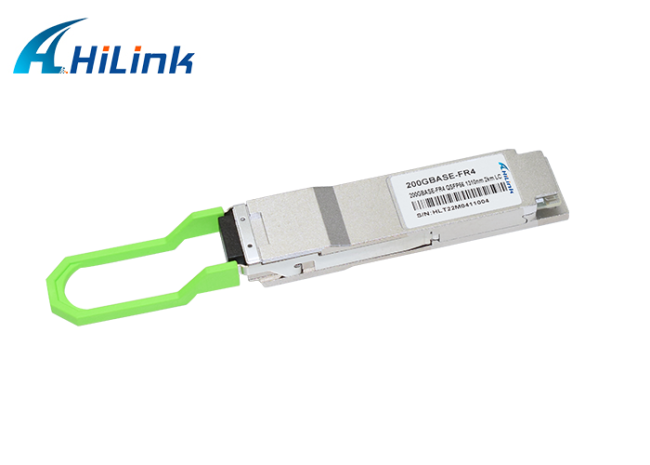

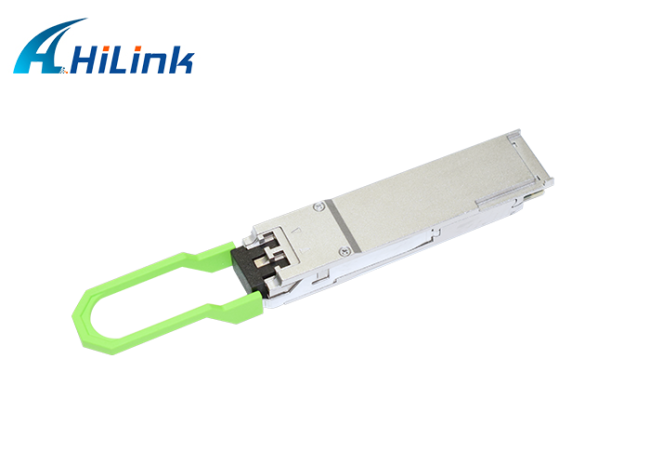

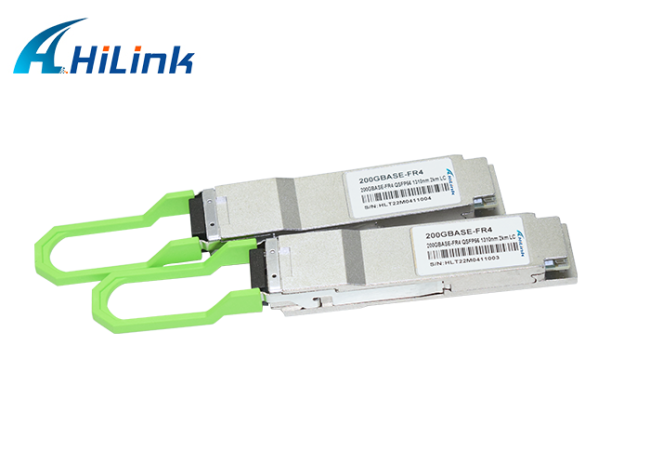

Hilink 200G QSFP56 FR4 2km 1310nm CWDM4 DOM Duplex LC SMF
200G QSFP56 FR4 2km
Hilink QSFP-200G-FR4 Compatible QSFP56 Transceiver Module is designed for 200GBASE Ethernet throughput up to 2km over single-mode fiber (SMF) using a wavelength of 1295nm to 1309nm with duplex LC connectors.
This transceiver is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024, and SFF-8679 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 200G Ethernet, Data Center, and Cloud Networks.
Features

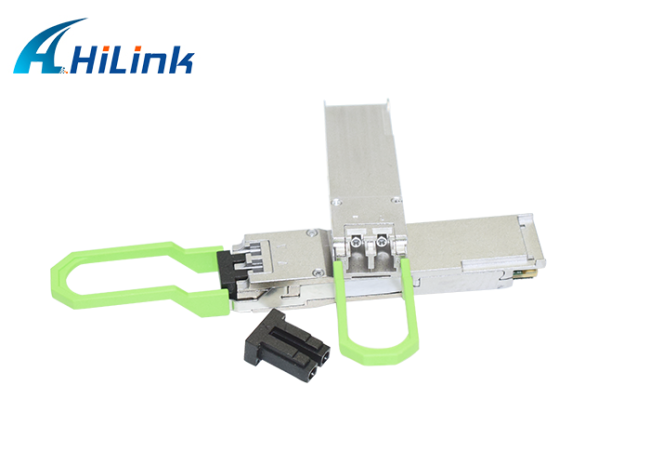

The optical connectivity is based on two Singlemode Fiber (SMF) LC connectors, one for Tx and one for Rx. The Tx and Rx each consist of 4 50Gbps Coarse Wavelength Division Multiplex(CWDM) channels, whose wavelengths are in the 1310nm range. The 200G QSFP56 FR4 transceiver is designed for applications with a reach up to 2km and with the use of FEC.
Applications
- 200G BASE-FR4 Ethernet
-
Item
Description
Transceiver form factor QSFP56 Transmission speed 200GE Center wavelength (nm) 1271nm, 1291nm, 1311nm ,1331nm Standards compliance compatible with the 200GBASE-ER4 Connector type LC Dual Applicable cable and maximum transmission distance reach up to2km and with the use of FECTransmit power (dBm) Maximum receiver sensitivity (dBm) < -8.2dBm Overload power (dBm) 4.7dBm Extinction ratio (dB) 3.5dBm Operating temperature 0°C to 70°C (32°F to 158°F) Part number HL-Q200G-FR4
If you have any questions, please click "Contact Now" and send your questions, we will have a professional to provide answers. Thank you!
| Part Number | Data Rate | Distance | Wavelength | Output Power | Sensitivity | Remark |
| HQ28-SR-M85-X1D | 100Gbps | MM 100m (OM4) |
850nm | -8.4 ~ +2.4dBm | -10.3dBm | QSFP28-100G-SR4 |
| HQ28-LR-L13-10D | 100Gbps | SM 10km | 1310nm | -4.3 ~ +4.5dBm | -10.6dBm | QSFP28-100G-LR4 |
| HQ28-LR-L13-10C1 | 100Gbps | SM 10km | 1310nm | -4.3 ~ +4.5dBm | -10.6dBm | QSFP28 100G-LR4-Ethernet |
| HQ28-ER-L13-40D | 100Gbps | SM 40km | 1310nm | -2.9 ~ +4.5dBm | -16.9dBm | QSFP28 100G-ER4 |
| HQ28-K7-L13-xxx | 100Gbps | SM 2km | 1310nm | -6.5 ~ +2.5dBm | -11.5dBm | QSFP28 100G-CWDM4 |
The 25g~100G Series
| 25G SFP28 SR4 | 25Gbps 850nm SFP28 transceiver 100M |
| QSFP-40G-SR4 | QSFP-SR4, MMF, 850nm, 150M, MPO |
| QSFP-40G-CSR4 | QSFP+, MMF, 850nm, 300M (OM3) - MPO |
| QSFP-40G-LR4 | QSFP-LR4, SMF, 1270nm~1330nm,15KM LC |
| QSFP-40G-PSM-IR4 | QSFP+-IR4,SMF ,1310NM 2KM MPO |
| 40G QSFP+ PSM 10KM | QSFP+-LR4,SMF ,1310NM 10KM MPO |
| 100G QSFP28 SR4 | 100GBASE-SR4 QSFP28 |
| QSFP28 CWDM4 2KM | 100G QSFP28 CWDM4 2KM 1271~1331 |
| QSFP28 CWDM4 500M | 100G QSFP28 CWDM4 500 1271~1331 |
| QSFP28 PSM4 1310nm 2km | QSFP28 PSM4 1310nm 2km MPO SMF |
| 25G SFP28 AOC 1M | 25Gbps 850nm Multimode SFP28 AOC 1~100M |
| 25G SFP28 DAC SFF-8402 | 25G SFP28 to SFP28 DAC 1m 3m 5meter |
| 40G QSFP+ AOC 1M | QSFP-AOC Active 40Gbase 1~100meter |
| 40G QSFP+ DAC 1M | QSFP SFF8436 Passive Cable 1~5M |
| 100G QSFP28 TO QSFP28 DAC | 1M 2M 3M 5M SFF-8665 100G QSFP28 Passive |
| 100G QSFP28-SR4 AOC 1M | 100GBASE-SR4 QSFP28 AOC Fiber |
Hilink 200G QSFP56 FR4 2km 1310nm CWDM4 DOM Duplex LC SMF QSFP Optics
