Hilink 10G SFP+ BIDI WDM 40km Fiber Optic Transceiver Module 1270nm 1330nm Hot Pluggable
Hilink 10G SFP+ BIDI WDM 40km TX1270 RX 1330 Or TX 1330 RX 1270 Fiber Optic Transceiver Module
Features
Up to 11.1Gbps Data Links
Up to 40km transmission on SMF
Power dissipation<1.5W
1270nm DFB laser and PIN receiver
2-wire interface with integrated Digital Diagnostic monitoring
EEPROM with Serial ID Functionality
Hot-pluggable SFP+ footprint
Compliant with SFP+ MSA with LC connector
Single + 3.3V Power Supply
Case operating temperature: 0ºC~+70ºC
Applications
10GBASE-BX at 10.3125 Gb/s
10GBASE-BX at 9.953 Gb/s
Standard
Compliant with SFF-8472
Compliant to SFF-8431
RoHS Compliant.
BiDi(WDM) Transceivers

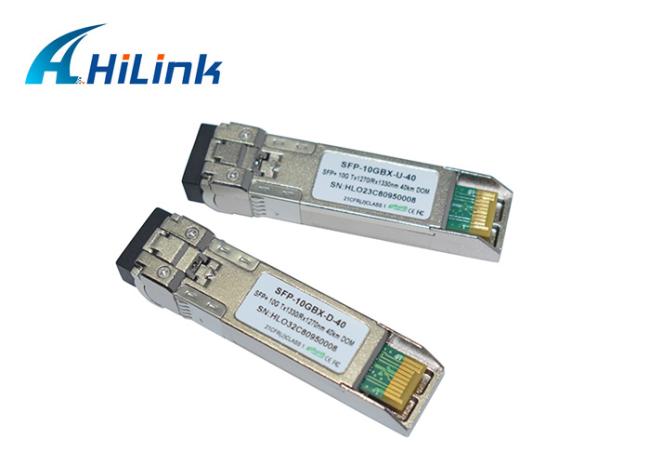

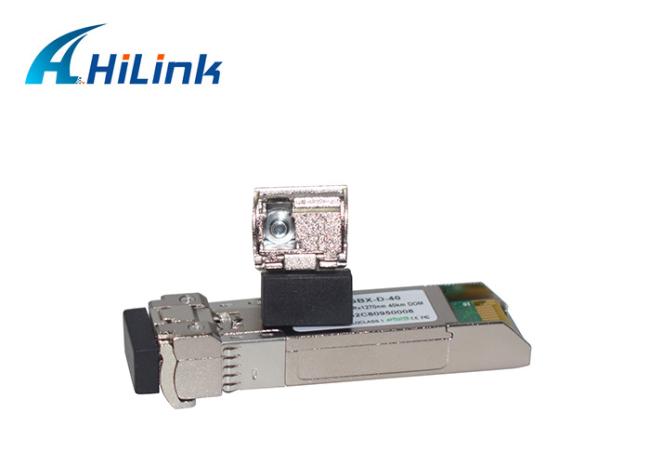

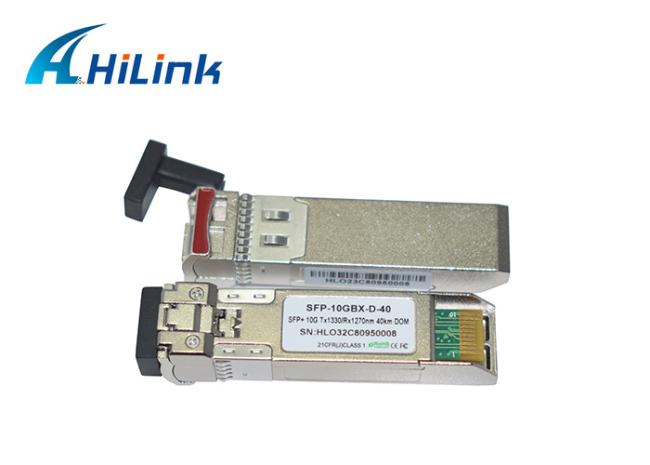

Real Picture

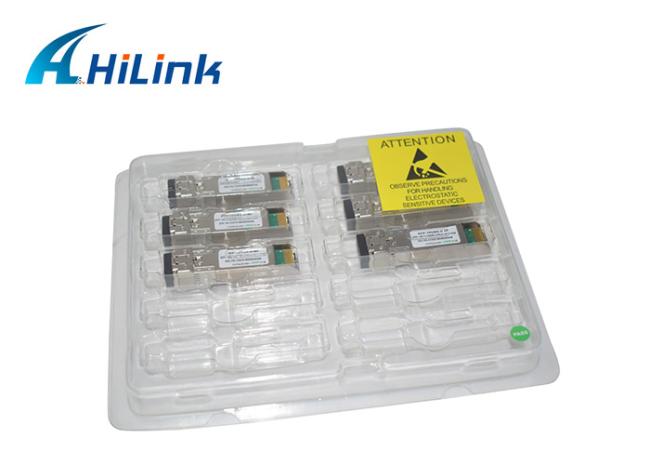

Package & Shipping
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
