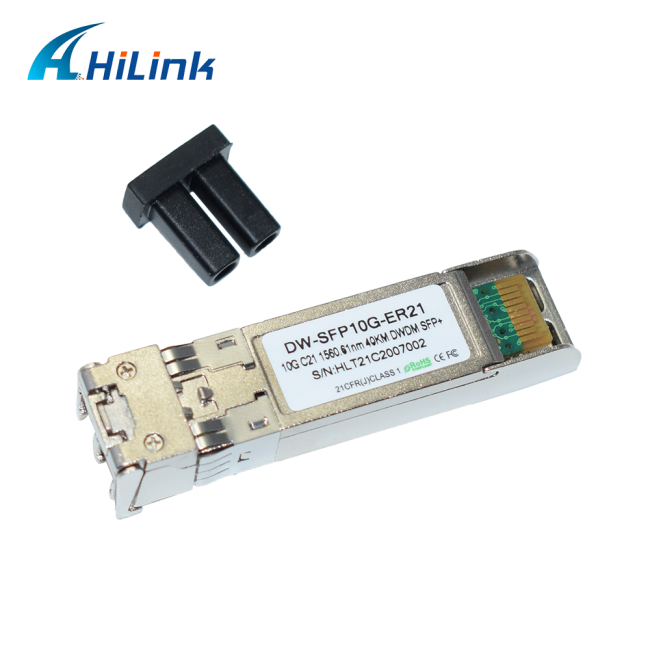

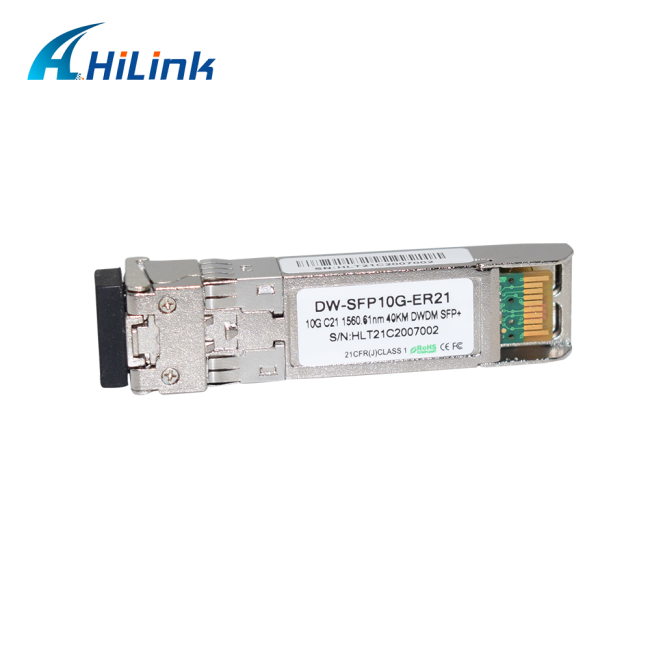

OEM 10G DWDM 40KM CH21 1560.61nm SFP+ Transceiver Module DDM LC Duplex

Hilink 10G DWDM SFP+ ER optical transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over Single Mode fiber.

Features

• Supports 9.95 to 11.3 Gb/s bit rates

• Duplex LC connector

• Hot pluggable SFP+ footprint

• Cooled EML transmitter and PIN-TIA receiver

• Applicable for 40km SMF connection

• Low power consumption, < 1.2W

• 100 GHz channel spacing

• Digital Diagnostic Monitor Interface

• Optical interface compliant to ITU-T 694.1& G.698.1

• Electrical interface compliant to SFF-8431& SFF-8432

• Operating case temperature: Commerical:0 to 70 °C

                                                  Industrial:-5 to 80 °C

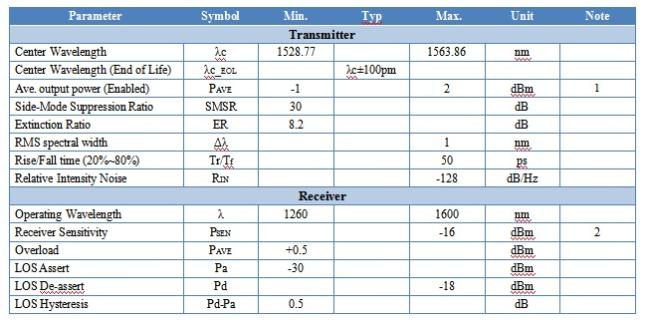

Specifications & Parameters

Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Applications

• 10G Ethernet
• 2x,4x, 8x Fiber Channel
• ITU-T G.698.1
• Other

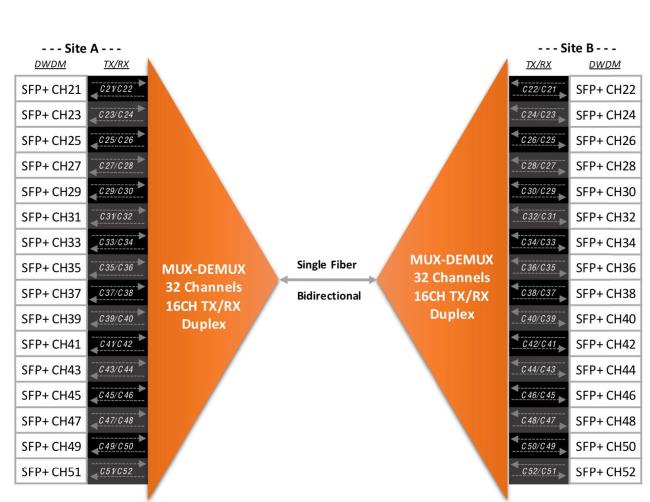

DWDM Solution Example

Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
