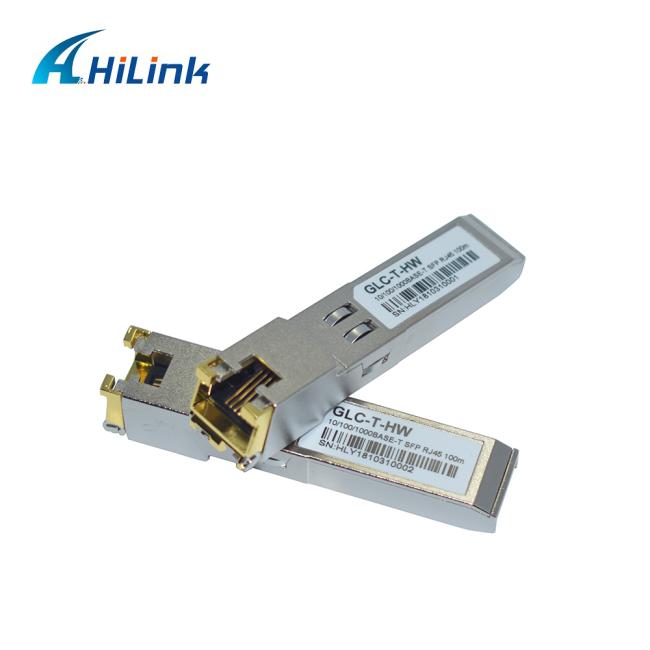

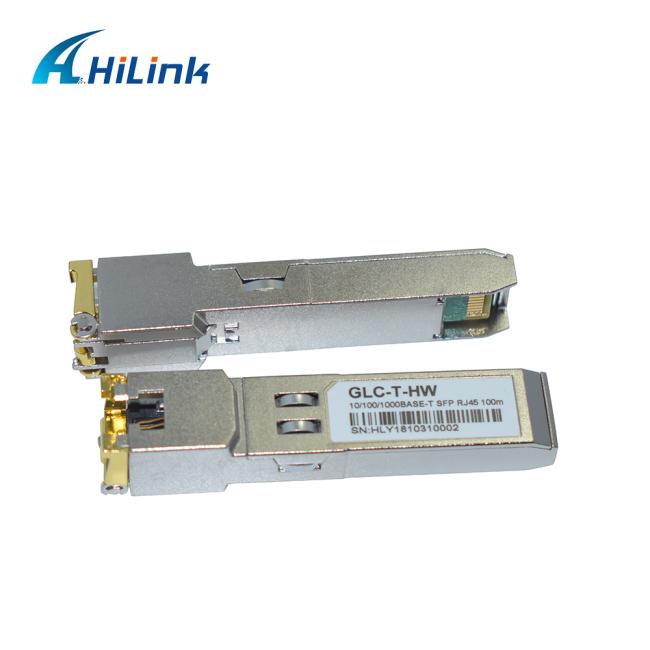

Copper 100BASE-T SFP RJ45 Industrial Grade

Hilink 100BASE Copper Small Form Pluggable (SFP) transceiver module is specifically designed for fast Ethernet 10/100 BASE-T Rj45 links over Cat5 copper cable, converting 100Base-FX NRZI port interface to 10/100Base-TX interface with RJ45 connector. The transceiver module is compliant with the SFP MultiSource Agreement (MSA) and IEEE802.3u. With the hot pluggability, the module offers a flexible and easy way to be installed into SFP MSA compliant ports at any time without the interruption of the host equipments operating online. The Copper SFP transceivers use an integrated RJ-45 connector with transformer and PHY IC.

Features

• Hot-pluggable SFP footprint

• 155m/s support

• Industrial case operating temperature range: -40 to 85°C

• Fully metallic enclosure for low EMI

• Compact RJ-45 connector assembly

• It supports RX_LOS(Loss of Signal) function

• Compatible with IEEE 802.3u

• Access to physical layer IC via 2-wire serial bus

• 10/100BASE-TX to 100BASE-FX converter

Compatibility

Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
