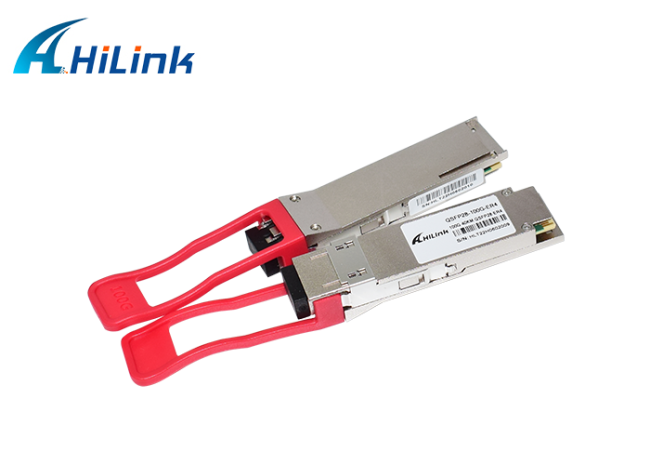

Compatible with HW 100G QSFP28 ER4 40KM SM Fiber Duplex LC Connector Fiber Transceiver Module
3 Years Warranty Compatible with HW 100G QSFP28 ER4 40KM SM Fiber Duplex LC Connector Fiber Transceiver Module
Features
Hot pluggable QSFP28 MSA form factor
Compliant to IEEE 802.3ba 100GBASE-ER4 Lite
Up to 40km reach for G.652 SMF with FEC
Single +3.3V power supply
Operating case temperature: 0~70℃
Transmitter: cooled 4x25Gb/s LAN WDM TOSA (1295.56, 1300.05, 1304.58, 1309.14nm) with hermetic packages
Receiver: 4x25Gb/s ROSA with hermetic packages
4x28G Electrical Serial Interface (CEI-28G-VSR)
Maximum power consumption 4.5W
Duplex LC receptacle
Applications
100GBASE-ER4 Ethernet Links
Infiniband QDR and DDR interconnects
Client-side 100G Telecom connections
The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM EA-DFB transmitters and high sensitivity receivers provide superior performance for 100Gigabit Ethernet applications up to 40km links with FEC.

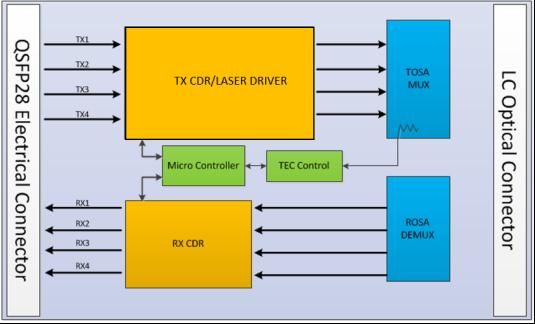

Transceiver Block Diagram
Optical Characteristics
| QSFP28 100GBASE-ER4 Lite | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Lane Wavelength | L0 | 1294.53 | 1295.56 | 1296.59 | nm | |
| L1 | 1299.02 | 1300.05 | 1301.09 | nm | ||
| L2 | 1303.54 | 1304.58 | 1305.63 | nm | ||
| L3 | 1308.09 | 1309.14 | 1310.19 | nm | ||
| Transmitter | ||||||
| SMSR | SMSR | 30 | dB | |||
| Total Average Launch Power | PT | 10.5 | dBm | |||
| Average Launch Power, each Lane | PAVG | -2.5 | 4.5 | dBm | ||
| Extinction Ratio | ER | 4 | dB | |||
| RIN20OMA | RIN | -130 | dB/Hz | |||
| Eye Mask{X1, X2, X3, Y1, Y2, Y3} | {0.25, 0.4, 0.45, 0.25, 0.28, 0.4} | |||||
| Receiver | ||||||
| Damage Threshold, each Lane | THd | -3.0 | dBm | 1 | ||
| Total Average Receive Power | 2.0 | dBm | ||||
| Receiver Sensitivity (OMA), each Lane | SEN_25G | -16.5 | dBm(OMA) | 2 | ||
| SEN_28G | -20.5 | -19 | dBm(Ave) | 3 | ||
| LOS Assert | LOSA | -26 | dBm | |||
| LOS Deassert | LOSD | -24 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | dB | |||

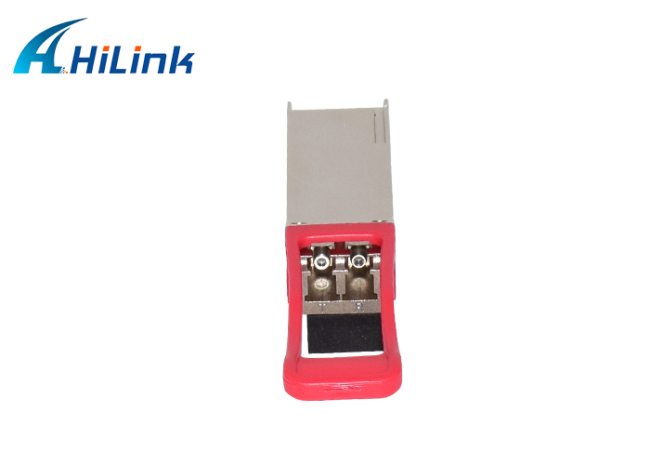

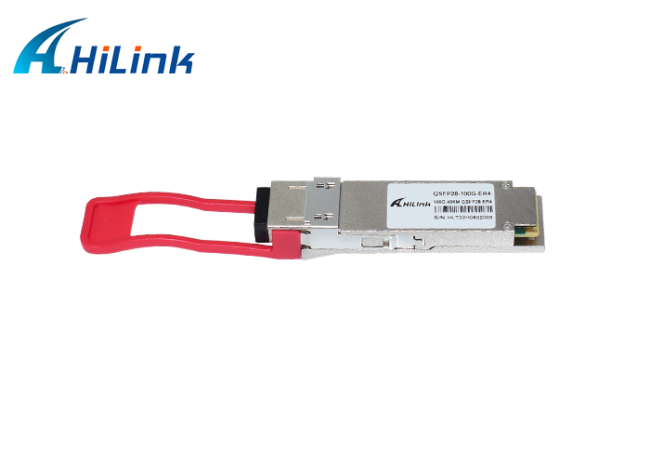

Real Picture
