Long Haul 1.25G 120KM DWDM C-Band ITU-T Dual LC SFP Modules DDM
Long Haul 1.25G 120KM DWDM C-Band Dual LC SFP Modules DDM
Hilink HLSCXX12L-DD120 DWDM 1.25Gbps SFP transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 120km.
Features
- All 100 GHz C-Band Wavelengths on the DWDM ITU Grid
- SFF-8472 MSA Compliant
- Cold Start up Wavelength Compliance
- Low Power Dissipation <1.3W Maximum
- -5ºC to 70ºC Operating Case Temperature
- Diagnostic Performance Monitoring of Transmit Power
- Laser Bias, Receive Power, LD&Module Temperature
- APD Bias Voltage, TEC Current
- Extended link budget with APD receiver technology
- OC48/STM-16 Long Reach 80km, 120km and 200km Versions
-
RoHS compliant and lead free
Details
| Item No. | DW-SFP-120 | Vendor Name | Hilink |
| Form Type | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | CWDM | Max Cable Distance | 120KM |
| Interface | LC duplex | Optical Components | DFB CWDM |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | 0~5dBm | Receiver Sensitivity | <-32dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
- DWDM up to 1.25GBASE-ZX
- Metropolitan and access systems
- IP routers and ATM core switches
-
DWDM for Metro Area Networks
1.25G DWDM Optical Transceiver series
| DWDM SFP (1.25G) | |||||
| HLSDXX12L-CD40 | 1.25G | CH17~CH61 | 40km | DWDM+PIN | 0~70℃ |
| HLSDXX12L-CD80 | 1.25G | CH17~CH61 | 80km | DWDM+PIN | 0~70℃ |
| HLSDXX12L-CD120 | 1.25G | CH17~CH61 | 120km | DWDM+APD | 0~70℃ |

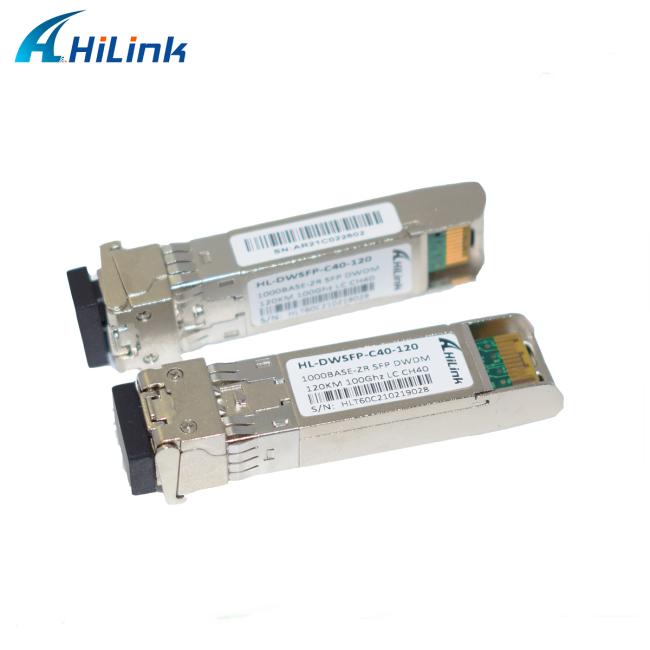

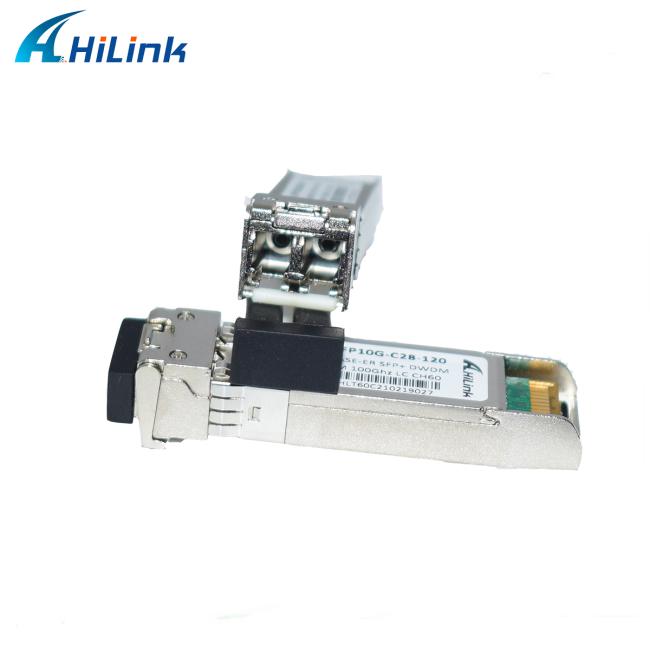

Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
