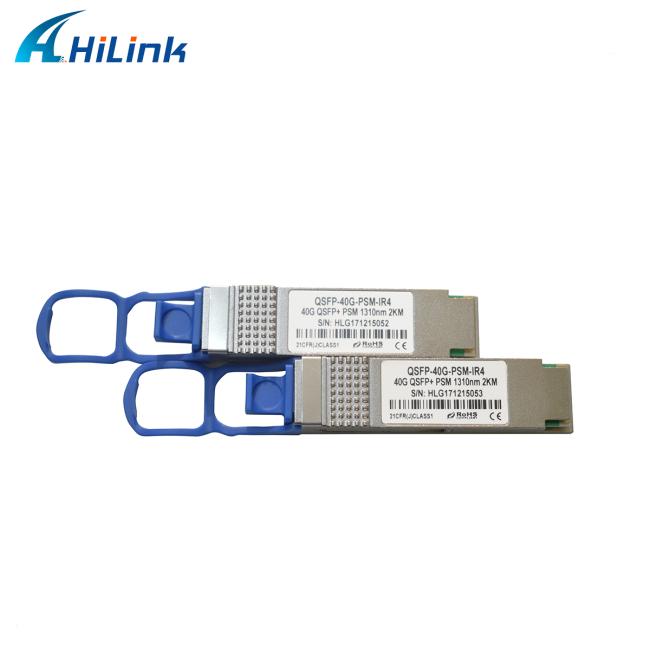

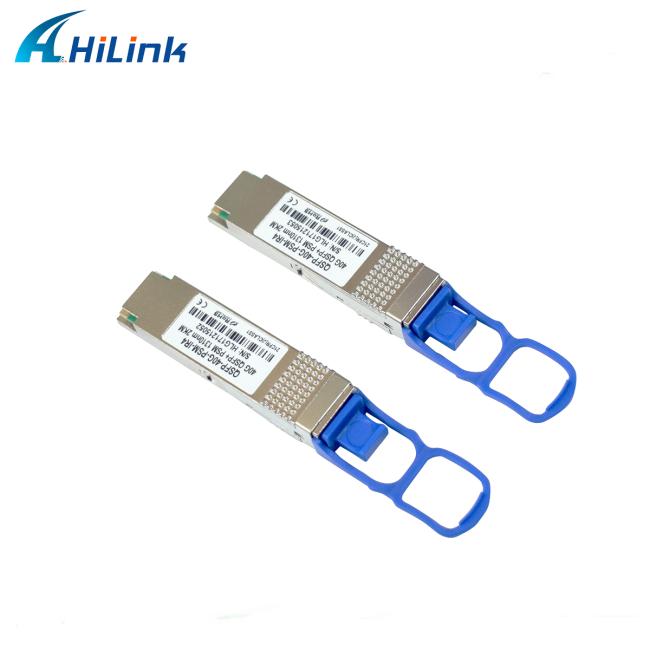

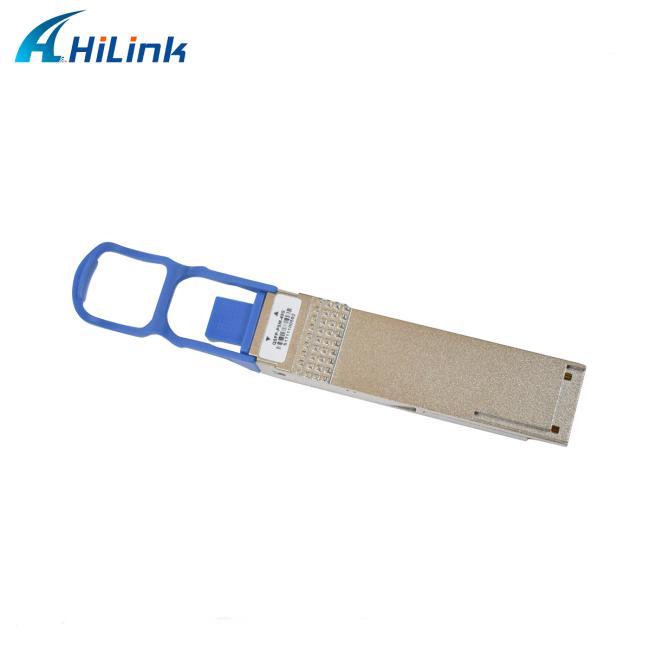

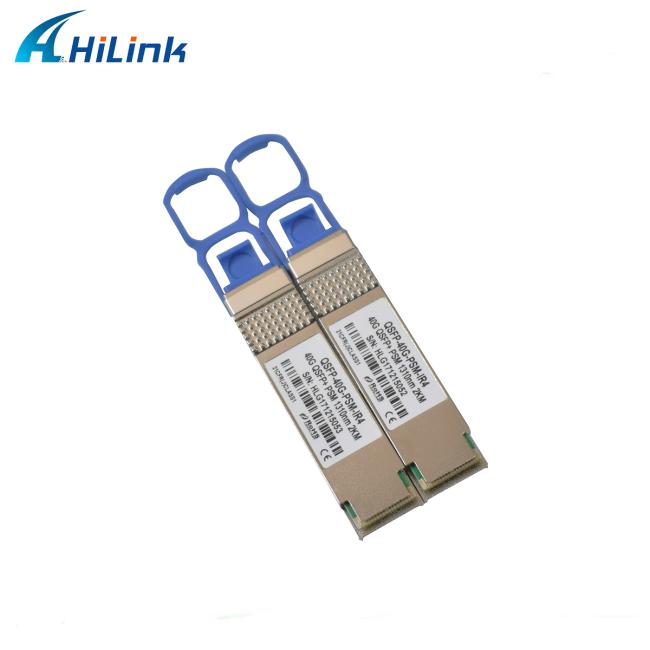

QSFP+ 40G IR4 2KM SMF/MMF 1270~1330nm PSM MPO Optical Transceivers

QSFP+ 40G Series

Features

• Full duplex 4 channel 1310nm parallel module

• Transmission data rate up to 11.3Gbit/s per channel

• SFF-8436 QSFP+ compliant

• Hot pluggable electrical interface

• Singlemode fiber with MPO connectors

• Differential AC-coupled high speed data interface

• 4 channels 1310nm FP array ,4 channels PIN photo detector array

• Maximum link length of 2km on G652 single mode fiber (SMF)

• Maximum power consumption 3.5W

• Housing isolated from connector ground

• Operating case temperature 0°C to +70°C

• 3.3V power supply voltage

• RoHS 6 compliant

Applications

• Infiniband Connectivity SDR/DDR/QDR

• 10/40 Gigabit Ethernet

• 2/4/8 Gbps Fiber Channel

• Data Centers and Storage Array

Compatibility

Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
