FTTX 1.25G 1310NM SFP Transceiver Module 40KM Telecom Equipment

Price Negotiable

Price: Need to negotiate

MOQ: 1 pieces

Delivery Time: 5-8 working day

Brand: Hilink

Product Description

Good quality 1.25G SFP 1310NM 40KM Telecom Equipment

Product Description

Optical Charactristics

III. Electrical Characteristics (TOP=25°C, Vcc=3.3Volts)
Parameter	Symbol	Min	Typ	Max	Unit	Ref.
Supply Voltage	Vcc	3.00		3.60	V
Supply Current	Icc		180	300	mA
Transmitter
Input differential impedance	Rin		100		Ω	2
Single ended data input swing	Vin, pp	250		1200	mV
Transmit Disable Voltage	VD	Vcc – 1.3		Vcc	V
Transmit Enable Voltage	VEN	Vee		Vee+ 0.8	V
Transmit Disable Assert Time				10	us
Receiver
Single ended data output swing	Vout, pp	300	400	800	mV	3
Data output rise time	tr			300	ps	4
Data output fall time	tf			300	ps	4
LOS Fault	VLOS fault	Vcc – 0.5		VccHOST	V	5
LOS Normal	VLOS norm	Vee		Vee+0.5	V	5
Deterministic Jitter Contribution	RXΔDJ			80	ps	6
Total Jitter Contribution	RXΔTJ			122.4	ps

Notes:

Class 1 Laser Safety.
Unfiltered, 20-80%.
Measured with DJ-free data input signal .In actual application, output DJ will be the sum of input DJ and ΔDJ.
Measured with PRBS 2⁷-1 at 10^-12 BER .

Product Features

Up to 1.25Gb/s dual data links

Hot-pluggable SFP footprint

1310nm FP laser transmitter

Duplex LC connector

Up to 40km on 9/125µm SMF

Metal enclosure for lower EMI

Single +3.3V power supply

Low power dissipation <700mW

Commercial operating temperature range: 0°C to +70°C ; Extensive temperature range: -20~80°C ; Industrial Temperature range: -40~85°C .

Application

1.25Gb/s 1000Base-LX Ethernet

1.06 Gb/s Fibre Channel

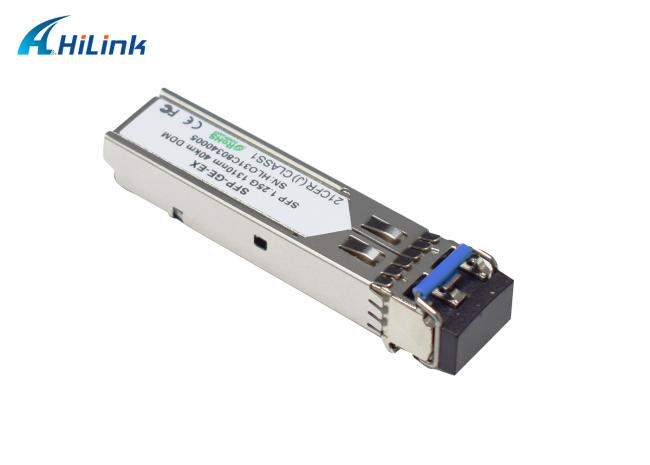

Real Picture

Package & Shipping

We provide safe and reliable packaging:Plastic box+Carton

Delivery time:2-5 working days

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.

Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
