Product Overview

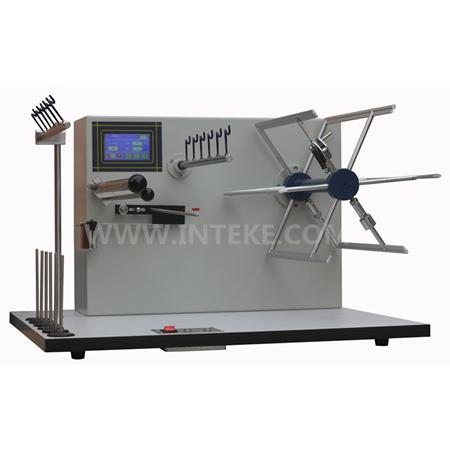

The YG086 Yarn Measuring Reel is a precision instrument designed for testing yarn linear density (count) in weaving, knitting, printing and dyeing, garment manufacturing, and textile R&D. Compliant with GB4743-95 standards, this reel ensures accurate measurement of yarn properties for quality control and production optimization.

Key Applications

Weaving & Knitting: Verify yarn consistency for fabric production.

Dyeing & Printing: Ensure uniform yarn density for color application.

Garment Industry: Quality assurance of raw materials.

Textile Labs: Research and development of yarn specifications.

http://www.inteke.com/product/YG086.htm

Technical Specifications

• Testing Spindles: 6 spindles for high-efficiency multi-sample testing.

• Reel Perimeter: 1000mm ±1mm (ISO-compliant measurement).

• Adjustable Speed: 30–280 RPM (stepless speed control for diverse yarn types).

• Programmable Rounds: 2–9999 pre-set winding cycles.

• Horizontal Travel: 35mm ±0.5mm (precision yarn alignment).

• Tension Range: 0–100 cN (adjustable single-yarn tensility control).

• Power Supply: AC 220V, 50Hz, 95W (low-energy operation).

• Dimensions: 780mm*660mm*480mm (compact industrial design).

• Weight: 47kg (durable steel construction).​
