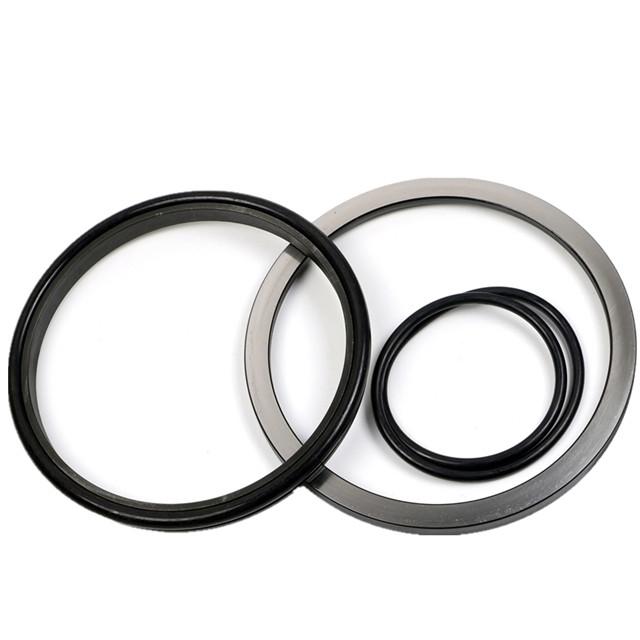

Steel + NBR60 209-27-00160 Floating Oil Seal
Steel + NBR60 209-27-00160 Floating Oil Seal
Floating Oil Seal features
Floating Oil Seal are precision components, the smallest of material and design details can influence the quality.The metal
ring is processed by CNC machine,the fine precision increase O-ring gripping ability,eliminating O-ring sliding,ensure runs
smoothly.
Floating Oil Seal Introduction
| OEM part# | 209-27-00160 Floating Oil Seal |
| One set | Consists of two metal sealing rings and two rubber rings |
| Material | 100CR6 steel + NBR60 |
| Warranty | 18 months |
| Stock | Available |
| Package | Shrink films + inner box + standard export carton + wood pallet + wood box |
| Appliion | Constuction machinery ,farm machinery ,coal mining machinery |
Floating Oil Seal Appliion
-Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling
Method of installation:
1. Using specialized tools installation: The pressure will apply to the O-ring directly. As shown, the special tool is mounted between the metal floating ring and the rubber ring, toward the seat hole, the rubber ring is evenly pressed into the hole.
2. Other installation methods: One auxiliary O-ring is fixed between the conical ring surface of the floating oil seal and sealing O-ring (as shown). The ring of the floating oil seal is applied uniformly by pressure and the auxiliary O-ring braces the sealing O-ring to ensure the other correct mounting positions.
Floating Oil Seal Details
Komatsu, , Hitachi, Kubota, Kobelco, Danapac, Goetze, Trelleborg...
| model# | Bottom roller | Carrier Roller | Front idler | Final Drive |
| PC60 | 110-30-00085 | 140-30-00040 | 141-30-00610 | |
| PC200 | 20Y-30-00040 | 20Y-30-00090 | 10Y-30-00100 | 150-27-00026 |
| E200B | 1M8746 | 8E5609 | 5P0204 | |
| E320 | 9W7220 | 8E5609 | 9W7225 | |
| D60 | 141-30-00616 | 141-30-00616 | 141-30-00610 | 141-27-00015 |
| D85ESS-1 | 154-30-00832 | 154-30-00832 | 154-30-00832 | 192-27-00022 |
| D3 | 9E6690 | 9E7216 | 9E6691 |
-You're the factory?
Yes, we are a 13 years factory in Hubei Province, China
- How do you control the quality?
Each seal is 100% inspected in every process before exported
- How long to make the shipment?
In three days with stocks, 15-30 days according to the order qty.
- Can i buy one to test?
Yes, we offer a trial order and sample order for your Quality Evaluation.
