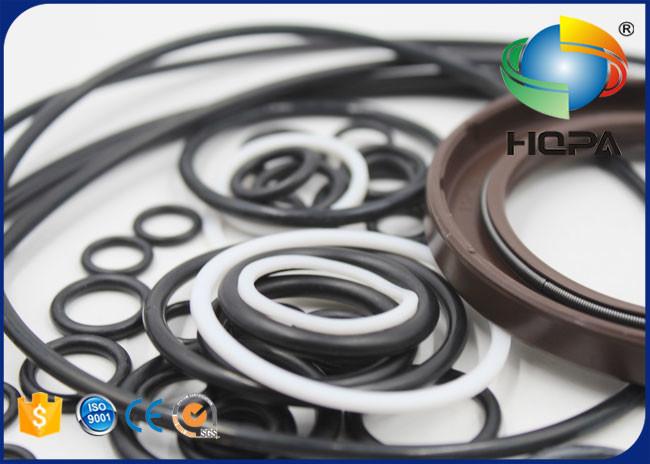

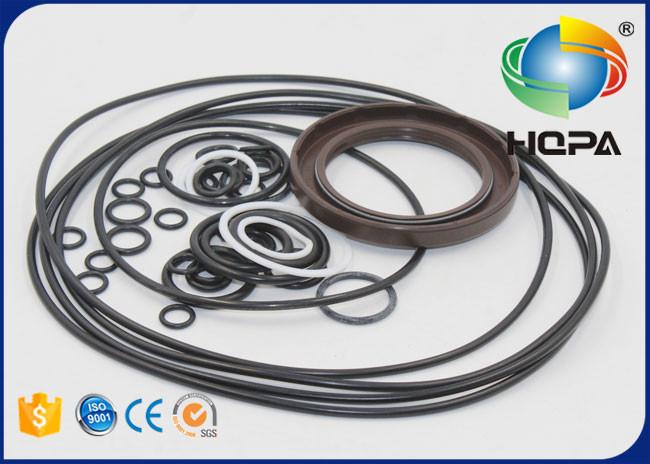

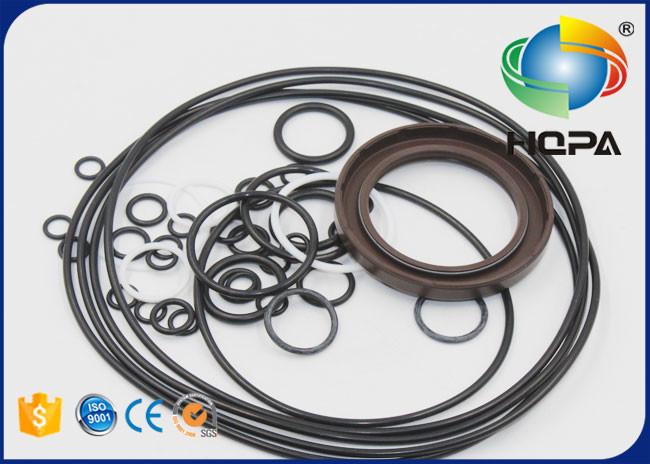

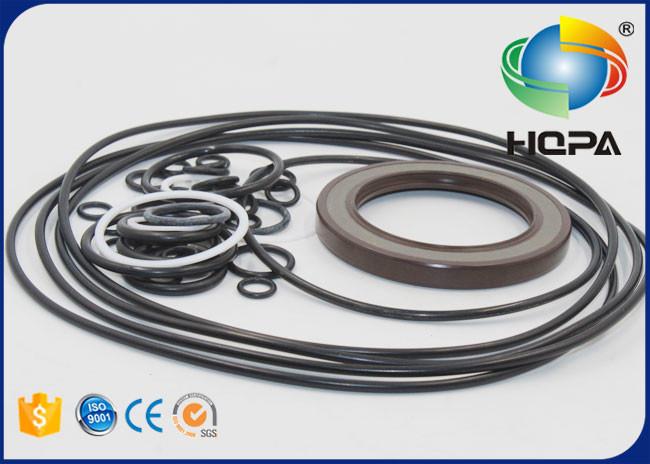

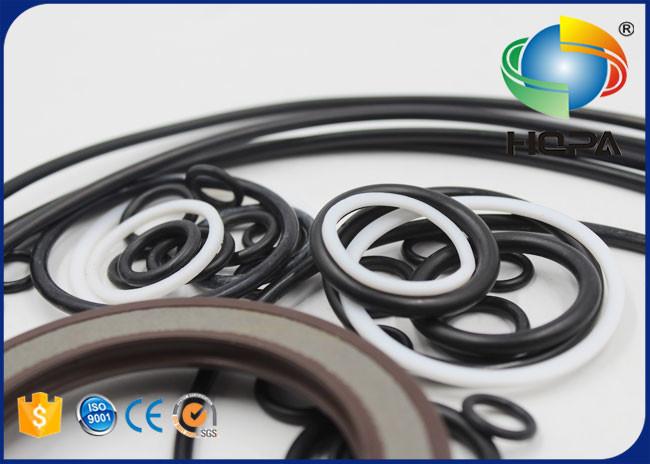

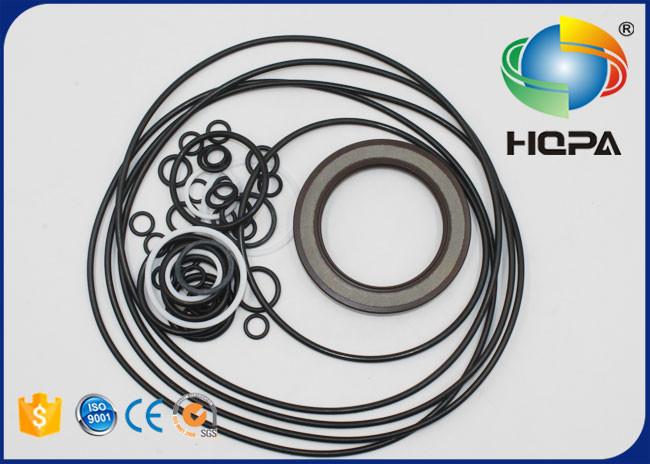

XJBN-01123 XJBN01123 Hydraulic Main Pump Seal Kit for Hyundai R290LC-7
Price:
negotiation
MOQ:
Negotiable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
HQPA/OEM
Product Description
XJBN-01123 XJBN01123 Hydraulic Main Pump Seal Kit for Hyundai R290LC-7
1.Product Description:
|
The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | XJBN-01123 XJBN01123 Hydraulic Main Pump Seal Kit for Hyundai R290LC-7 R290LC-7A |
| Product style | Hydraulic Main Pump Seal Kit / Main Pump Seal Kit |
| Part No. | XJBN-01123 XJBN01123 |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion |
Hyundai R290LC-7 R290LC-7A |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
Part Number: XJBN-01123 XJBN01123
Group: Hydraulic Main Pump Seal Kit
Fit for model: Hyundai R290LC-7 R290LC-7A
Contact: Mr. Sum Huang
Whatsapp: +8618902494641
www.excavatorsealkit.com
.

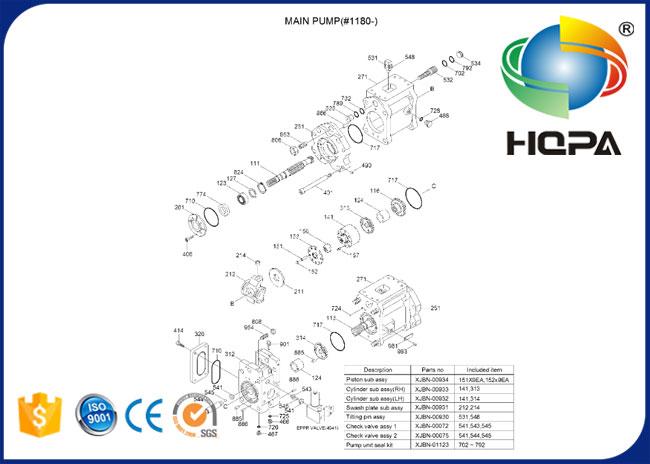

4.Related parts
| Part No | Parts name | Part No | Parts name |
| 31N8-10060 | MAIN PUMP | XJBN-00963 | MAIN PUMP UNIT |
| XJBN-00953 | SHAFT(F)-DRIVE | XJBN-00952 | SHAFT(R)-DRIVE |
| XJBN-00951 | GEAR-1ST | XJBN-00950 | BEARING-ROLLER |
| XJBN-00949 | BEARING-NEEDLE | XJBN-00081 | SPACER-BEARING |
| XJBN-00948 | BLOCK-CYLINDER | XJBN-00947 | PISTON |
| XJBN-00946 | SHOE | XJBN-00945 | PLATE-SET |
| XJBN-00083 | BUSHING-SPHERICAL | XJBN-00944 | SPRING-CYLINDER |
| XJBN-00085 | PLATE-SHOE | XJBN-00943 | PLATE-SWASH |
| XJBN-00071 | BUSHING-TILTING | XJBN-00942 | SUPPORT-SP |
| XJBN-00941 | COVER(F)-SEAL | XJBN-00088 | CASING-PUMP |
| XJBN-00940 | BLOCK-VALVE | XJBN-00939 | PLATE(R)-VALVE |
| XJBN-00938 | PLATE(L)-VALVE | XJBN-00937 | COVER |
| XJBN-00090 | SCREW-HEX SOC HD | XJBN-00029 | SCREW-HEX |
| XJBN-00160 | SCREW-SOCKET | XJBN-00030 | PLUG |
| XJBN-00936 | PLUG | XJBN-00031 | PLUG |
| XJBN-00032 | PLUG | XJBN-00956 | PIN-TILTING |
| XJBN-00955 | PISTON-SERVO | XJBN-00092 | STOPPER(L) |
| XJBN-00093 | STOPPER(S) | XJBN-00859 | SEAT |
| XJBN-00860 | STOPPER | XJBN-00861 | STOPPER |
| XJBN-00038 | BALL-STEEL | XJBN-00360 | PIN-FEED BACK |
| XJBN-00918 | O-RING | XJBN-00095 | O-RING |
| XJBN-00096 | O-RING | XJBN-00044 | O-RING |
| XJBN-00045 | O-RING | XJBN-00233 | O-RING |
| XJBN-00046 | O-RING | XJBN-00912 | O-RING |
| XJBN-00906 | SEAL-OIL | XJBN-00099 | RING-BACK UP |
| XJBN-00100 | BACK-UP RING | XJBN-00101 | NUT |
| XJBN-00051 | NUT | XJBN-00102 | RING-SNAP |
| XJBN-00103 | PIN-VALVE PLATE | XJBN-00054 | PIN-SPRING |
| XJBN-00104 | BOLT-EYE | XJBN-00954 | SCREW-SET |
| XJBN-00106 | SCREW-SET | XJBN-00156 | NAME PLATE |
| XJBN-00455 | PIN | XJBN-00964 | REGULATOR ASSY |
| XJBN-00965 | GEAR PUMP ASSY | XJBN-00014 | EPPR VALVE ASSY |
| XJBN-00934 | PISTON ASSY | XJBN-00933 | CYLINDER(R) ASSY |
| XJBN-00932 | CYLINDER(L) ASSY | XJBN-00931 | SWASH PLATE ASSY |
| XJBN-00072 | CHECK VALVE ASSY 1 | XJBN-00075 | CHECK VALVE ASSY 2 |
| XJBN-00930 | TILTING PIN ASSY | XJBN-01123 | SEAL KIT-PUMP UNIT |
| XJBN-00002 | GEAR PUMP | XJBN-00520 | GEAR PUMP |
| XJBN-00847 | GEAR PUMP | XJBN-00339 | POPPET |
| XJBN-00521 | POPPET | XJBN-00338 | SEAT |
| XJBN-00522 | SEAT | XJBN-00338 | SEAT |
| XJBN-00337 | SEAT-SPRING | XJBN-00523 | RING |
| XJBN-00336 | SPRING | XJBN-00524 | SPRING |
| XJBN-00350 | SCREW-ADJUST | XJBN-00525 | SCREW-ADJUST |
| XJBN-00334 | NUT-LOCK | XJBN-00333 | CHN-GEAR |
| XJBN-00526 | CHN-GEAR | XJBN-00660 | CHN-GEAR |
| XJBN-00332 | GEAR-DRIVE | XJBN-00331 | GEAR-DRIVEN |
| XJBN-00330 | FILTER-RETURN | XJBN-00349 | CHN |
| XJBN-00328 | SOCKET-FLANGE | XJBN-00327 | SOCKET-FLANGE |
| XJBN-00348 | SOCKET-FLANGE | XJBN-00030 | PLUG |
| XJBN-00325 | RING | XJBN-00041 | O-RING |
| XJBN-00045 | O-RING | XJBN-00283 | O-RING |
| XJBN-00324 | RING-SNAP | XJBN-00795 | PIN |
Welcome to contact us, we can provide high quality and the best price!
