ASTM A210 A210m Medium Seamless Carbon Steel Tube For Boilers / Chemical
ASTM A210 A210m Medium Seamless Carbon Steel Tube For Boilers / Chemical
Quick Detail:
Standard: ASTM A210/A210M (ASME SA210/SA210M)
Seamless Medium-Carbon Steel Boiler and Superheater Tubes
Size:(mm)
Out Dimensions: 12.7mm-114.3mm
Wall Thickness: 0.8mm-15mm
Length: 5-25mm
Applications:
It is used for boiler and boiler flue tubes. Including safe end, vault and supporting tube and super heater min wall thickness seamless medium--carbon steel tube
Chemical Requirements:
| STANDARD | GRADE | CHEMICAL COMPOSITION | |||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | ||
| ASTM A210 | A-1 | ≤0.27 | ≥0.10 | ≤0.93 | ≤0.035 | ≤0.035 | |||||
| C | ≤0.35 | ≥0.10 | 0.291.06 | ≤0.035 | ≤0.035 | ||||||
Mechanical Properties:
| Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) |
| A-1 | ≥255 | ≥415 | 30 |
| C | ≥275 | ≥485 | 30 |
Wall Thickness Tolerance
|
ASME SA-210 |
OD | WT | WT Tolerance |
| <=38.1 | / | +20%,-0% | |
| >38.1 | / | +20%,-0% |
Description:
ASTM A210 is the standard covers seamless medium-carbon steel boiler and superheater tubes.ASTM A210 also covers minimum-wall-thickness, tubing sizes, boiler flues including safe ends, arch and stay tubes. ASTM A210 provides tensile and hardness properties but only applicable to certain size limitations. Material manufacturing shall be killed. Tubes shall be made by seamless process, marked as either hot-finished or cold-finished. Surface condition shall be specifically stated in the order. Chemical composition shall conform to the requirements. Elemental composition other than listed here shall not be permitted. Tension test, flattening test, flaring test, hardness test, hydrostatic or nondestructive electric test shall be made on specimens. Superheater tubes shall be formed without defects and shall withstand expansion, beading, forging, welding, and bending.
High Quality Package
1)In bundle with strip
2)Packing by plastic bag then strip
3)Client' requirement
Container:25tons/container for pipe with usual outer diameter.For 20”container the max length is 5.8m
For 40” container the max length is 11.8m
Bulk carrier:It is no requirements to the length of the pipe,but its booking space time is long

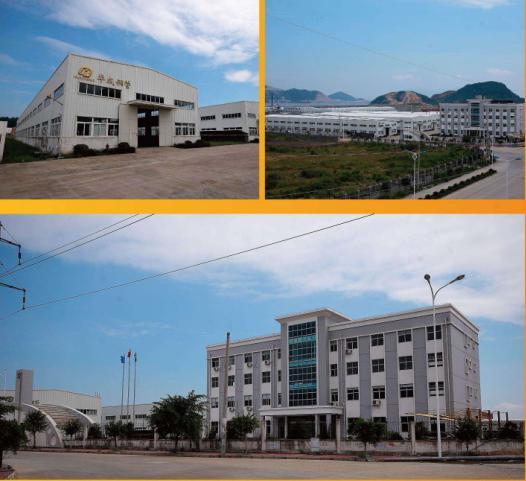

Factory Pictures

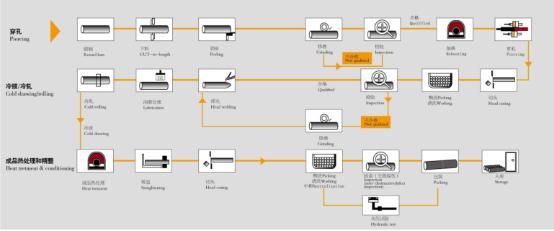

Production Process

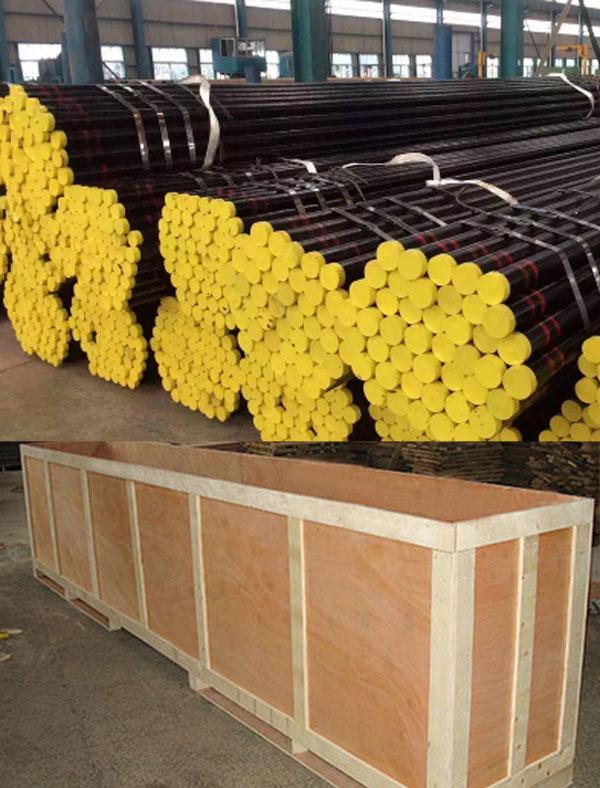

Package
